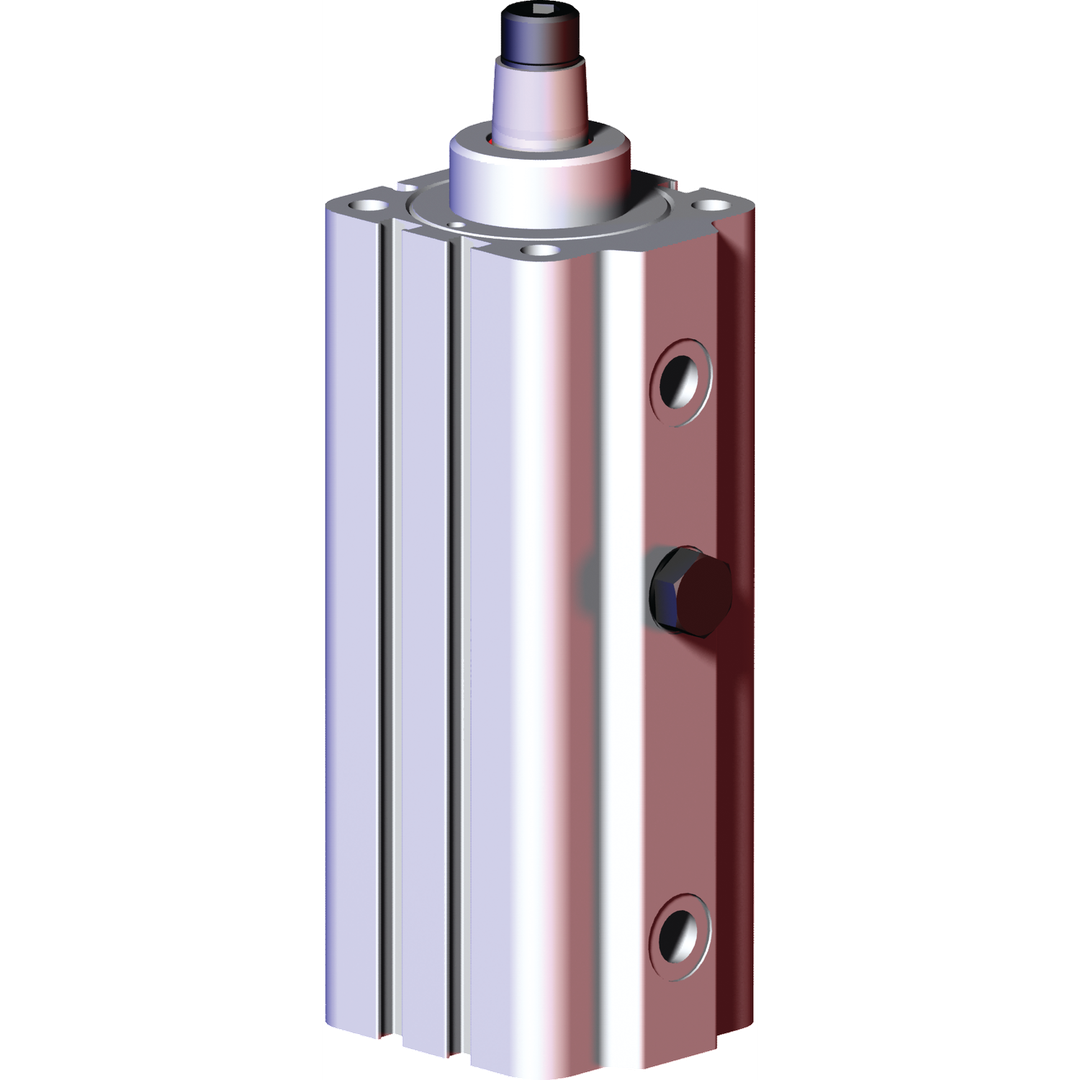

89R63-025-2 - PNEUMATIC SWING CLAMP
89R63-025-2 - PNEUMATIC SWING CLAMP
Email product details
Visit Product Series:
Pneumatic Swing Clamps-89R
Request Quote
Configure with accessories
Technical Details
CAD / Configure
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
9.63
Weight (lb)
6.2
Product Application
CLAMPING
Technical Details
Air Consumption (per double stroke at 7 psi) (in³)
0.072
Clamping Force @ 5Bar[72Psi] (lbf.)
217.0
Cylinder Bore (in)
2.48
Stroke (in)
2.3
Stroke during rotation (in)
1.32
Air Port size
G-1/4
Mount
Block style
Supplied?
No
Swing Direction
LH, RH, Straight
Product Information
Accessories
8EA-109-1|CABL-010|CABL-013|89R63-00|8JG-220-1|8MA-089-1|8MW-023-1|8MA-066-1
Brand
DESTACO
Product Type
Pneumatic Swing Clamp
Sensor Ready
Yes
Spindle Included?
No
