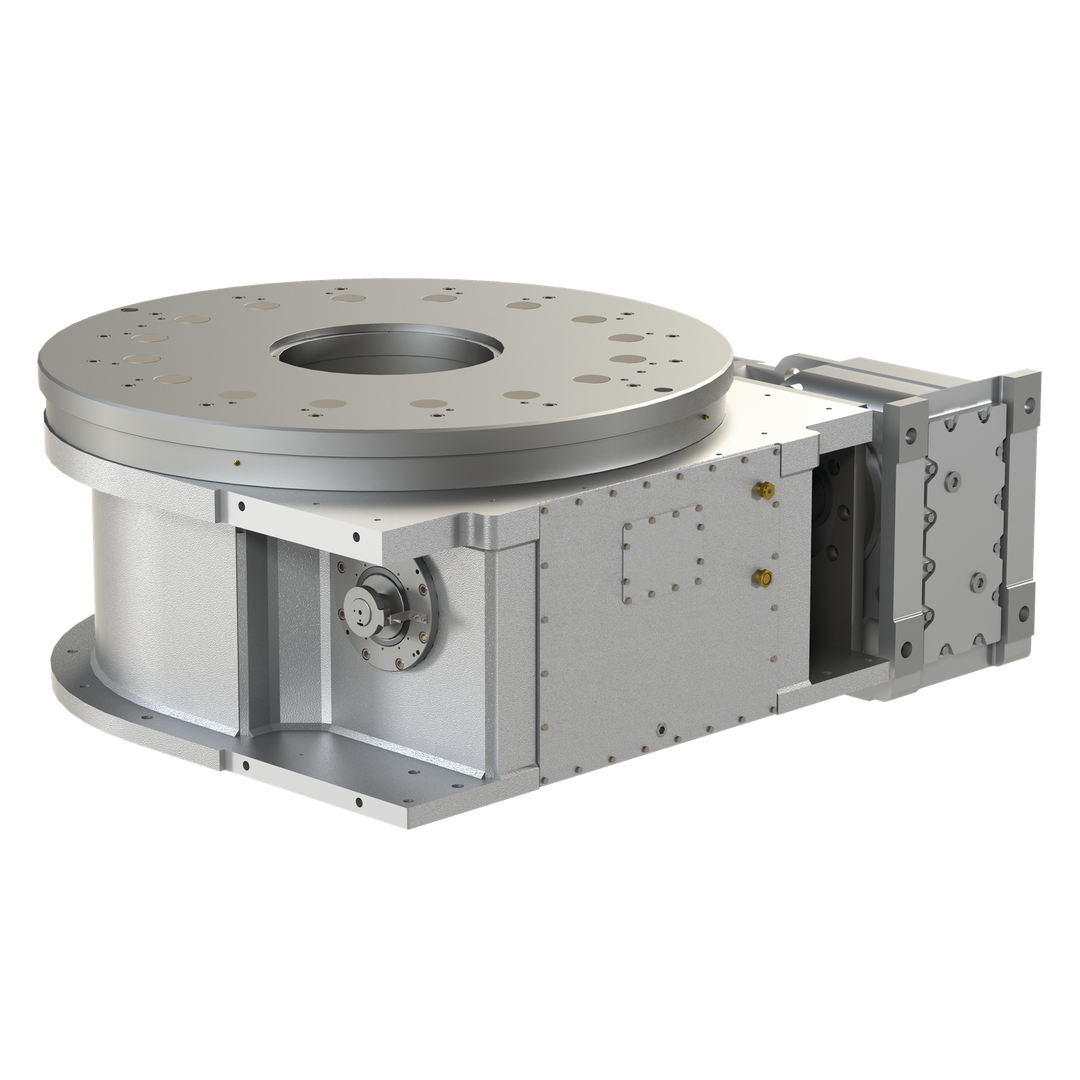

950E4H96-330 - E-Series - Heavy Duty Index Drives

Dimensions / Applications

Technical Details

• Center Distance (in)9.6456692913
• Center Thru Hole Diameter (in)4.13
• Height To Mounting Surface (in)19.6850393701
• Internal Inertia (lb-in²)142900.0
• Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)1251.0
• Maximum Torque (in-lb)134777.0
• Mounting Surface Diameter (in)37.0078740157
• Output Overturning Moment Capacity (in-lb)977500.0
• Output Radial Capacity (lb)52600.0
• Output Thrust/Axial Capacity (lb)75850.0

Product Information

• Base Model950E4H96-330
• BrandCamco
• Product TypeHeavy Duty Index Drive
• Spindle Included?No
