BODYBUILDER™ HEAVY DUTY MID-MOUNTS FOR EXTRUSION CLAMPING – ROBOTIC END EFFECTORS

Default Image

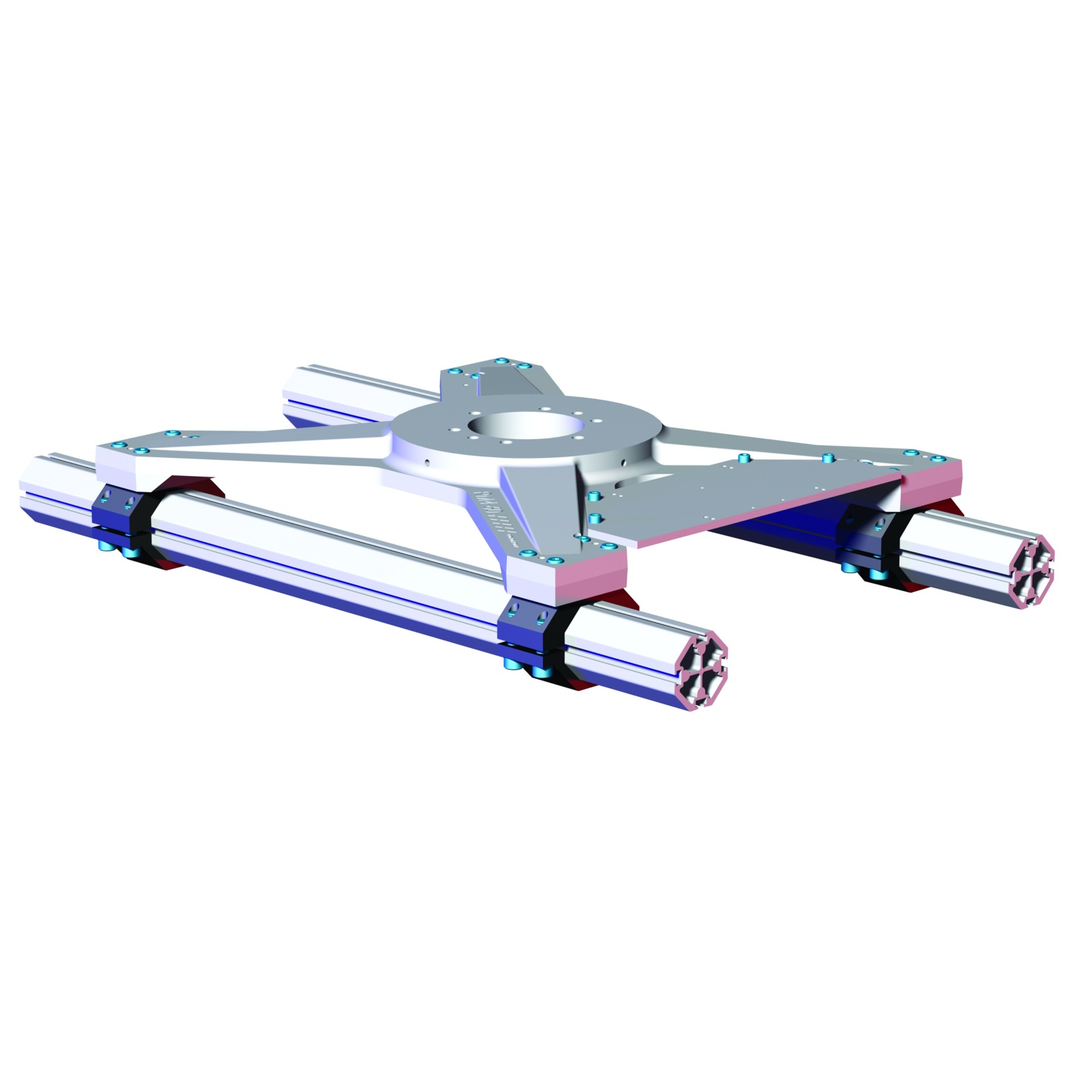

RM4-45-R13 - Mid Mount Assembly - R13

Unit View

Dimensions / Applications

  • Height (in)4.63
  • Length (in)22.05 in
  • Weight (lb)29.9 lb
  • Width (in)19.29 in

Technical Details

  • Maximum Static Product Load (lb)1000.0
  • Robot Interface Bolt PatternR13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep [ en_US ] ; R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep [ fr_FR ] ; R13:Lochkreis Ø 125/160 , 110 mm Pilot, 5.5mm tief [ de_DE ]
  • Supplied?No
  • Tube Size45B

Product Information

  • BrandDESTACO
  • MaterialAluminum
  • Product TypeMid Mount Assembly
