BODYBUILDER™ MID-MOUNTS WITH HOLE PATTERNS FOR EXTRUSION CLAMPING – ROBOTIC END EFFECTORS

DESTACO - Workholding Equipment & Automation Tooling Solutions
Robotic Tooling
Bodybuilder Octagonal Tooling
Bodybuilder End Effector-Mid-Mounts

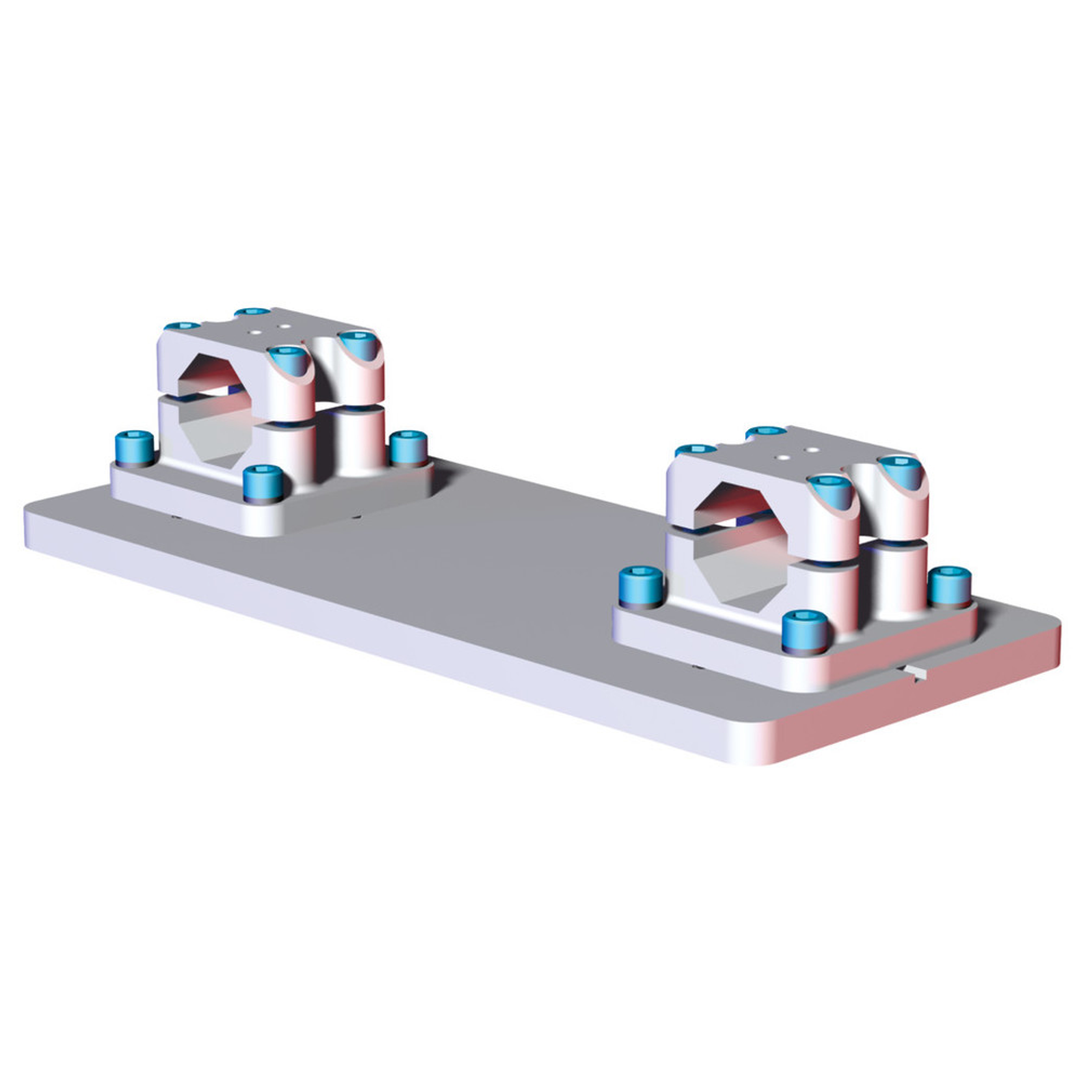

BM1-45-DE-R17 - 45mm Double Extrusion Mid Mount Assembly - R17

BM1-45-DE-R17 - 45mm Double Extrusion Mid Mount Assembly - R17

Visit Product Series:

Bodybuilder End Effector-Mid-Mounts

Unit View

Imperial

Metric

Dimensions / Applications

Length (in)16
Weight (lb)11.1

Technical Details

Robot Interface Bolt PatternR17:Lochkreis Ø 160mm [ de_DE ] ; R17: 160mm Bolt Circle [ en_US ] ; R17: 160mm Bolt Circle [ fr_FR ]
Supplied?No
Tube Size45B

Product Information

BrandDESTACO
MaterialAluminum
Product TypeDouble Extrusion Mid Mount Assembly
Spindle Included?No
