Manual Clamps

Steel toggle clamp with 3 times the capacity of our legacy models with a longer handle with greater hand clearance, Toggle Lock Plus capability, and flanged base with U-bar.

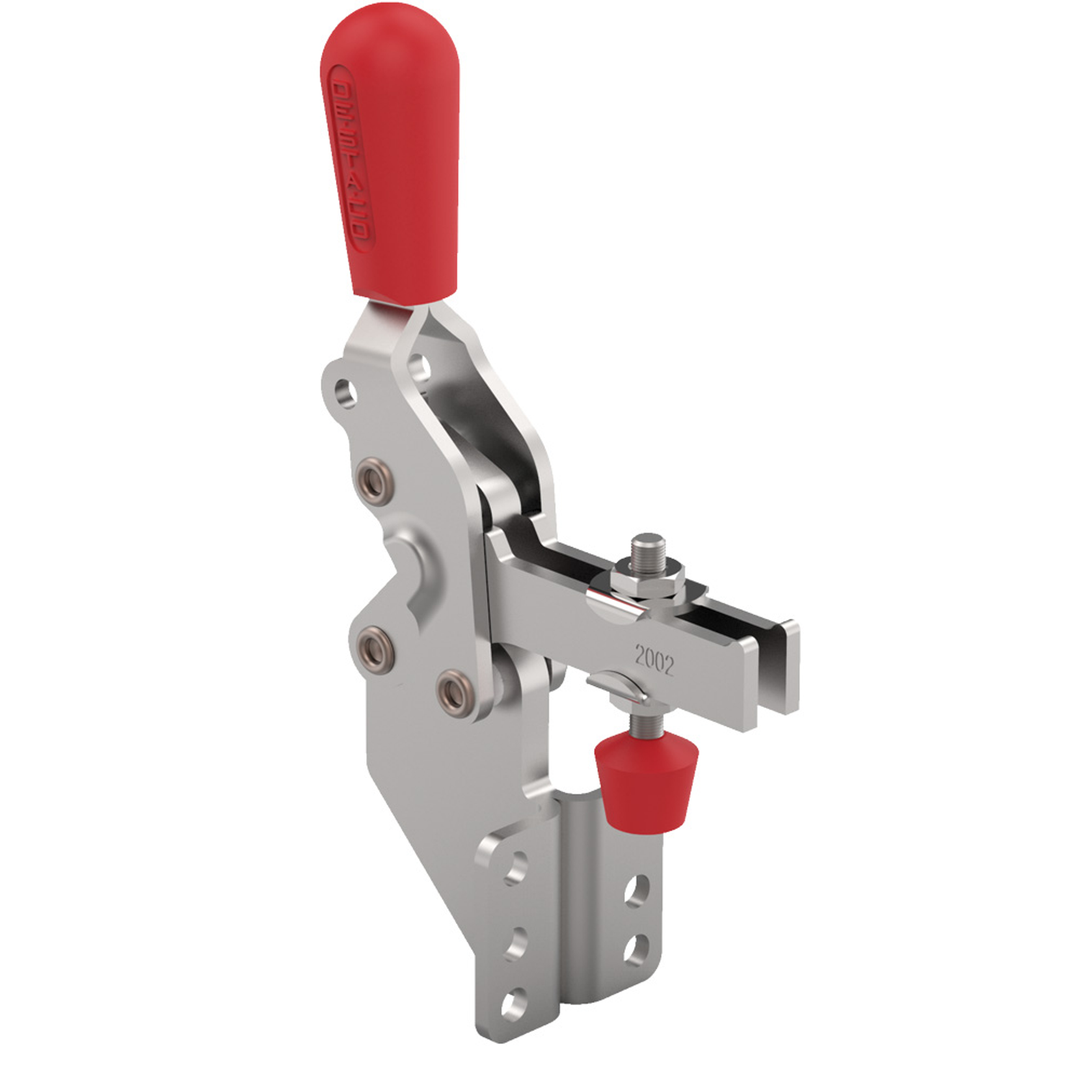

2002-UF

New generation toggle clamp with 3 times the capacity of our legacy models, along with front mount base.
  • Front Mount Base
  • Longer handle with greater hand clearance
  • Longer clamp arm
  • Spindle contacts workpiece vertically
Visit Product Series:
CAD

Product Details Unit View:
Height Under Clamp Arm (in) 0.95
Weight (lb) 0.66
Clamp Arm Length (in) 1.93
Maximum Holding Capacity (lbf) 600.0
Weight (kg) 0.3
Clamp Arm Length (mm) 49.0
Height Under Clamp Arm (mm) 24.1
Maxmum Holding Capacity (N) 2700.0
Duty Cycle 2
Application - Assembly Excellent/High
Handle Opening (+10°) 66.0
Application - Food Processing Not Recommended
Flanged Washers 215105
Standard Material Steel
Application - Wood-Working Excellent/High
Application - Closures Excellent/High
PublishedDate 1670534766000
Service Environment Normal
Application - Checking Fixtures Excellent/High
Clamp Bar Opening (+10°) (degrees) 75.0
Handle Vertical
Application - Welding Fair/Medium
Base Mounting Style Front Base Mount
Accomodates Workpiece Variation No
Product Series 2002/2007
Handle Color Red
Product Type Standard
Clamp Arm Style U-Bar
Product Function Clamping
Toggle Lock Plus No
Spindle Assembly 215208-M
Application - Machining Poor/Low
Product Accessories
215208-M
SPINDLE M6X45 WITH HEX JAM NUT
