Hold Down Clamps

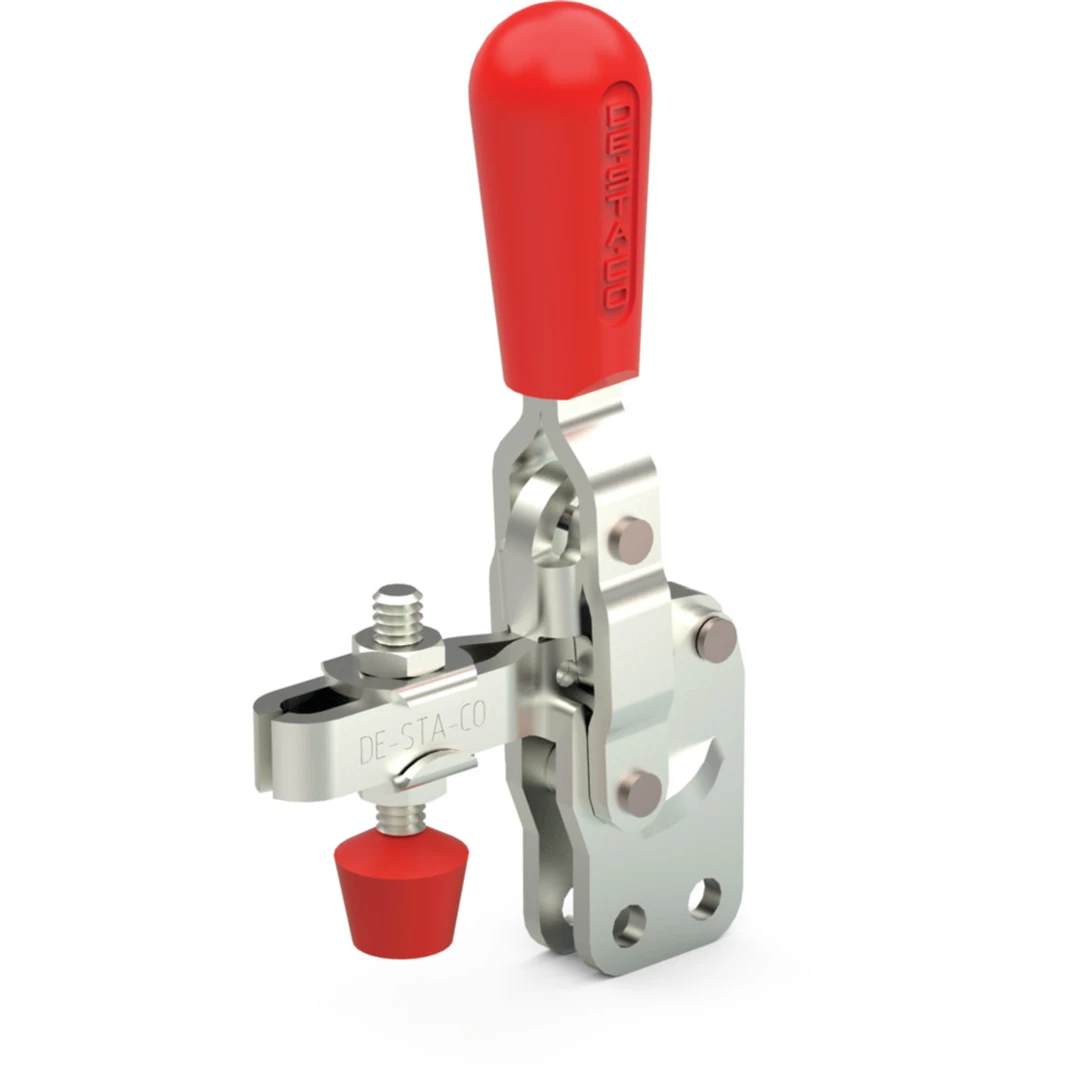

Popular toggle clamp series with ergonomic handle grip with neoprene spindle, straight base, and U-bar.

202-UB

One of the most popular series in our line of vertical hold-down clamps. Ideal for use in checking fixtures. Models ending in "-L"" feature an open U-bar for attachments of arm extensions."
  • Supplied with neoprene spindle.
  • Ergonomic handle grip included
Visit Product Series:
CAD

Product Details Unit View:
Height Under Clamp Arm (in) 1.13
Clamp Arm Length (in) 1.73
Weight (lb) 0.35
Maximum Holding Capacity (lbf) 200
Clamp Arm Length (mm) 43.9
Maxmum Holding Capacity (N) 890
Weight (kg) 0.16
Height Under Clamp Arm (mm) 28.7
Service Environment Normal
Duty Cycle 1
Application - Machining Not Recommended
Application - Assembly Excellent/High
Accomodates Workpiece Variation No
Product Series 202
Product Type Standard
Product Function Clamping
Application - Wood-Working Excellent/High
Toggle Lock Plus No
Application - Welding Poor/Low
Clamp Bar Opening (+10°) (degrees) 105
Clamp Arm Style U-Bar
Handle Vertical
Flanged Washers 215105
Spindle Assembly 202208-M
Base Mounting Style Straight
Standard Material Steel
Application - Food Processing Fair/Medium
Application - Checking Fixtures Excellent/High
Application - Closures Excellent/High
Handle Opening (+10°) 65
Requires Articulation yes
Product Accessories
202208-M
SPINDLE M6X35 WITH HEX JAM NUT
