247-U
247-U

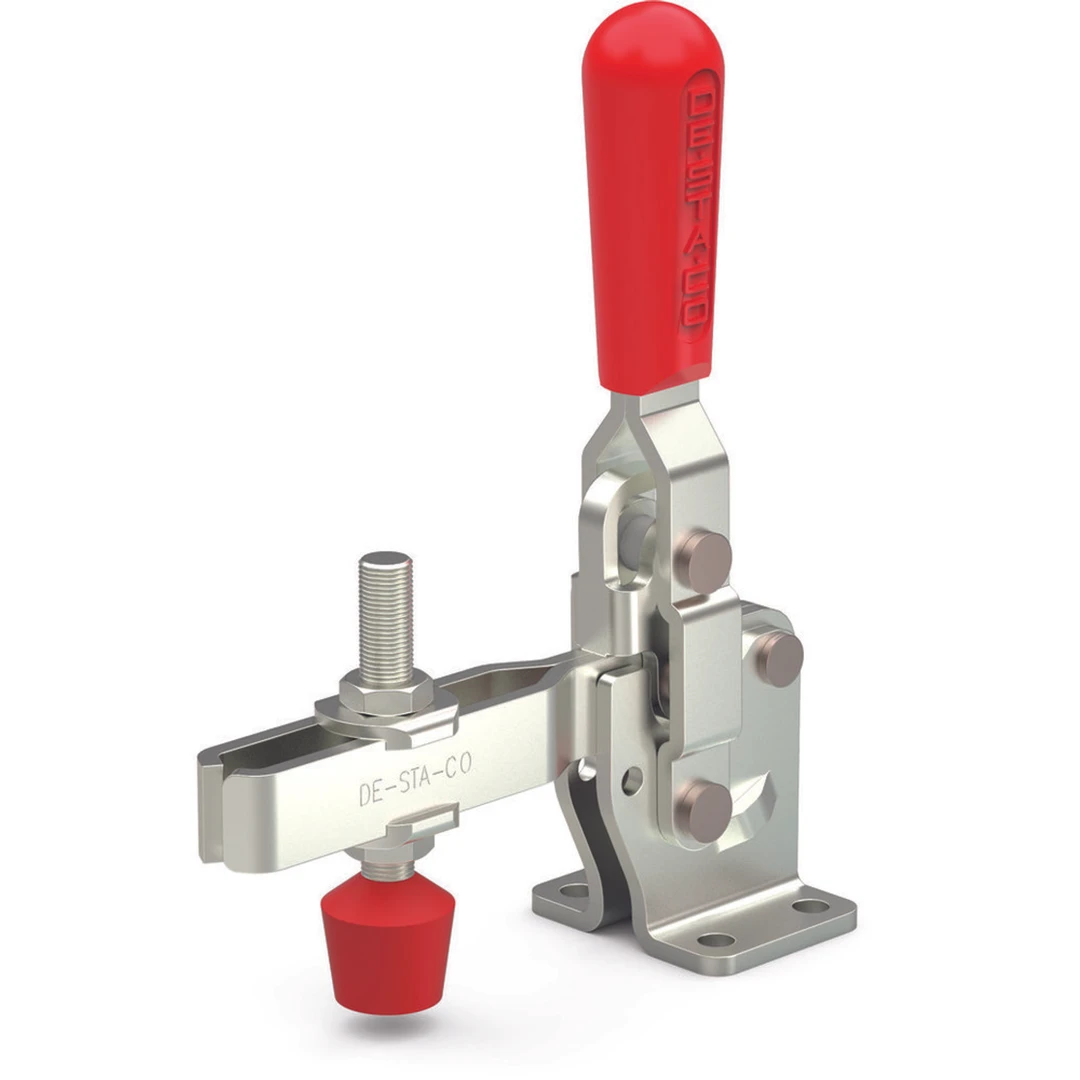

Heavy duty vertical hold down clamp offers bar guide feature for lateral stability
Hardened steel bushings
Larger bar guides for greater lateral stability
Supplied with neoprene spindle.
Ergonomic handle grip included
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Clamp Arm Length (in)
4.87
Weight (lb)
2.36
Height Under Clamp Arm (in)
2.0
Maximum Holding Capacity (lbf)
1000.0
Clamp Arm Length (mm)
123.7
Weight (kg)
1.07
Height Under Clamp Arm (mm)
50.8
Maxmum Holding Capacity (N)
4400.0
Application - Machining
Poor/Low
Base Mounting Style
Flange
Handle
Vertical
Flanged Washers
247109
Product Series
247/267
Application - Welding
Fair/Medium
Application - Food Processing
Not Recommended
Clamp Arm Style
U-Bar
Application - Wood-Working
Fair/Medium
Handle Opening (+10°)
67.0
Toggle Lock Plus
No
Service Environment
Normal
Requires Articulation
yes
Application - Checking Fixtures
Excellent/High
Clamp Bar Opening (+10°) (degrees)
120.0
Product Type
Standard
Product Function
Clamping
Application - Assembly
Excellent/High
Standard Material
Steel
Application - Closures
Poor/Low
Duty Cycle
2
Accomodates Workpiece Variation
No
Spindle Assembly
247208-M
Product Accessories
247208-M
SPINDLE M12X80 WITH HEX JAM NUT
