Pull Action, Manual Latch Clamps for Molding & Assembly Applications
DESTACO - Workholding Equipment & Automation Tooling Solutions
MANUAL, PNEUMATIC & POWER CLAMPING SYSTEMS
Toggle Clamps - Manual & Push-Pull Toggle Clamps | DESTACO
Pull Clamps - Pull Action Latch Clamps | DESTACO

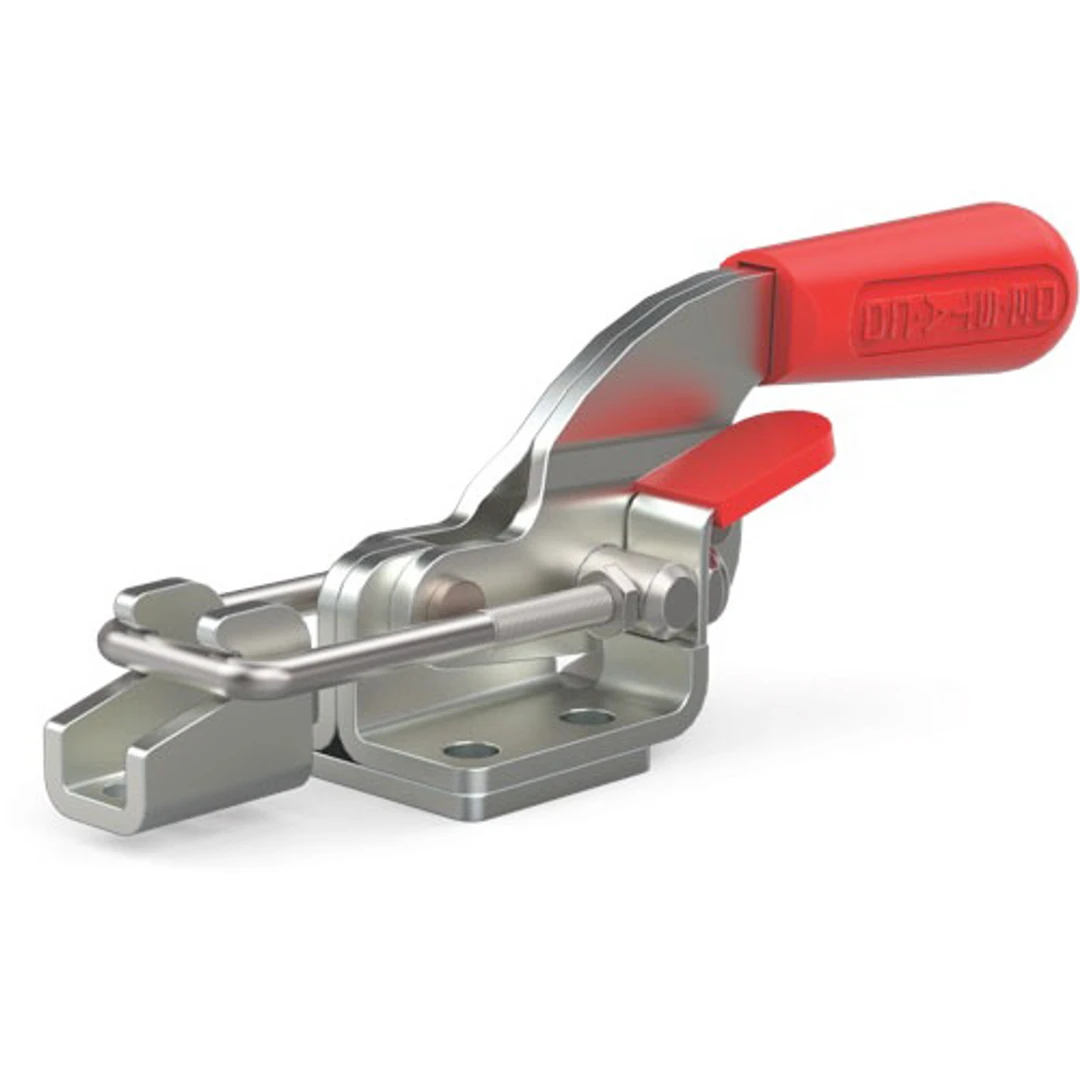

Pull Action Latch Clamps 323-331-341 (Series)
331
331
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Drawing Movement without Thumb Control (in)
1.78
Max Hook Adjustment (in)
0.59
Weight (lb)
0.55
Maximum Holding Capacity (lbf)
700.0
Drawing Movement without Thumb Control (mm)
44.5
Weight (kg)
0.25
Hook Adjustable Range (mm)
22.1
Maxmum Holding Capacity (N)
3200.0
Drawing Movement without Thumb Control (mm)
44.5
Product Series
323/331/341
Latch Plate
331005
Product Type
Standard
Standard Material
Steel
Hook Type
U-Hook (Horizontal)
Toggle Lock Plus
No
Ef:Af Exerting Force: Applied Force ((pushing/pulling))
32:1
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Product Function
Clamping
Latch Plate Supplied?
Yes
PublishedDate
1690573761000
Hook Adjustable Range
22.1
Base Mounting Style
Flange
Replacement Hook Assembly
331215
