Straight Line Action Clamps for Assembly, Testing & More
DESTACO - Workholding Equipment & Automation Tooling Solutions
MANUAL, PNEUMATIC & POWER CLAMPING SYSTEMS
Toggle Clamps - Manual & Push-Pull Toggle Clamps | DESTACO
Push Clamps - Straight Line Action Clamps | DESTACO
Straight Line Action Clamps 605 (Series)

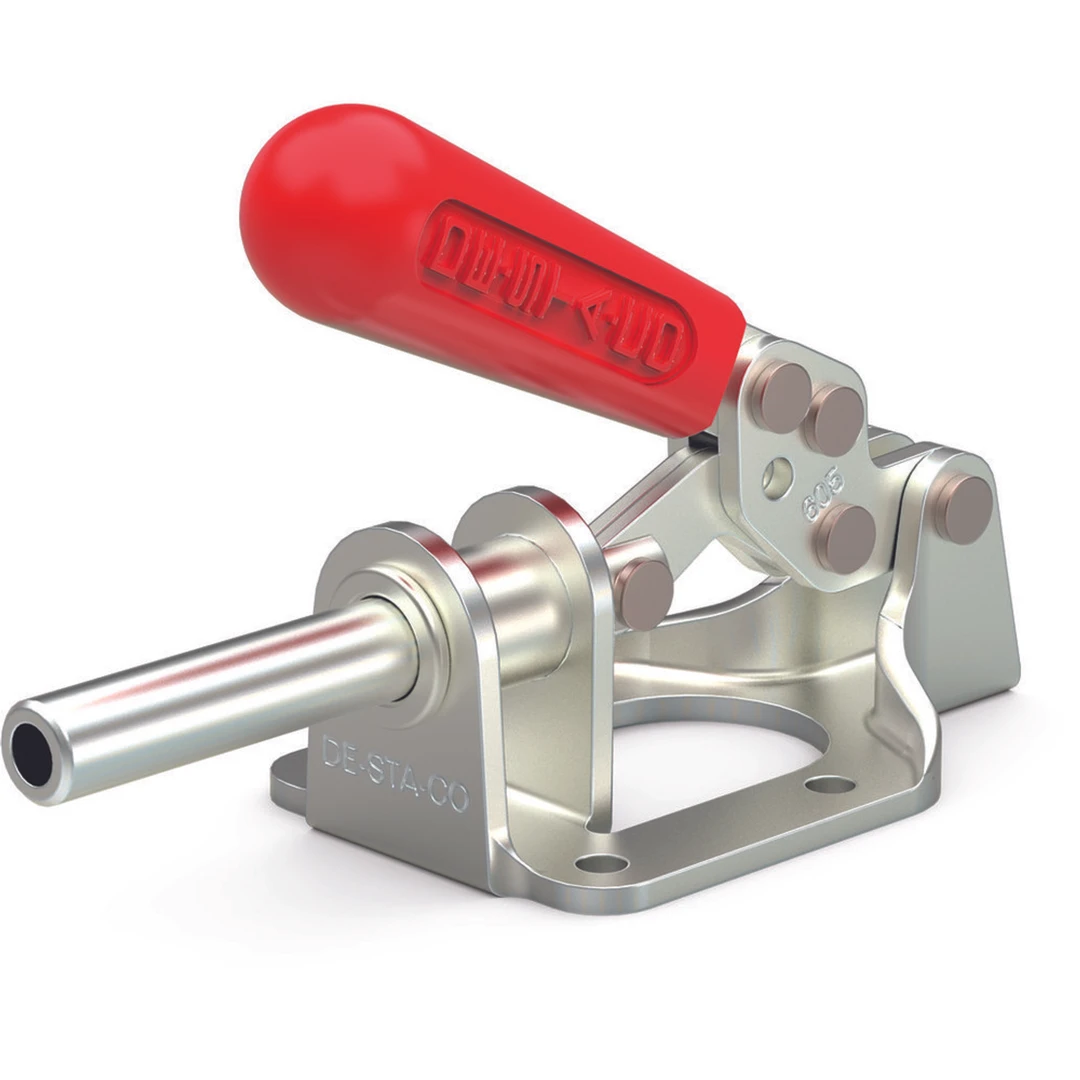

605-M
605-M
TOGGLE CLAMP
Locks in both extended and retracted position
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Maximum Holding Capacity (lbf)
300.0
Plunger Height (in)
0.97
Plunger Travel (in)
1.25
Weight (lb)
0.68
Plunger Travel (mm)
31.8
Maxmum Holding Capacity (N)
1330.0
Imperial or Metric Product
Metric
Weight (kg)
0.31
Plunger Height (mm)
24.6
Spindle (Recommended)
207203-M
PublishedDate
1715865811000
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Plunger Thread
M8
Plunger
Round
Product Type
Standard
Ef:Af Exerting Force: Applied Force ((pushing/pulling))
45:1/40:1
Spindle Included?
No
Standard Material
Steel
Product Function
Clamping
Toggle Lock Plus
No
Base Mounting Style
Flange
Product Series
605
Product Accessories
207203-M
SPINDLE M8 X 70.5 (sold in packs of 10)
