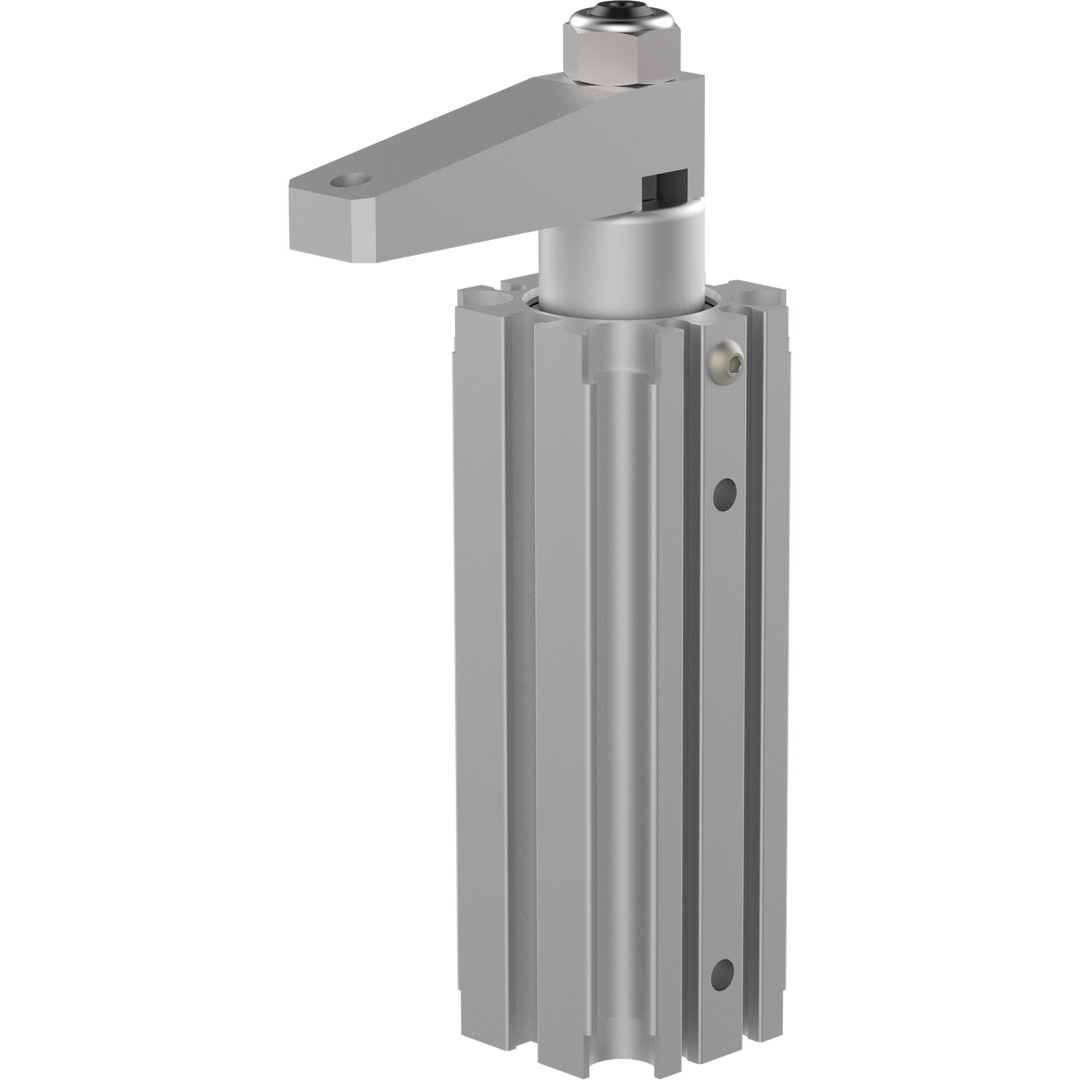

9522-2L - Air Swing 22mm Bore (LH)
9522-2L - Air Swing 22mm Bore (LH)
Email product details
Visit Product Series:
Pneumatic Swing Clamps-9500
Request Quote
Configure with accessories
Technical Details
CAD / Configure
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
5.22
Weight (lb)
0.68
Product Application
CLAMPING
Technical Details
Air Consumption (per double stroke at 7 psi) (in³)
0.004
Clamping Force @ 5Bar[72Psi] (lbf.)
34.0
Cylinder Bore (in)
0.86
Stroke (in)
0.5
Air Port size
M5
Foot Mount Kit
952260
Mount
Block: Side flange, tapped hole, standard
Supplied?
No
Swing Direction
LH
Tapped Hole Mount Kit
952261
Product Information
Accessories
952292|952260|952261|952262|9522150|9522153
Brand
DESTACO
Product Type
Pneumatic Swing Clamp
Spindle Included?
No
Standard Mount Kit
952262
CAD / Configure
Accessories
Resources
FAQs
Articles
Related Products
9500 Series
9530-2L - Swing Cyl 30mm LH - Replaces 9530L
