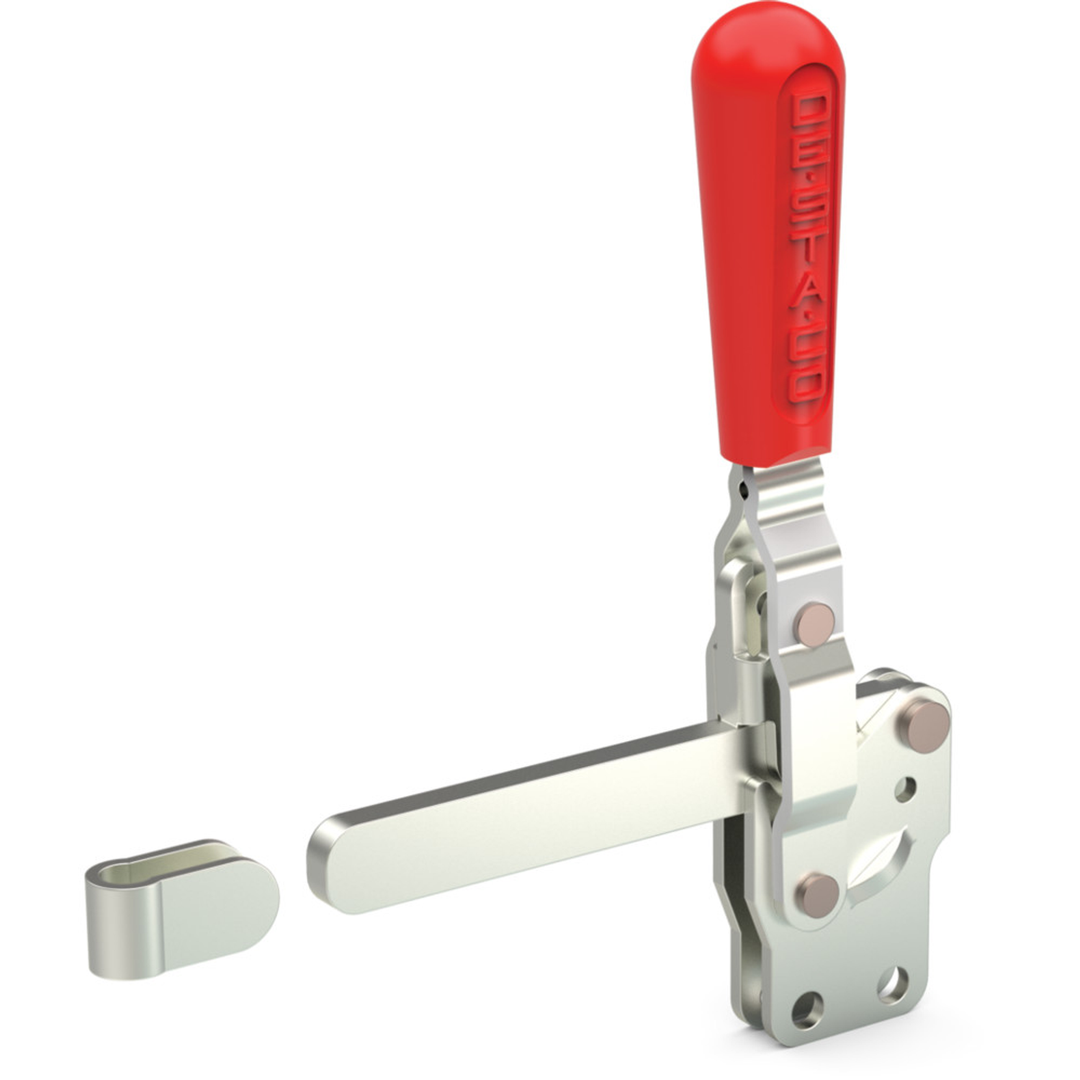

MANUAL, VERTICAL HOLD-DOWN CLAMPS WITH TOGGLE LOCKING – 207 SERIES
Unit View
Dimensions / Applications
- Length (in)5.06
- Weight (lb)0.75
- Application - AssemblyExcellent/High
- Application - Checking FixturesExcellent/High
- Application - Food ProcessingFair/Medium
- Application - MachiningPoor/Low
- Application - WeldingPoor/Low
- ApplicationsAssembly; Checking Fixtures; Closures; Welding; Wood Working
- Product ApplicationCLAMPING
- Service EnvironmentNormal
Technical Details
- Arm Length (in)3.48
- Clamp Arm Height (in)1.56
- Clamp Arm Length (in)3.48
- Height Under Clamp Arm (in)1.56
- Maximum Holding Capacity (lbf)500
- Bolt Retainer207105
- Supplied?No
Product Information
- Accessories207105-M|207305|207426-Q|207105|207105
- Accomodates Workpiece VariationNo
- Base Mounting StyleStraight
- BrandDESTACO
- Clamp Arm StyleLong Solid Bar
- HandleVertical
- Handle ColorRed
- Product TypeVertical Hold-Down Toggle Clamp
- Spindle Included?No
- Standard MaterialSteel
