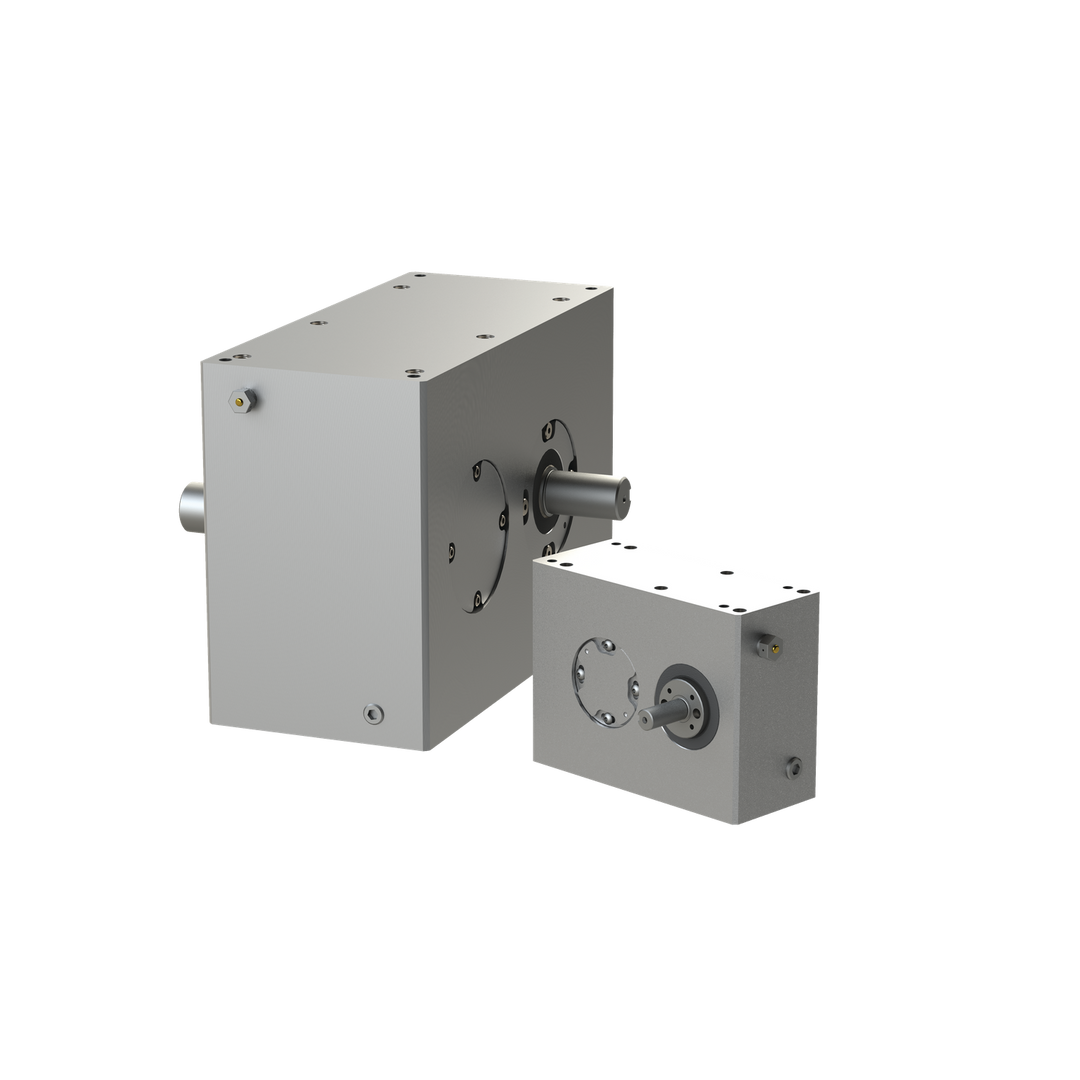

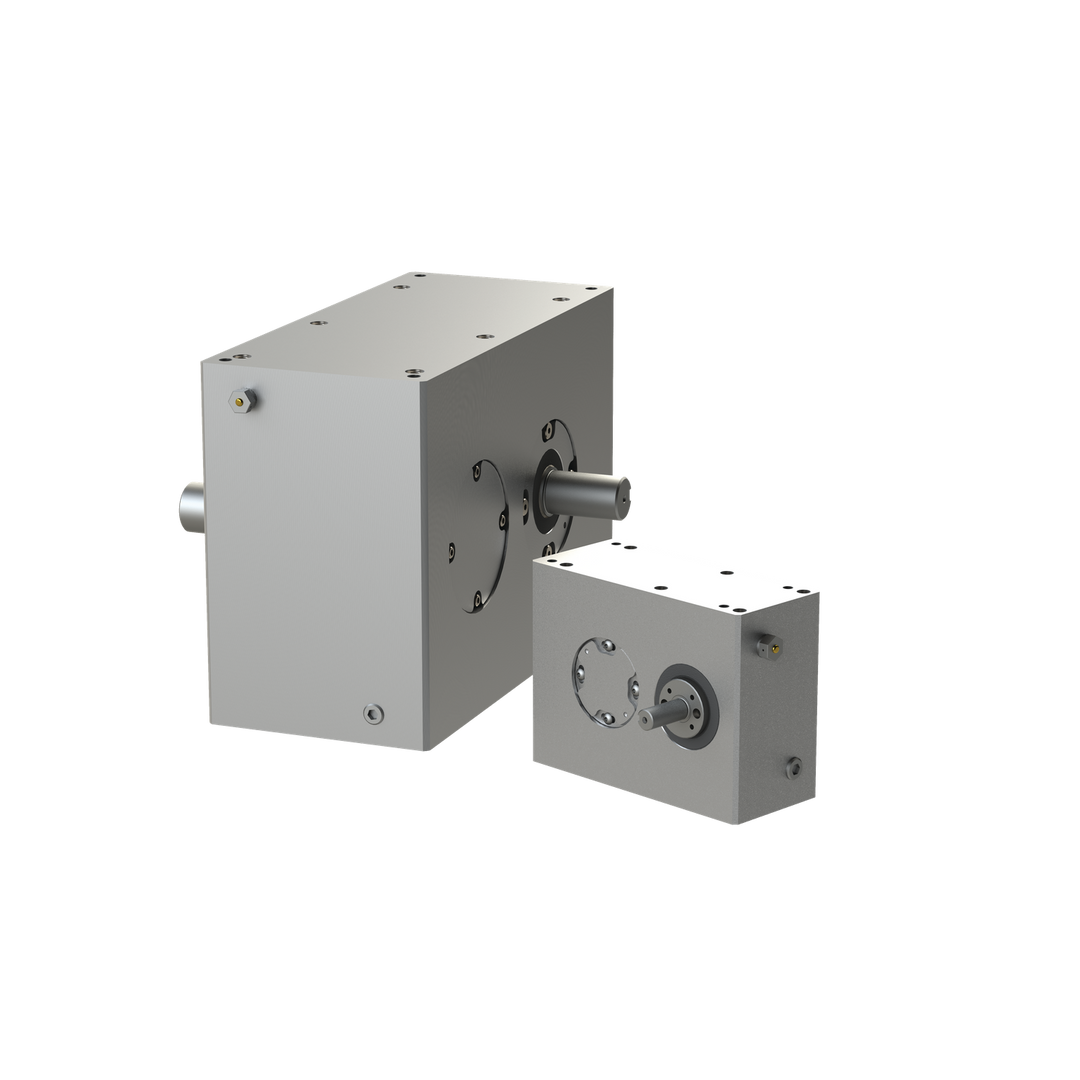

PARALLEL ROTARY INDEX DRIVES WITH WHOLE OR FRACTIONAL STOPS – P SERIES
Unit View
Dimensions / Applications
Technical Details
- Center Distance (in)3.25
- Height To Mounting Surface (in)3.625
- Internal Inertia (lb-in²)3
- Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)0.319
- Maximum Torque (in-lb)444
- Mounting Surface Diameter (in)1.75
- Output Overturning Moment Capacity (in-lb)395
- Output Radial Capacity (lb)316
- Output Shaft Diameter (in)0.625
- Output Thrust/Axial Capacity (lb)314
Product Information
- Base Model250P1.33H20-315
- BrandCamco
- Product TypeParallel Index Drive
- Spindle Included?No
