PARALLEL ROTARY INDEX DRIVES WITH WHOLE OR FRACTIONAL STOPS – P SERIES

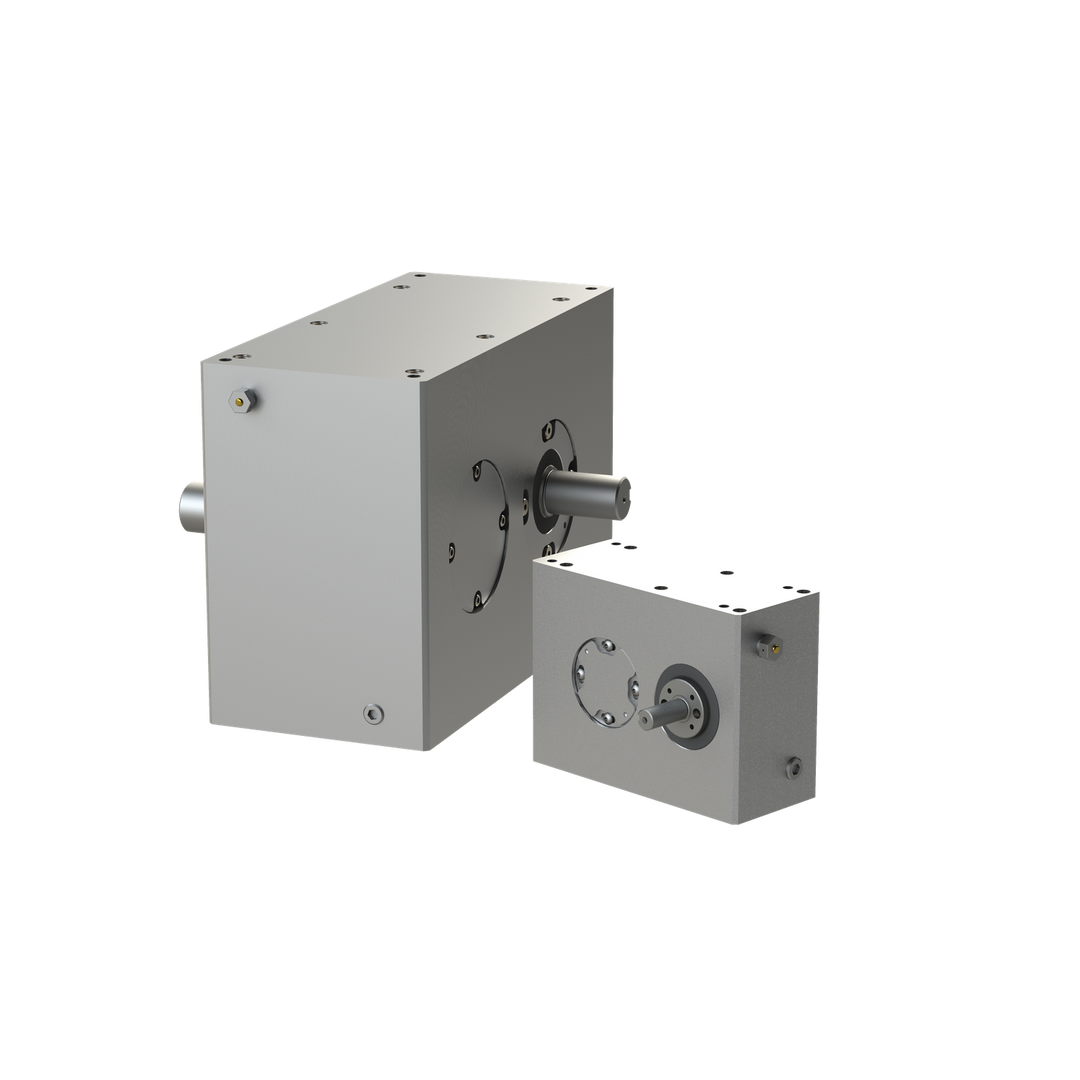

250P8H20-120_II - Parallel Index Drive

Visit Product Series:

Mechanical Rotary Indexers-P

Unit View

Dimensions / Applications

Technical Details

  • Center Distance (in)3.25
  • Height To Mounting Surface (in)3.625
  • Internal Inertia (lb-in²)3
  • Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)0.733
  • Maximum Torque (in-lb)661
  • Mounting Surface Diameter (in)1.75
  • Output Overturning Moment Capacity (in-lb)395
  • Output Radial Capacity (lb)316
  • Output Shaft Diameter (in)0.625
  • Output Thrust/Axial Capacity (lb)314

Product Information

  • Base Model250P8H20-120_II
  • BrandCamco
  • Product TypeParallel Index Drive
  • Spindle Included?No
