PARALLEL ROTARY INDEX DRIVES WITH WHOLE OR FRACTIONAL STOPS – P SERIES

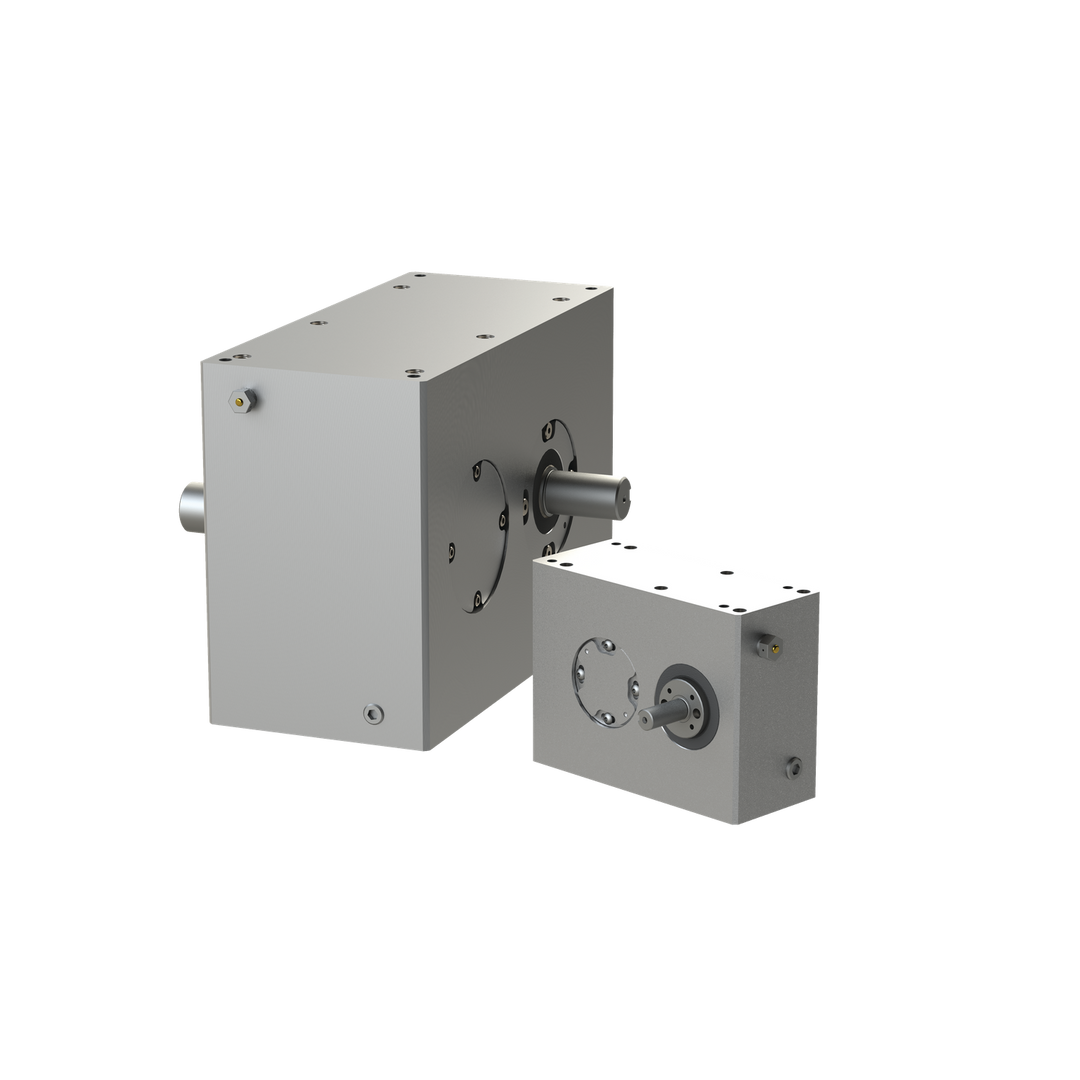

662P1.5H64-270_MSCV.33 - Parallel Index Drive

662P1.5H64-270_MSCV.33Parallel Index Drive

Visit Product Series:

Mechanical Rotary Indexers-P

Unit View

Dimensions / Applications

Technical Details

  • Center Distance (in)7.729
  • Height To Mounting Surface (in)8.75
  • Internal Inertia (lb-in²)306
  • Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)8.565
  • Maximum Torque (in-lb)14649
  • Mounting Surface Diameter (in)4.25
  • Output Overturning Moment Capacity (in-lb)12959
  • Output Radial Capacity (lb)3915
  • Output Shaft Diameter (in)2
  • Output Thrust/Axial Capacity (lb)2042

Product Information

  • Base Model662P1.5H64-270_MSCV.33
  • BrandCamco
  • Product TypeParallel Index Drive
  • Spindle Included?No
