Dimensions / Applications

Technical Details

• Center Distance (in)6.0
• Center Thru Hole Diameter (in)2.31
• Height To Mounting Surface (in)6.88
• Internal Inertia (lb-in²)595.0
• Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)73.0
• Maximum Torque (in-lb)7578.0
• Mounting Surface Diameter (in)9.46
• Output Overturning Moment Capacity (in-lb)21620.0
• Output Radial Capacity (lb)3540.0
• Output Thrust/Axial Capacity (lb)7000.0

Product Information

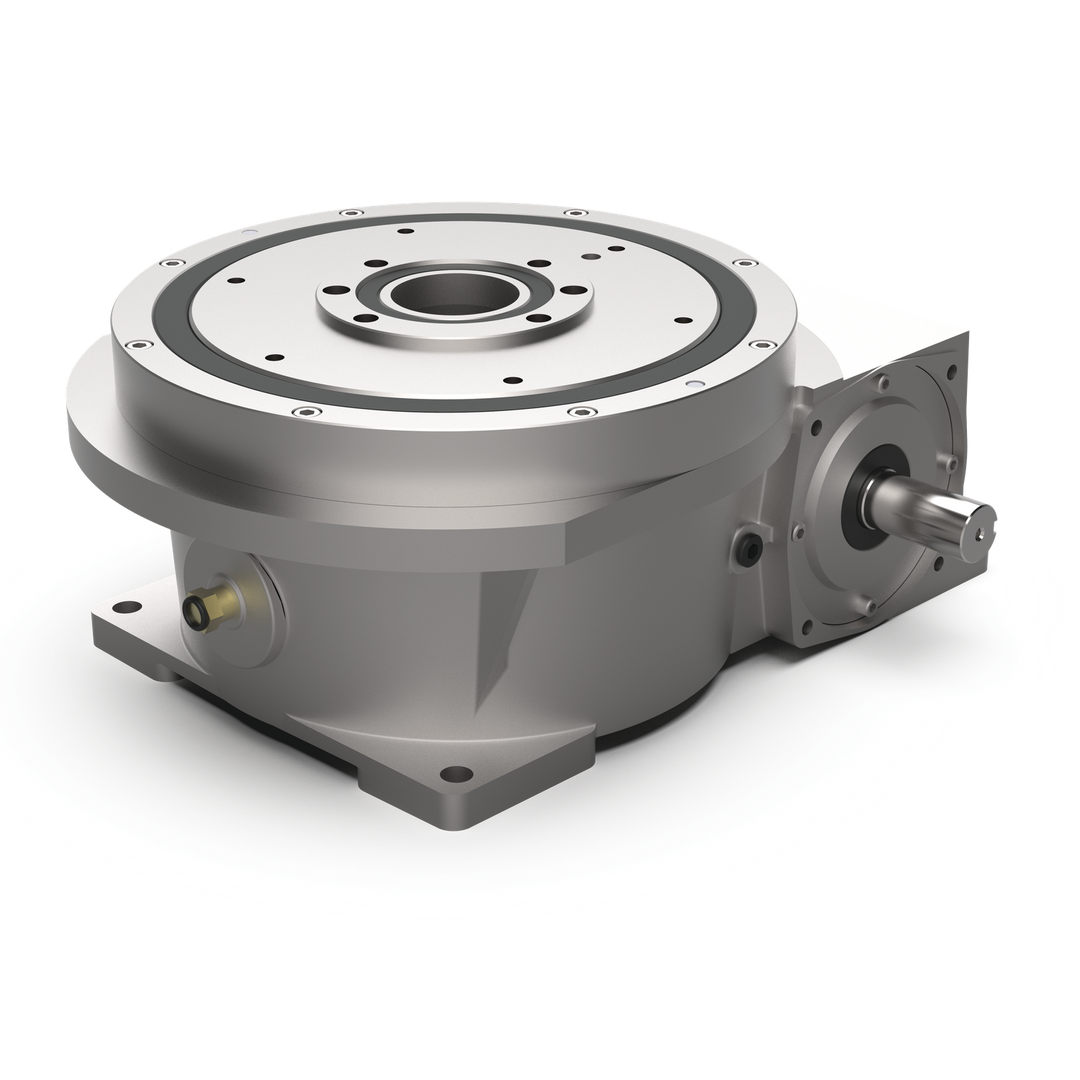

• Base Model902RDM4H32-330
• BrandCamco
• Product TypeRoller Dial Index Drive
• Spindle Included?No
