PNEUMATIC POWER CYLINDERS FOR CLAMPING, STAMPING & PRESSING – K SERIES

DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Pneumatic Clamping
Pneumatic Power Cylinder
Pneumatic Power Cylinder-K

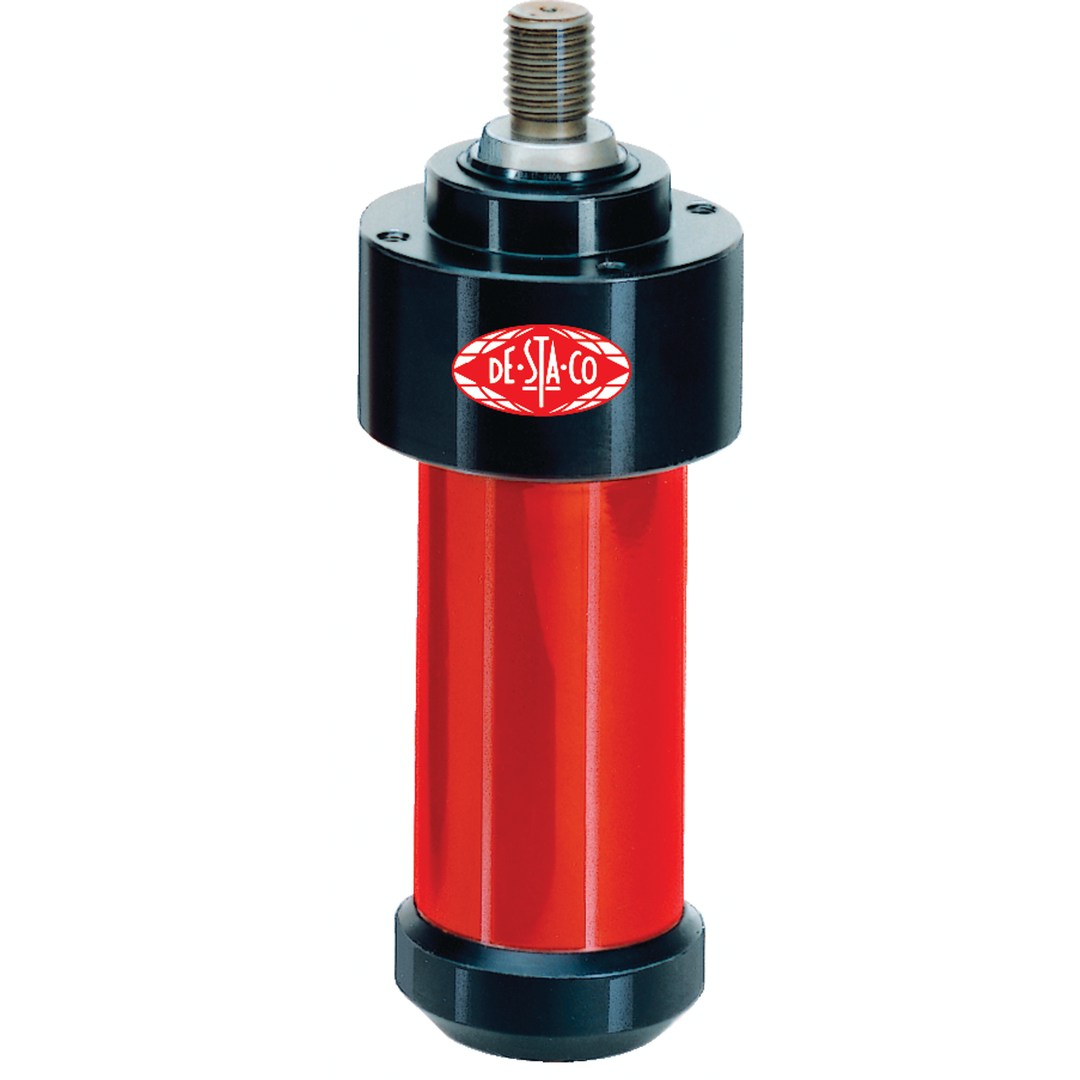

K1000-120-7-1 - Pneumatic Power Cylinder - Piston Rod with Male Thread

K1000-120-7-1 - Pneumatic Power Cylinder - Piston Rod with Male Thread

Visit Product Series:

Pneumatic Power Cylinder-K

Unit View

Imperial

Metric

Dimensions / Applications

Weight (lb)11.5
Product ApplicationCLAMPING

Technical Details

Air Consumption per double stroke at 6 bar (ft³)5.35
Air Consumption per double stroke at 87 psi (ft³)0.189
Cylinder Bore (in)2.48
Forward Stroke (in)4.72
Max. Clamping Force (lbf)2248
Piston force within forward stroke at 6 bar (lbf)393
Power Stroke (in)0.276
Stroke Frequency depending on total stroke (per minute)5 to 30 [ en_US ]
Supplied?No

Product Information

AccessoriesSMB-102157
BrandDESTACO
Product TypePneumatic Power Cylinder
Spindle Included?No
