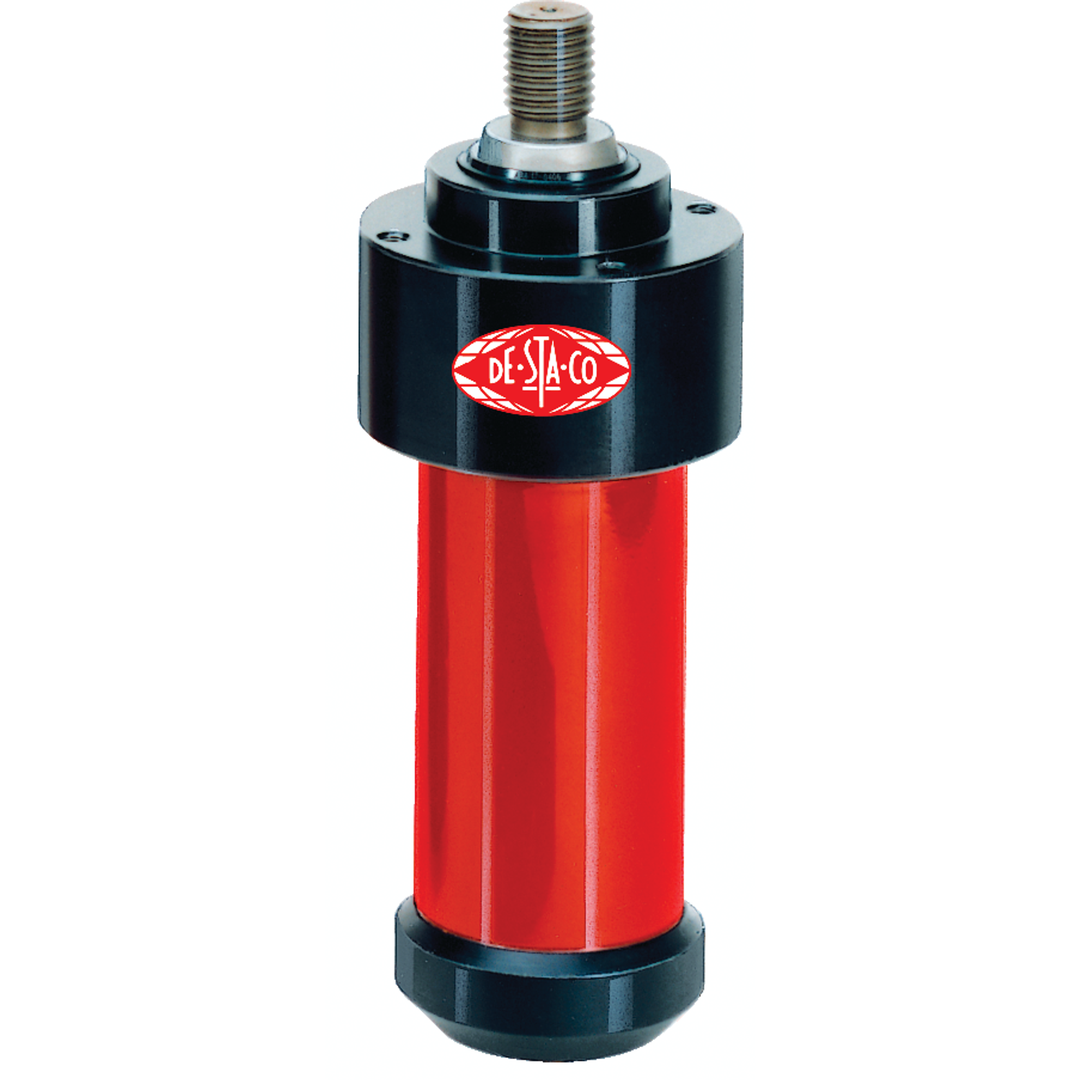

Name: K400-15-6-A - Pneumatic Power Cylinder
Brand: DESTACO
SKU: K400-15-6-A
Price: 1.00 USD
Availability: InStock

Air Consumption per double stroke at 6 bar (ft³)0.71
Air Consumption per double stroke at 87 psi (ft³)0.025
Cylinder Bore (in)1.75
Forward Stroke (in)0.59
Max. Clamping Force (lbf)899
Piston force within forward stroke at 6 bar (lbf)153
Power Stroke (in)0.236
End position control by magnetic field sensorsYes [ en_US ] ; Yes [ zh_CN ] ; Ja [ de_DE ] ; Oui [ fr_FR ]
Stroke Frequency depending on total stroke (per minute)5 to 30 [ en_US ]
Supplied?No

PNEUMATIC POWER CYLINDERS FOR CLAMPING, STAMPING & PRESSING – K SERIES

K400-15-6-A - Power Cylinder With Sensors
