PNEUMATIC POWER CYLINDERS FOR CLAMPING, STAMPING & PRESSING – WK SERIES

DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Pneumatic Clamping
Pneumatic Power Cylinder
Pneumatic Power Cylinder-WK

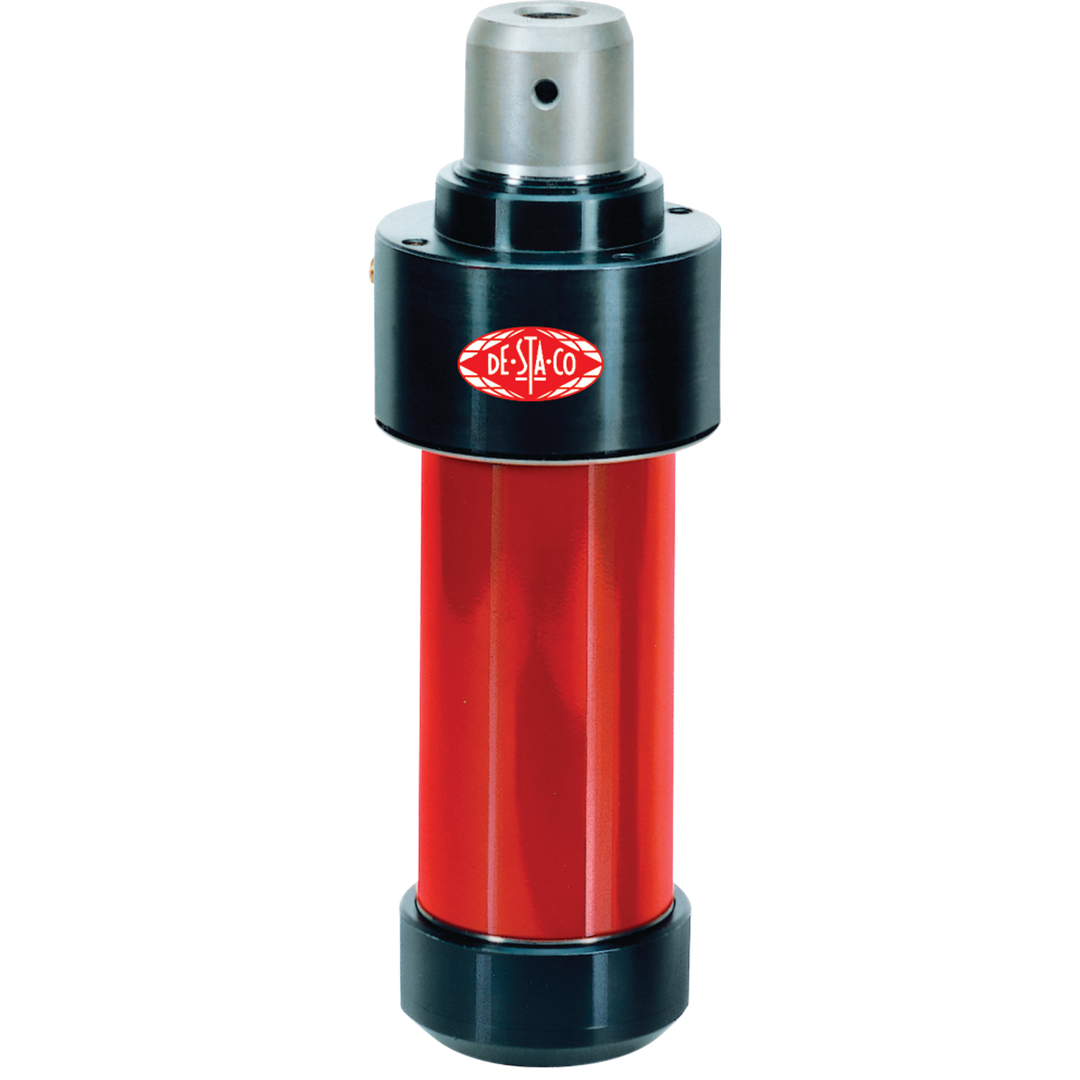

WK400-50-6-1 - Pneumatic Power Cylinder Without Magnetic Piston Whitout Sensors

WK400-50-6-1 - Pneumatic Power Cylinder Without Magnetic Piston Whitout Sensors

Visit Product Series:

Pneumatic Power Cylinder-WK

Unit View

Imperial

Metric

Dimensions / Applications

Weight (lb)2.9
Product ApplicationCLAMPING

Technical Details

Air Consumption per double stroke at 6 bar (ft³)1.14
Air Consumption per double stroke at 87 psi (ft³)0.04
Cylinder Bore (in)1.75
Forward Stroke (in)1.97
Max. Clamping Force (lbf)899
Piston force within forward stroke at 6 bar (lbf)153
Power Stroke (in)0.236
Stroke Frequency depending on total stroke (per minute)5 to 30 [ en_US ]
Supplied?No

Product Information

AccessoriesSMB-102157
BrandDESTACO
Product TypePneumatic Power Cylinder
Spindle Included?No
