Unit View
Dimensions / Applications
- Weight (lb)7.28
Technical Details
- Air consumption per cycle @ 6 bar [87 psi] in39.15
- Load max. in-lb124
- Mass moment of inertia max. lb-in22489
- Partial precision (unloaded) @ Ø120 mm +/- in0.001
- Radial force centric max. lbs674
- Tilting torque max. in-lb443
- Torque @ 6 bar [87 psi] in-lb31
- Torque absorption max. (locked) lb220
- Bearing of the rotary plateGrooved ball bearing
- ConnectorG1/8
Product Information
- BrandDESTACO

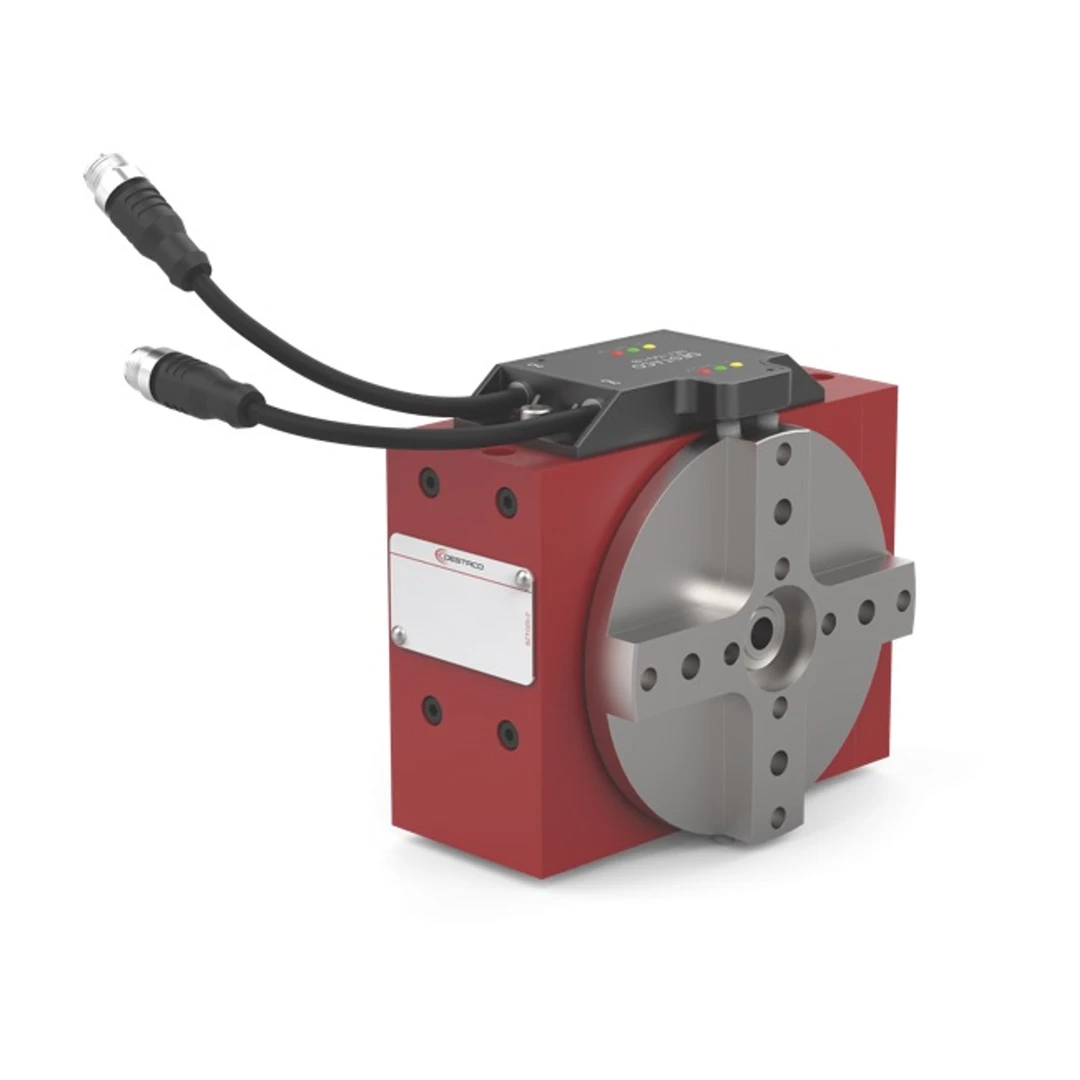

- Product TypePNEUMATIC ROTARY INDEX TABLE
