BLOCK STYLE, PNEUMATIC SWING CLAMPS FOR WELDING & ASSEMBLY - 8100 & 8300 SERIES
DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Pneumatic Clamping
Pneumatic Swing Clamps
Pneumatic Swing Clamps-8100-8300

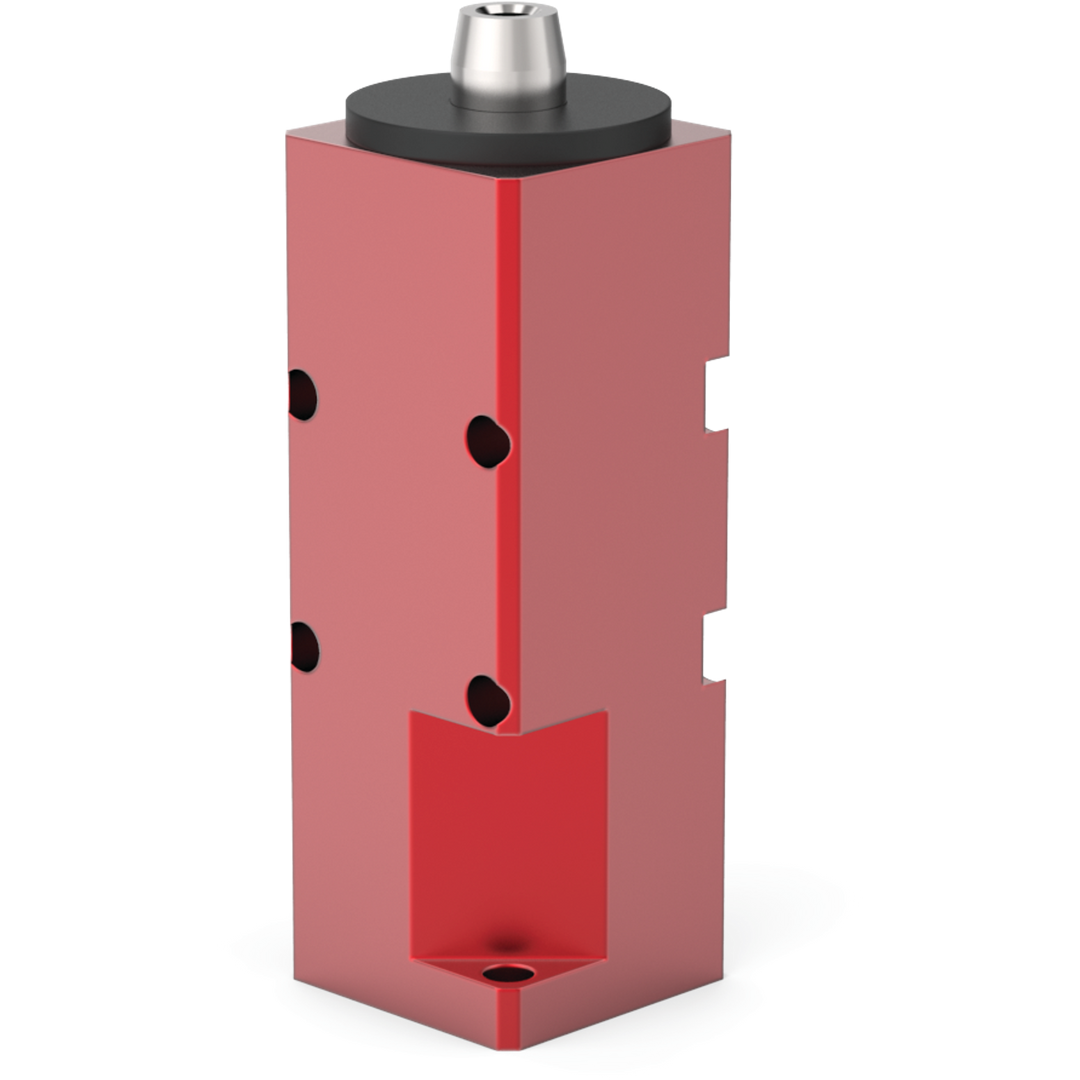

8115-LA - 8115 Pneumatic Swing Cylinder without Arm (Was 8117)
8115-LA - 8115 Pneumatic Swing Cylinder without Arm (Was 8117)
Email product details
Visit Product Series:
Pneumatic Swing Clamps-8100-8300
Request Quote
Technical Details
CAD / Download
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
3.9
Weight (lb)
0.9
Product Application
CLAMPING
Technical Details
Air Consumption (per double stroke at 7 psi) (in³)
0.002
Clamping Force @ 5Bar[72Psi] (lbf.)
18.0
Cylinder Bore (in)
0.75
Stroke (in)
0.85
Stroke during rotation (in)
0.47
Air Port size
10-32
Mount
Block style - side or top mount
Supplied?
No
Swing Direction
RH
Product Information
Brand
DESTACO
Product Type
Pneumatic Swing Clamp
Sensor Ready
Yes
Spindle Included?
No
