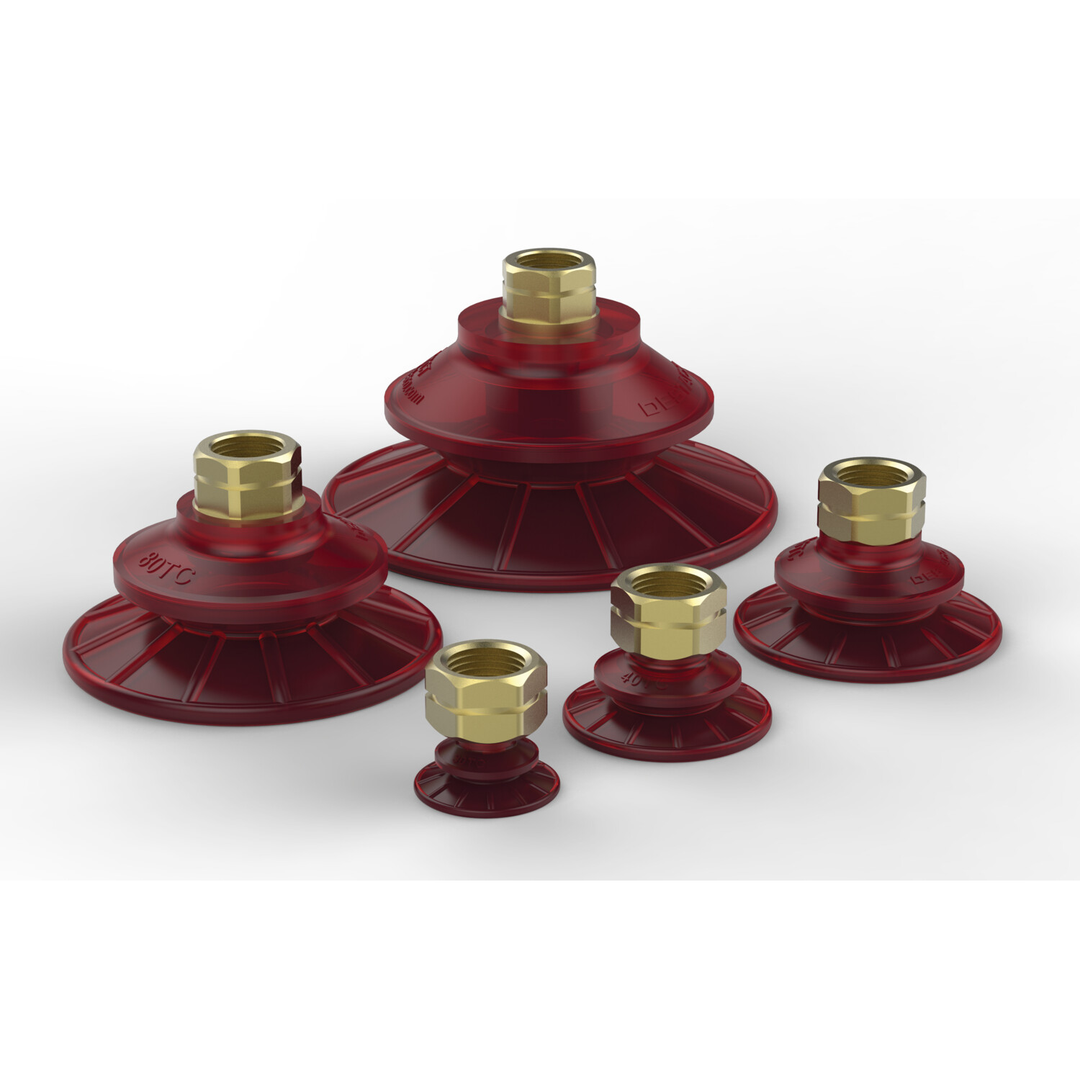

VC-40TC-G38-PU55 - Cup, Round, Bellows, 40mm , 3/8G, Red PU55

Default Image

VC-40TC-G38-PU55 - Cup, Round, Bellows, 40mm , 3/8G, Red PU55

Visit Product Series:

Vacuum Products Vacuum Cups

Unit View

Imperial

Metric

Dimensions / Applications

Weight (oz)1.2
Product ApplicationHANDLING

Technical Details

Cup Size1.57 in
Diameter (in)1.77
Holding Capacity - Horizontal Dry (lbf)13
Holding Capacity - Horizontal Wet (lbf)10
Holding Capacity - Vertical Lift (lbf)18
Durometer55 (Red Transparent)
ShapeRound
Supplied?No

Product Information

BrandDESTACO
MaterialPolyurethane
Product TypeRound Bellows Cup
Spindle Included?No
