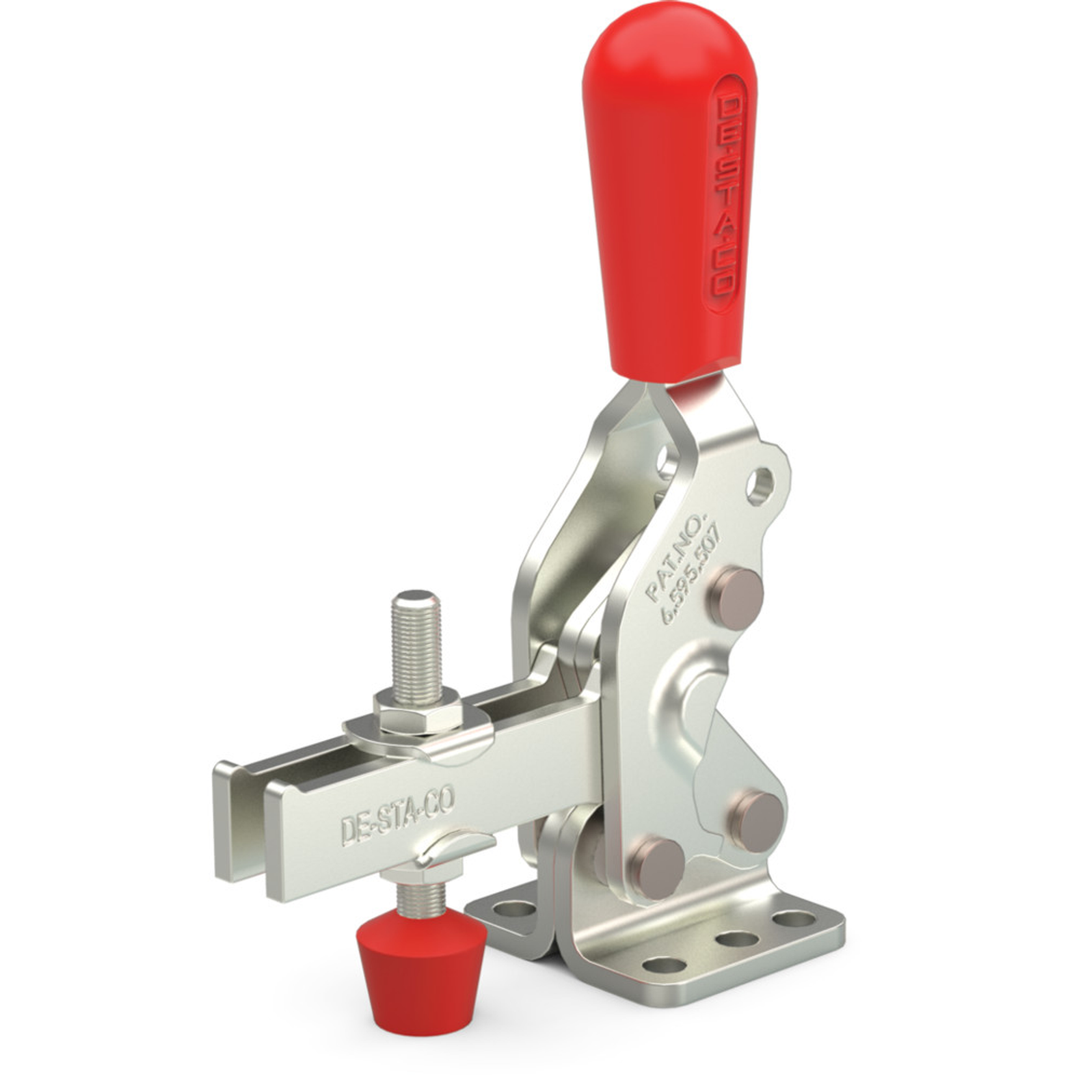

VERTICAL, MANUAL HOLD-DOWN CLAMPS WITH HAND CLEARANCE – 2002 SERIES
DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Manual Clamping
Hold Down Clamps
Hold Down Clamps-2002
2002-USS - Stainless Steel Version of 2002-UR
2002-USS - Stainless Steel Version of 2002-UR
Email product details
Visit Product Series:
Hold Down Clamps-2002
Request Quote
Technical Details
CAD / Download
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
3.29
Weight (lb)
0.49
Application - Assembly
Excellent/High
Application - Checking Fixtures
Excellent/High
Application - Food Processing
Not Recommended
Application - Machining
Poor/Low
Application - Welding
Fair/Medium
Applications
Assembly; Checking Fixtures; Clamping; Closures; Woodworking
Product Application
CLAMPING
Service Environment
Normal
Technical Details
Arm Length (in)
1.93
Clamp Arm Height (in)
0.9500
Clamp Arm Length (in)
1.93
Height Under Clamp Arm (in)
0.95
Maximum Holding Capacity (lbf)
600.0
Supplied?
No
Product Information
Accessories
215208-M|215105|202943-M|215905
Accomodates Workpiece Variation
No
Base Mounting Style
Flange
Brand
DESTACO
Clamp Arm Style
U-Bar
Handle
Vertical
Handle Color
Red
Product Type
Vertical Hold-Down Toggle Clamp
Spindle Assembly
215208-M
Spindle Included?
No
