Hold Down Clamps-305-307-309

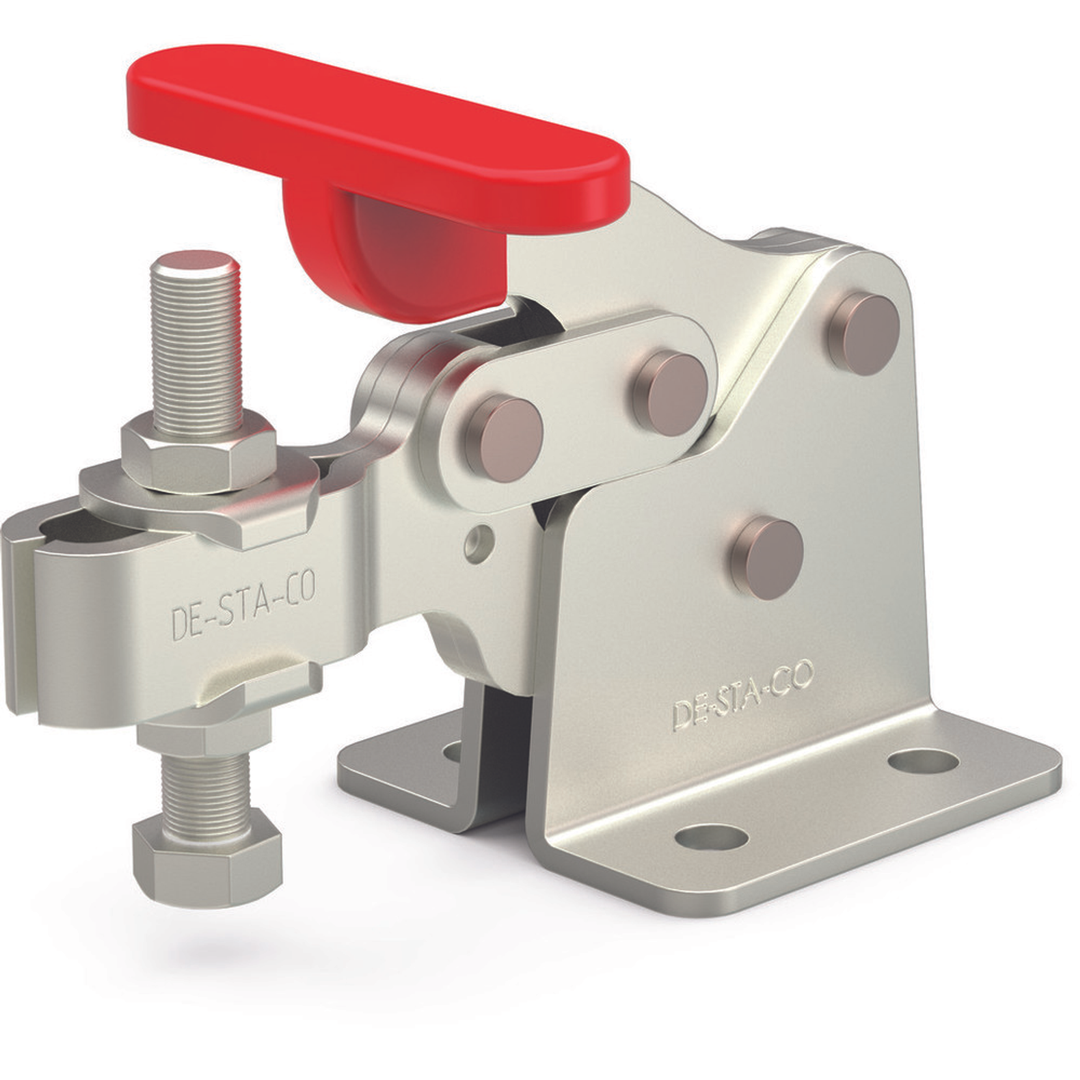

309-USS - Stainless Steel 309-U
309-USS - Stainless Steel 309-U
Email product details
Visit Product Series:
Hold Down Clamps-305-307-309
Request Quote
Technical Details
CAD / Download
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
5.19
Weight (lb)
2.87
Application - Assembly
Excellent/High
Application - Checking Fixtures
Fair/Medium
Application - Food Processing
Fair/Medium
Application - Machining
Fair/Medium
Application - Welding
Fair/Medium
Applications
Assembly; Checking Fixtures; Clamping; Closures; Food Processing; Woodworking
Product Application
CLAMPING
Service Environment
Normal
Technical Details
Arm Length (in)
2.67
Clamp Arm Height (in)
1.3
Clamp Arm Length (in)
2.66
Height Under Clamp Arm (in)
1.3
Maximum Holding Capacity (lbf)
750
Supplied?
No
Product Information
Accessories
237943-M|237943|235906
Accomodates Workpiece Variation
No
Base Mounting Style
Flange
Brand
DESTACO
Clamp Arm Style
U-Bar
Handle
Horizontal
Handle Color
Red
Product Type
Horizontal Hold-Down Toggle Clamp
Spindle Assembly
237943
Spindle Included?
No
