HEAVY-DUTY, MANUAL HORIZONTAL HOLD-DOWN CLAMPS – 5000 SERIES

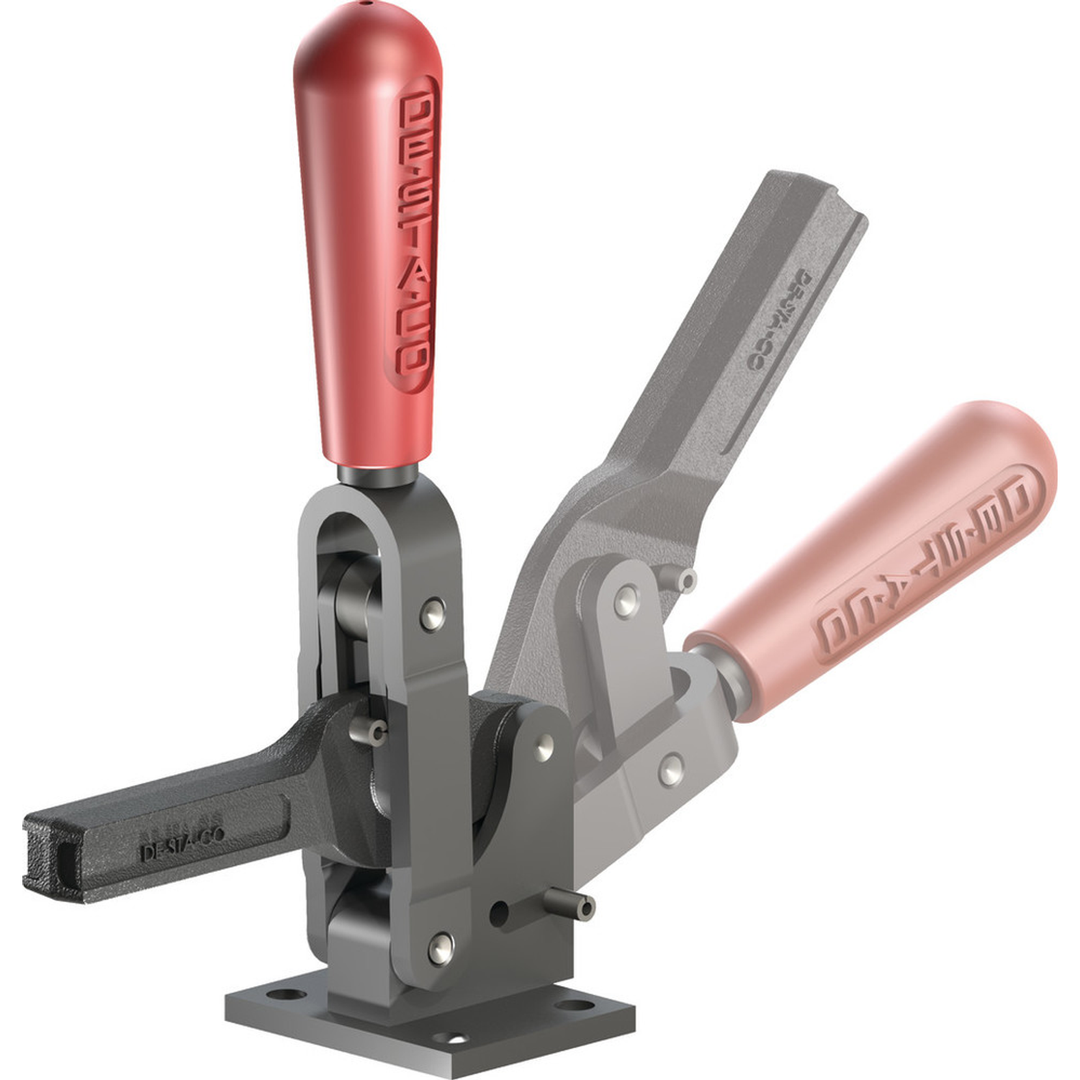

5905-B - Solid Base

Visit Product Series:

Hold Down Clamps-5000Hold Down Clamps 5900

Unit View

Dimensions / Applications

  • Length (in)4.02
  • Weight (lb)0.8
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesFair/Medium
  • Application - Food ProcessingNot Recommended
  • Application - MachiningPoor/Low
  • Application - WeldingExcellent/High
  • ApplicationsAssembly; Checking Fixtures; Clamping; Welding
  • Product ApplicationCLAMPING
  • Service EnvironmentHarsh/Dirty

Technical Details

  • Arm Length (in)2.49
  • Clamp Arm Height (in)1.27
  • Clamp Arm Length (in)2.49
  • Height Under Clamp Arm (in)1.27
  • Maximum Holding Capacity (lbf)750
  • Supplied?No

Product Information

  • Accomodates Workpiece VariationNo
  • Base Mounting StyleStraight
  • BrandDESTACO
  • Clamp Arm StyleSolid Bar
  • HandleVertical
  • Handle ColorRed
  • Product TypeVertical Hold-Down Toggle Clamp
  • Spindle Included?No
  • Standard MaterialHigh-Strength Forged Steel
  • Tip MaterialNA
