Dimensions / Applications

Technical Details

• Center Distance (in)9
• Center Thru Hole Diameter (in)5
• Height To Mounting Surface (in)13.56
• Internal Inertia (lb-in²)4486
• Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)2019
• Maximum Torque (in-lb)25095
• Mounting Surface Diameter (in)14.5
• Output Overturning Moment Capacity (in-lb)40528
• Output Radial Capacity (lb)4650
• Output Thrust/Axial Capacity (lb)11650

Product Information

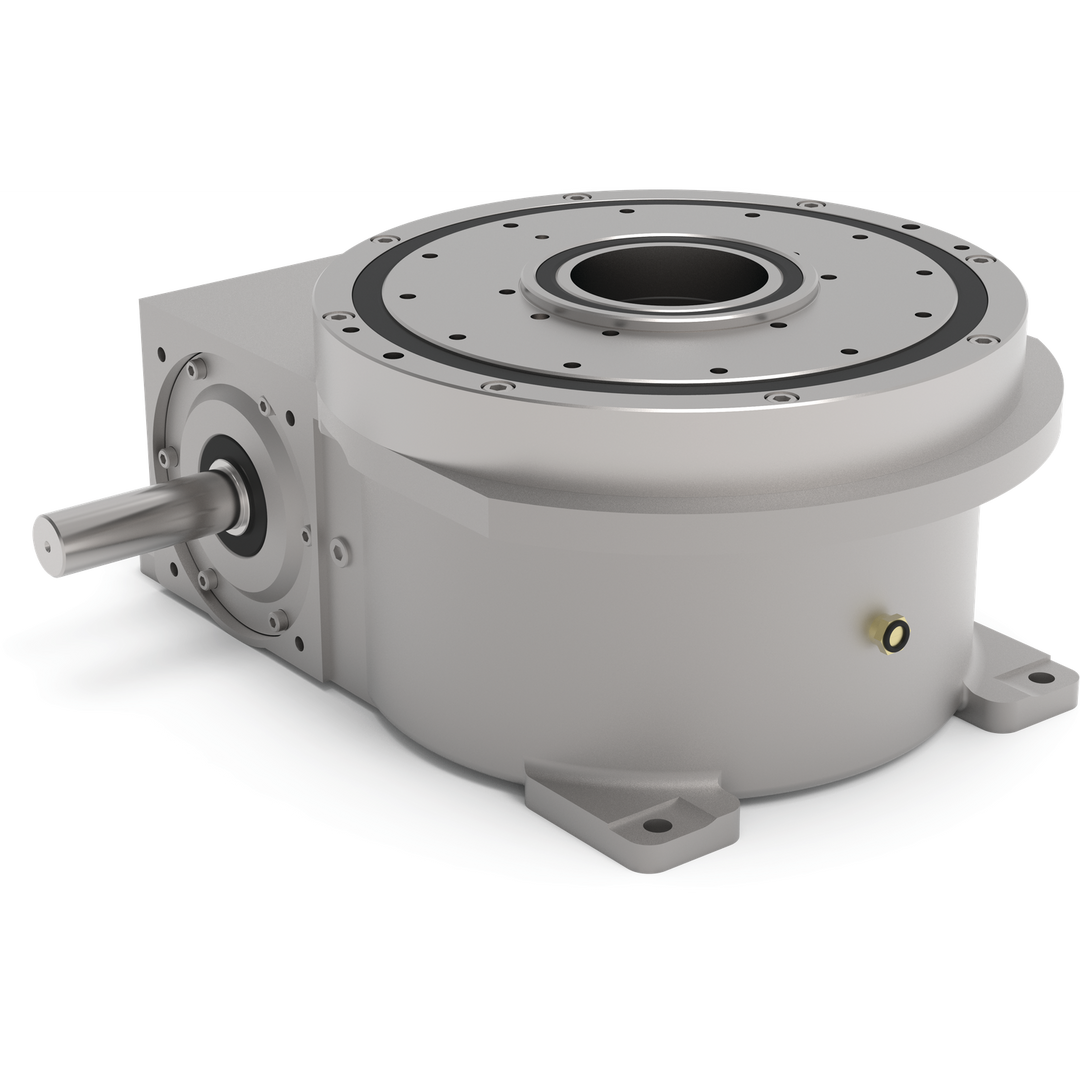

• Base Model1305RDM16H48-330
• BrandCamco
• Product TypeRoller Dial Index Drive
• Spindle Included?No
