Manual Clamping
Steel toggle clamp with 2.5 times the capacity of our legacy models with increased handle clearance, Toggle Lock Plus capability, and flanged base with U-bar.

2017-UR

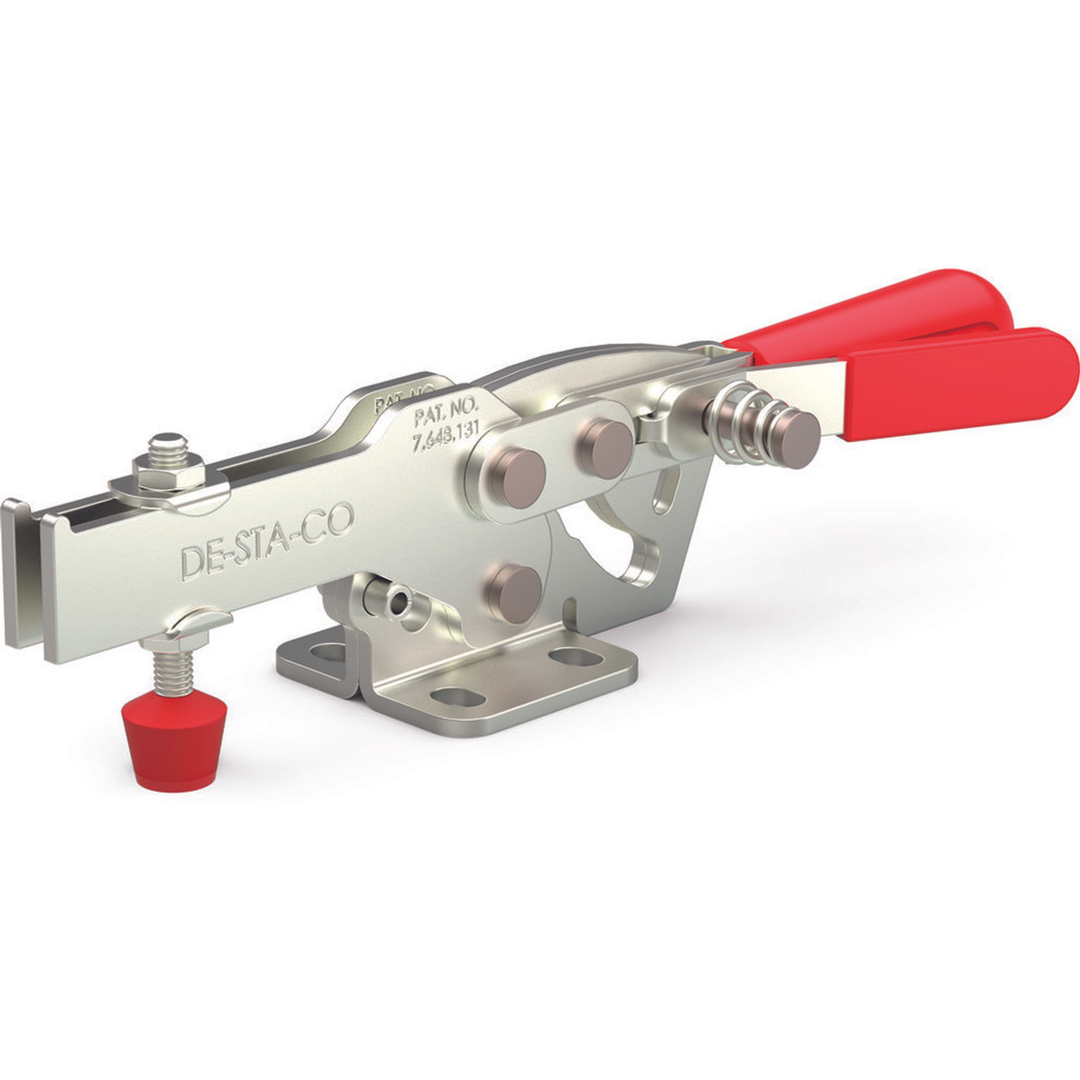

Horizontal Hold Down Clamp
  • Flanged or straight base versions
  • With Toggle-Lock Plus feature
  • Adjustable pre-load
Visit Product Series:
CAD

Product Details Unit View:
Clamp Arm Length (in) 2.53
Height Under Clamp Arm (in) 0.98
Maximum Holding Capacity (lbf) 560.0
Weight (lb) 0.97
Clamp Arm Length (mm) 64.3
Maxmum Holding Capacity (N) 2500.0
Height Under Clamp Arm (mm) 24.9
Weight (kg) 0.44
Product Type Standard
Handle Horizonal
Clamp Arm Style U-Bar
Toggle Lock Plus Yes
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Spindle Assembly 215208-M
PublishedDate 1725542945000
Application - Food Processing Not Recommended
Application - Welding Fair/Medium
Application - Checking Fixtures Excellent/High
Flanged Washers 215105
Accomodates Workpiece Variation No
Application - Assembly Excellent/High
Application - Closures Excellent/High
Application - Wood-Working Excellent/High
Application - Machining Poor/Low
Handle Opening (+10°) 69.0
Standard Material Steel
Base Mounting Style Flange
Product Series 2017
Clamp Bar Opening (+10°) (degrees) 73.0
Service Environment Normal
Product Function Clamping
Product Accessories
215208-M
SPINDLE M6X45 WITH HEX JAM NUT
