Manual Clamping

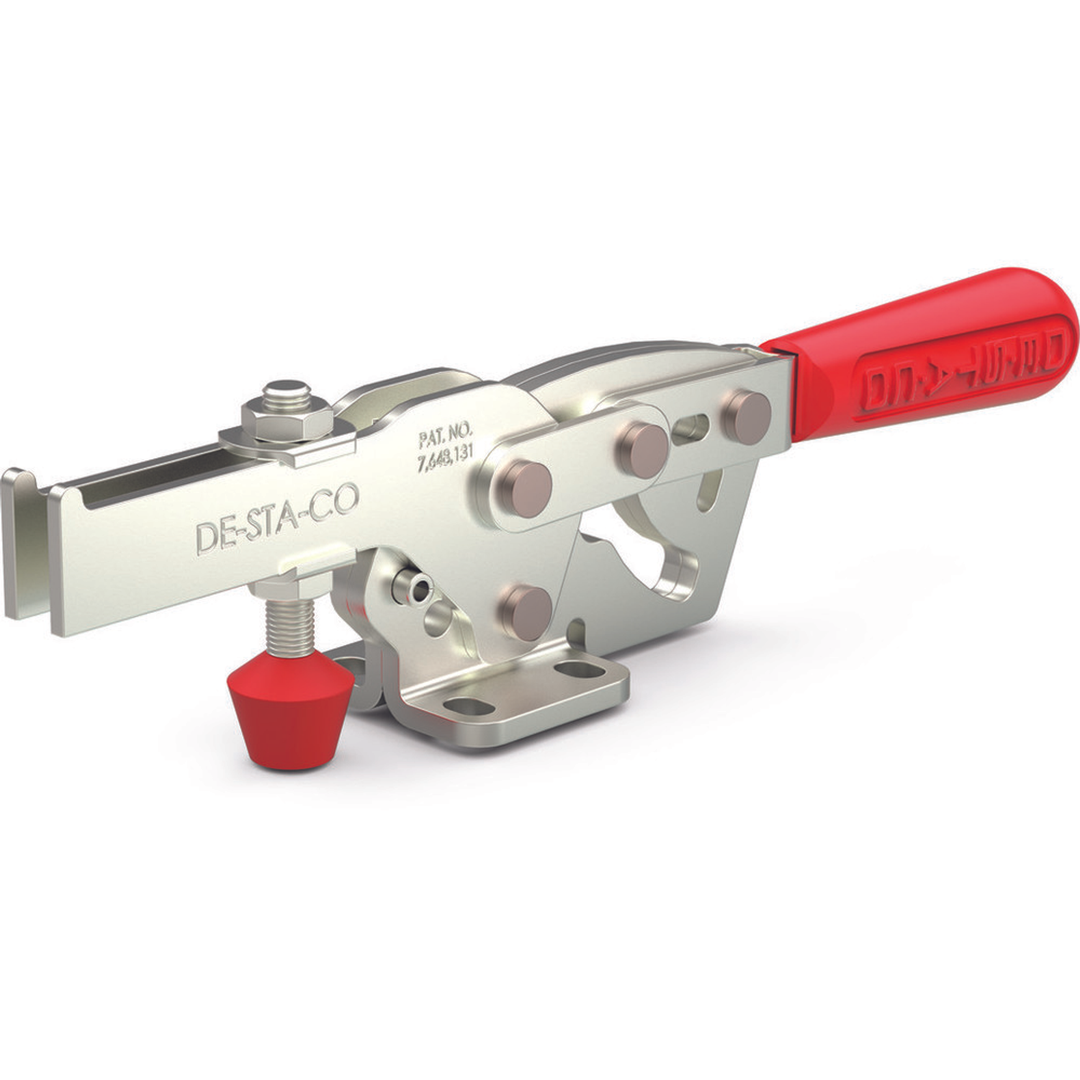

New generation toggle clamp with 2.5 times the capacity of our legacy models with adjustable pre-load, flanged base, and U-bar.

2027-U

Visit Product Series:
CAD

Product Details Unit View:
Height Under Clamp Arm (in) 1.32
Maximum Holding Capacity (lbf) 840.0
Weight (lb) 1.34
Clamp Arm Length (in) 2.86
Clamp Arm Length (mm) 72.6
Weight (kg) 0.61
Height Under Clamp Arm (mm) 33.5
Maxmum Holding Capacity (N) 3740.0
Handle Horizonal
Product Series 2027
Application - Machining Fair/Medium
Flanged Washers 507107
Application - Checking Fixtures Excellent/High
Handle Opening (+10°) 70.0
Application - Food Processing Not Recommended
Accomodates Workpiece Variation No
Product Function Clamping
Application - Closures Excellent/High
Application - Wood-Working Excellent/High
Clamp Bar Opening (+10°) (degrees) 68.0
Handle Color Red
Application - Welding Fair/Medium
Clamp Arm Style U-Bar
Duty Cycle 2
Product Type Standard
Toggle Lock Plus No
Application - Assembly Excellent/High
Base Mounting Style Flange
Standard Material Steel
Spindle Assembly 2007208-M
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Service Environment Normal
Product Accessories
507107
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
L-227-1-04
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
L-227-1-03
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
L-227-1-02
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
2007208-M
SPINDLE FOR 2007-U (sold in packs of 10)
