217-U
217-U

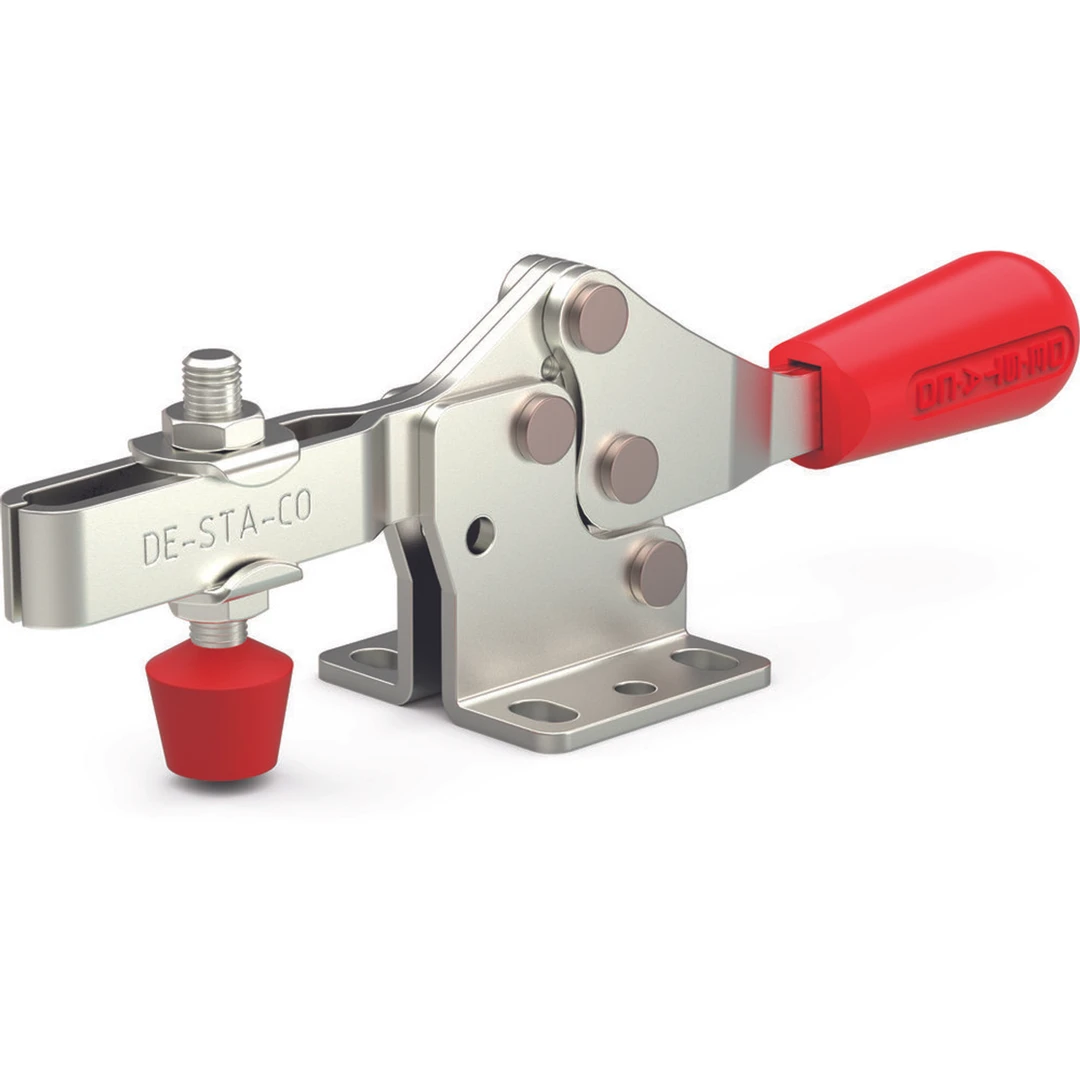

Horizontal Hold Down Clamp
Clamp supplied with neoprene spindle
Low profile
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Height Under Clamp Arm (in)
0.92
Clamp Arm Length (in)
2.31
Weight (lb)
0.4
Maximum Holding Capacity (lbf)
200.0
Weight (kg)
0.18
Clamp Arm Length (mm)
58.7
Maxmum Holding Capacity (N)
900.0
Height Under Clamp Arm (mm)
23.4
Product Function
Clamping
Service Environment
Normal
Handle Opening (+10°)
61.0
Clamp Bar Opening (+10°) (degrees)
91.0
Flanged Washers
215105
Standard Material
Steel
Base Mounting Style
Flange
Application - Machining
Poor/Low
Clamp Arm Style
U-Bar
Product Series
217
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Application - Closures
Excellent/High
Spindle Assembly
202208-M
Application - Welding
Fair/Medium
Accomodates Workpiece Variation
No
PublishedDate
1725459423000
Toggle Lock Plus
No
Application - Wood-Working
Excellent/High
Product Type
Standard
Application - Assembly
Excellent/High
Application - Food Processing
Fair/Medium
Application - Checking Fixtures
Excellent/High
Handle
Horizonal
Product Accessories
202208-M
SPINDLE M6X35 WITH HEX JAM NUT
