Manual Clamping

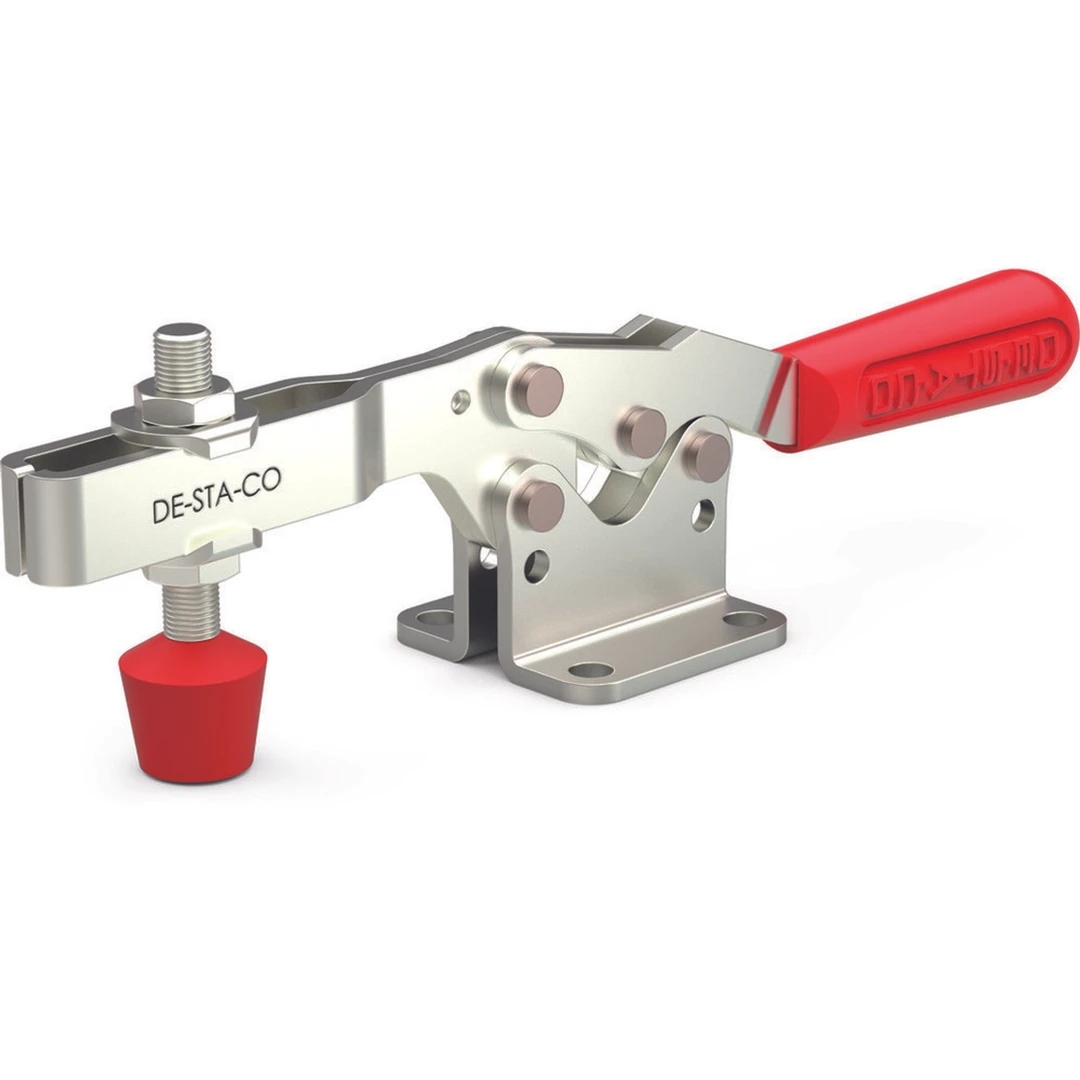

Low profile, horizontal hold down clamp with neoprene spindle, flanged base, and U-bar.

235-U

Visit Product Series:
CAD

Product Details Unit View:
Clamp Arm Length (in) 4.17
Weight (lb) 1.48
Height Under Clamp Arm (in) 1.69
Maximum Holding Capacity (lbf) 750
Height Under Clamp Arm (mm) 42.9
Weight (kg) 0.67
Maxmum Holding Capacity (N) 3340
Clamp Arm Length (mm) 105.9
Base Mounting Style Flange
Application - Assembly Excellent/High
Handle Opening (+10°) 70
Application - Food Processing Fair/Medium
Clamp Bar Opening (+10°) (degrees) 92
Application - Closures Excellent/High
Spindle Assembly 240208-M
Toggle Lock Plus No
Application - Checking Fixtures Excellent/High
Product Function Clamping
Application - Machining Poor/Low
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Service Environment Normal
Handle Horizonal
Application - Welding Fair/Medium
Duty Cycle 2
Product Type Standard
Accomodates Workpiece Variation No
Product Series 235
Application - Wood-Working Excellent/High
Standard Material Steel
Clamp Arm Style U-Bar
Flanged Washers 235106
Product Accessories
235906
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
240208-M
SPINDLE M10X60 WITH HEX JAM NUT
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
210440-Q
CROSSBAR ASSEMBLY FOR CLAMPS; 210-U-UB-UA-UBA.235-U-UB.237-U
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
235106
M10 FLANGED WASHER FOR "U" BAR CLAMPS (sold in packs of 10)
