Manual Clamping

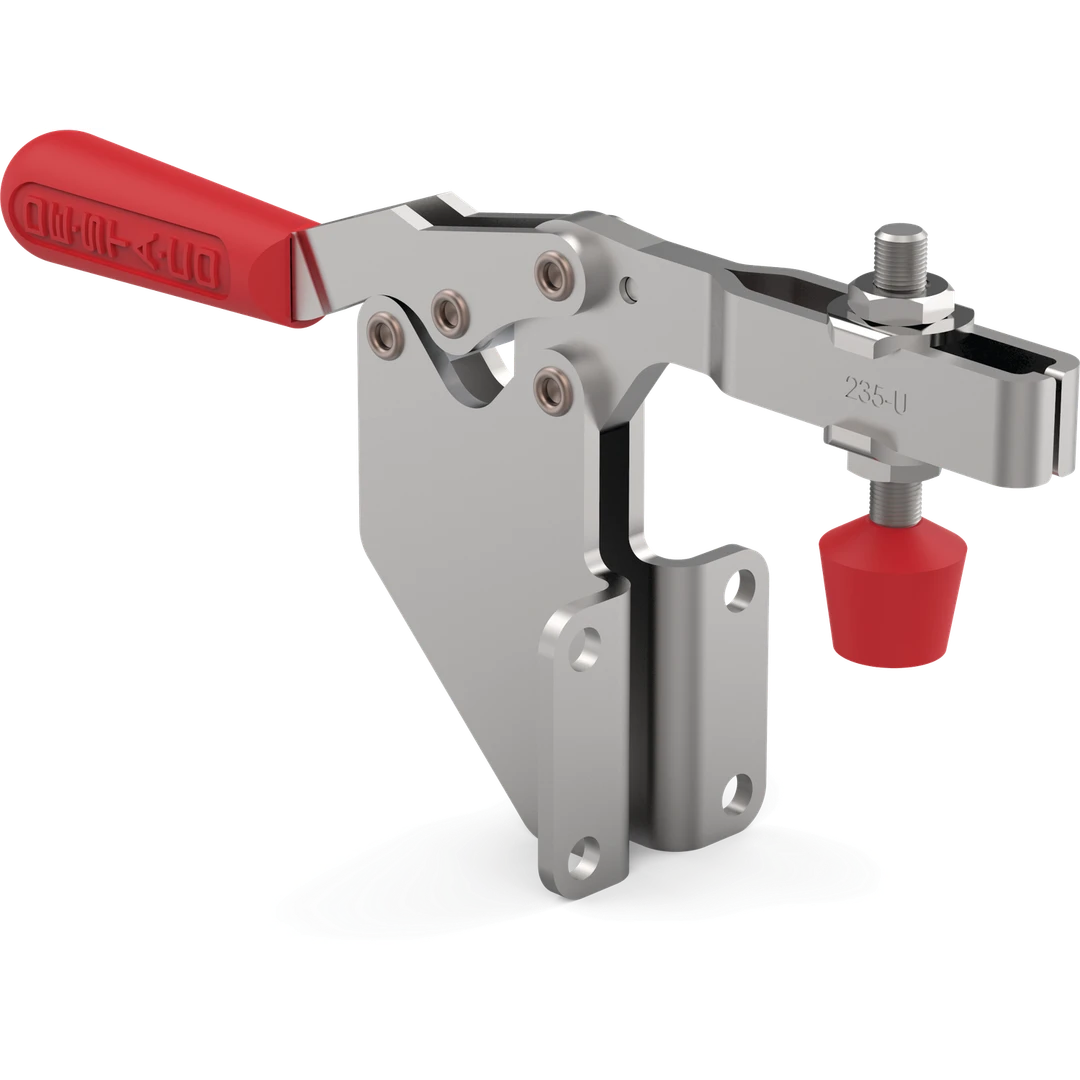

Low profile, horizontal hold down clamp with neoprene spindle, front mount base, and U-bar.

235-UF

Visit Product Series:
CAD

Product Details Unit View:
Clamp Arm Length (in) 4.17
Maximum Holding Capacity (lbf) 750.0
Weight (lb) 2.03
Height Under Clamp Arm (in) 1.69
Maxmum Holding Capacity (N) 3340.0
Clamp Arm Length (mm) 105.9
Weight (kg) 0.92
Height Under Clamp Arm (mm) 42.9
Handle Horizonal
Application - Assembly Excellent/High
Product Type Standard
Application - Wood-Working Excellent/High
Service Environment Normal
Product Function Clamping
Base Mounting Style Front Mount Base
Application - Welding Fair/Medium
Duty Cycle 2
Product Series 235
Toggle Lock Plus No
Application - Checking Fixtures Excellent/High
PublishedDate 1670534766000
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Clamp Bar Opening (+10°) (degrees) 92.0
Application - Food Processing Fair/Medium
Standard Material Steel
Application - Machining Poor/Low
Clamp Arm Style U-Bar
Handle Opening (+10°) 70.0
Spindle Assembly 2007208-M
Accomodates Workpiece Variation No
Application - Closures Excellent/High
Flanged Washers 507107
Product Accessories
235906
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
240208-M
SPINDLE M10X60 WITH HEX JAM NUT
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
210440-Q
CROSSBAR ASSEMBLY FOR CLAMPS; 210-U-UB-UA-UBA.235-U-UB.237-U
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
235106
M10 FLANGED WASHER FOR "U" BAR CLAMPS (sold in packs of 10)
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
