Manual Clamping

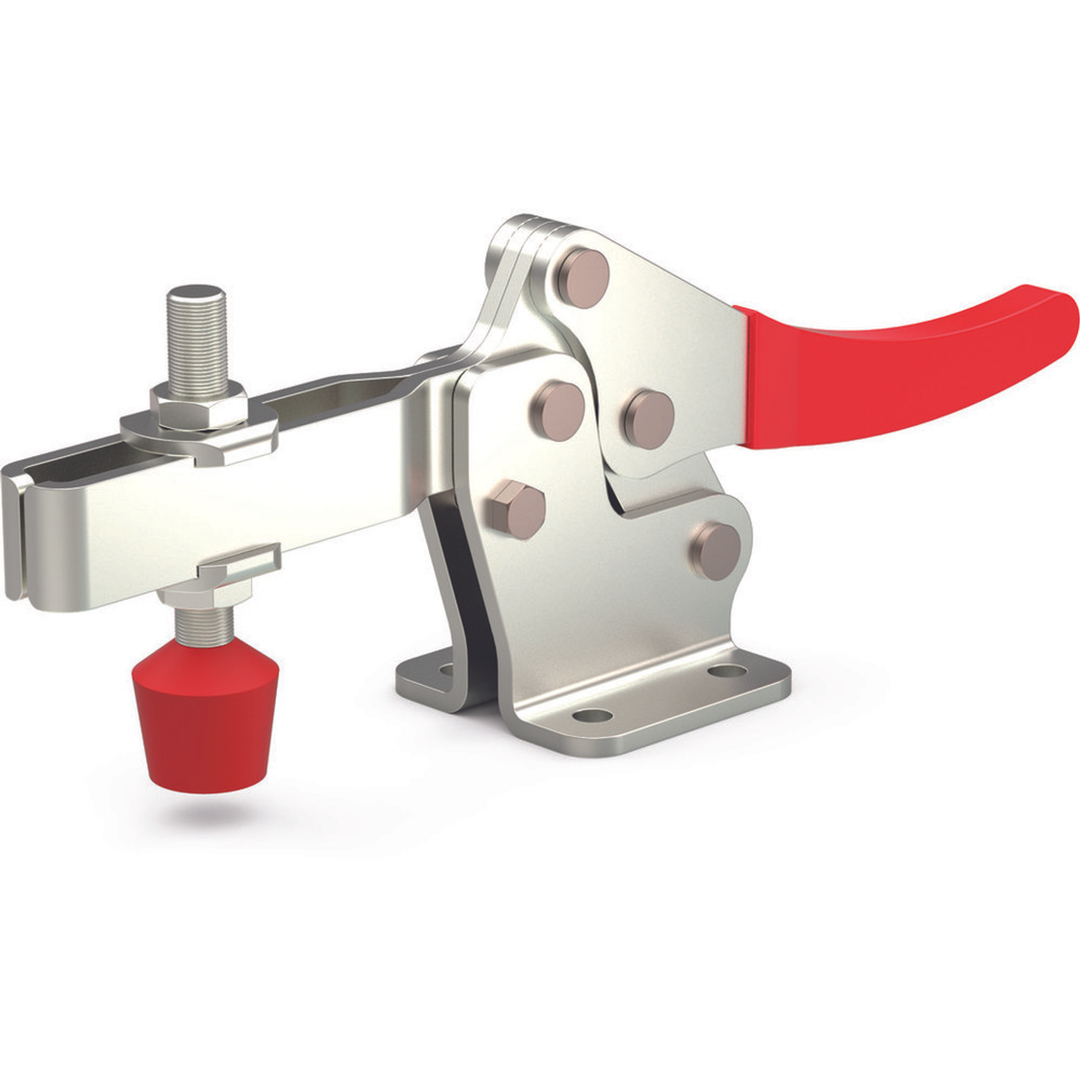

Low profile, horizontal hold down clamp with large hand clearance, flanged base, and U-bar.

245-U

Visit Product Series:
CAD

Product Details Unit View:
Height Under Clamp Arm (in) 2.19
Maximum Holding Capacity (lbf) 1000
Clamp Arm Length (in) 4.88
Weight (lb) 2.91
Maxmum Holding Capacity (N) 4450
Height Under Clamp Arm (mm) 55.6
Weight (kg) 1.32
Clamp Arm Length (mm) 124
Accomodates Workpiece Variation No
Service Environment Normal
Standard Material Steel
Base Mounting Style Flange
Product Function Clamping
Handle Horizonal
Clamp Arm Style U-Bar
Application - Checking Fixtures Fair/Medium
Duty Cycle 2
Flanged Washers 247109
Handle Opening (+10°) 74
Application - Assembly Excellent/High
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Application - Machining Fair/Medium
Application - Wood-Working Excellent/High
Clamp Bar Opening (+10°) (degrees) 105
Spindle Assembly 247208-M
Product Series 245
Application - Welding Fair/Medium
Application - Closures Fair/Medium
Product Type Standard
Toggle Lock Plus No
Application - Food Processing Not Recommended
Product Accessories
247208-M
SPINDLE M12X80 WITH HEX JAM NUT
