Manual Clamping

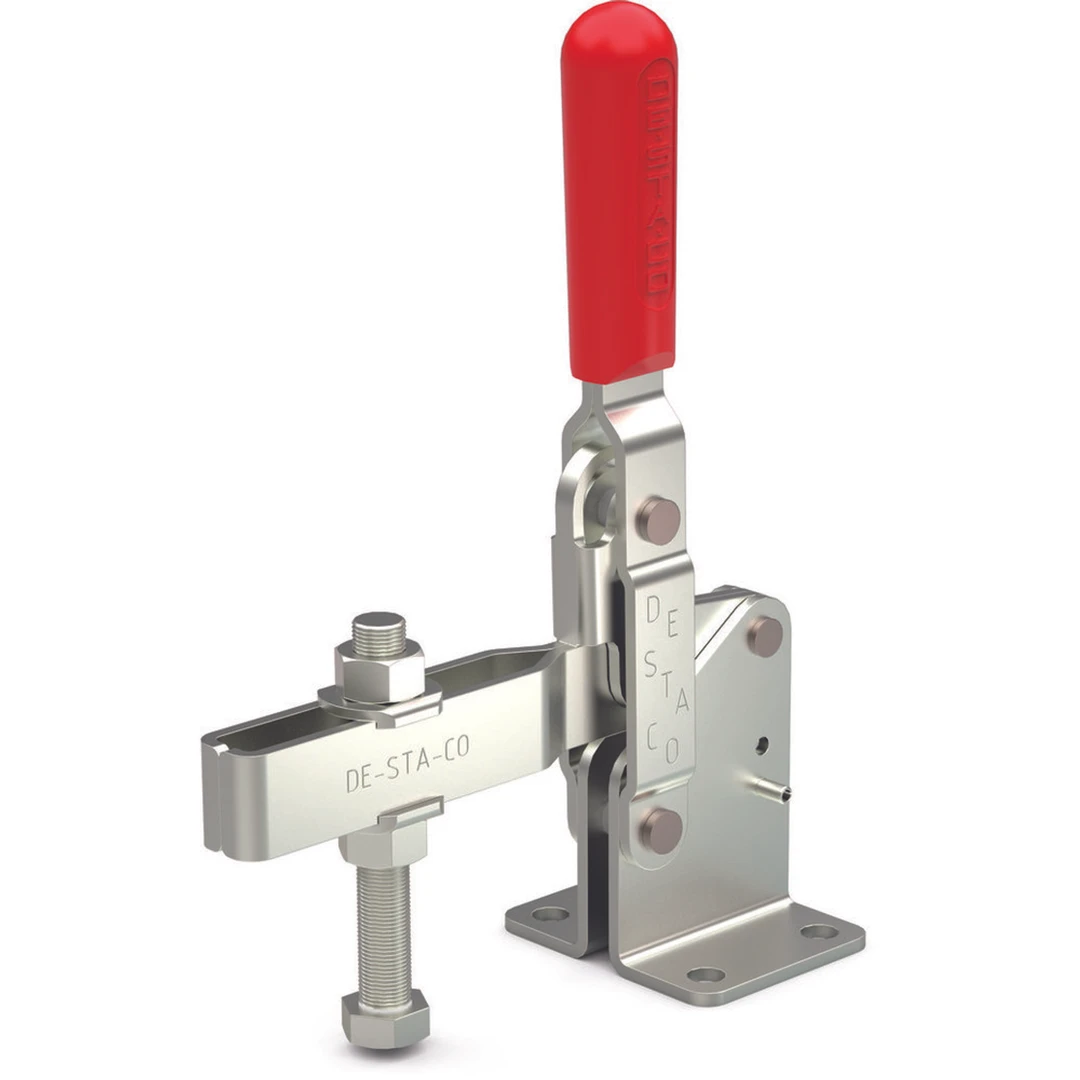

Vertical hold down clamp with hardened steel bushings, flanged base, and U-bar.

267-U

Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 1200.0
Height Under Clamp Arm (in) 3.08
Clamp Arm Length (in) 5.92
Weight (lb) 4.81
Maxmum Holding Capacity (N) 5340.0
Height Under Clamp Arm (mm) 78.2
Clamp Arm Length (mm) 150.4
Weight (kg) 2.18
Application - Assembly Excellent/High
Handle Vertical
Toggle Lock Plus No
Application - Machining Poor/Low
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Service Environment Normal
Application - Welding Fair/Medium
Duty Cycle 3
Product Function Clamping
PublishedDate 1677688212000
Application - Checking Fixtures Excellent/High
Flanged Washers 267102
Product Series 247/267
Product Type Standard
Base Mounting Style Flange
Clamp Arm Style U-Bar
Spindle Assembly 267203-M
Application - Food Processing Not Recommended
Standard Material Steel
Application - Wood-Working Fair/Medium
Accomodates Workpiece Variation No
Application - Closures Poor/Low
Handle Opening (+10°) 72.0
Clamp Bar Opening (+10°) (degrees) 140.0
Product Accessories
267102
M16 FLANGED WASHER FOR "U" BAR CLAMPS
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
267203-M
Spindel
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
