Manual Clamping

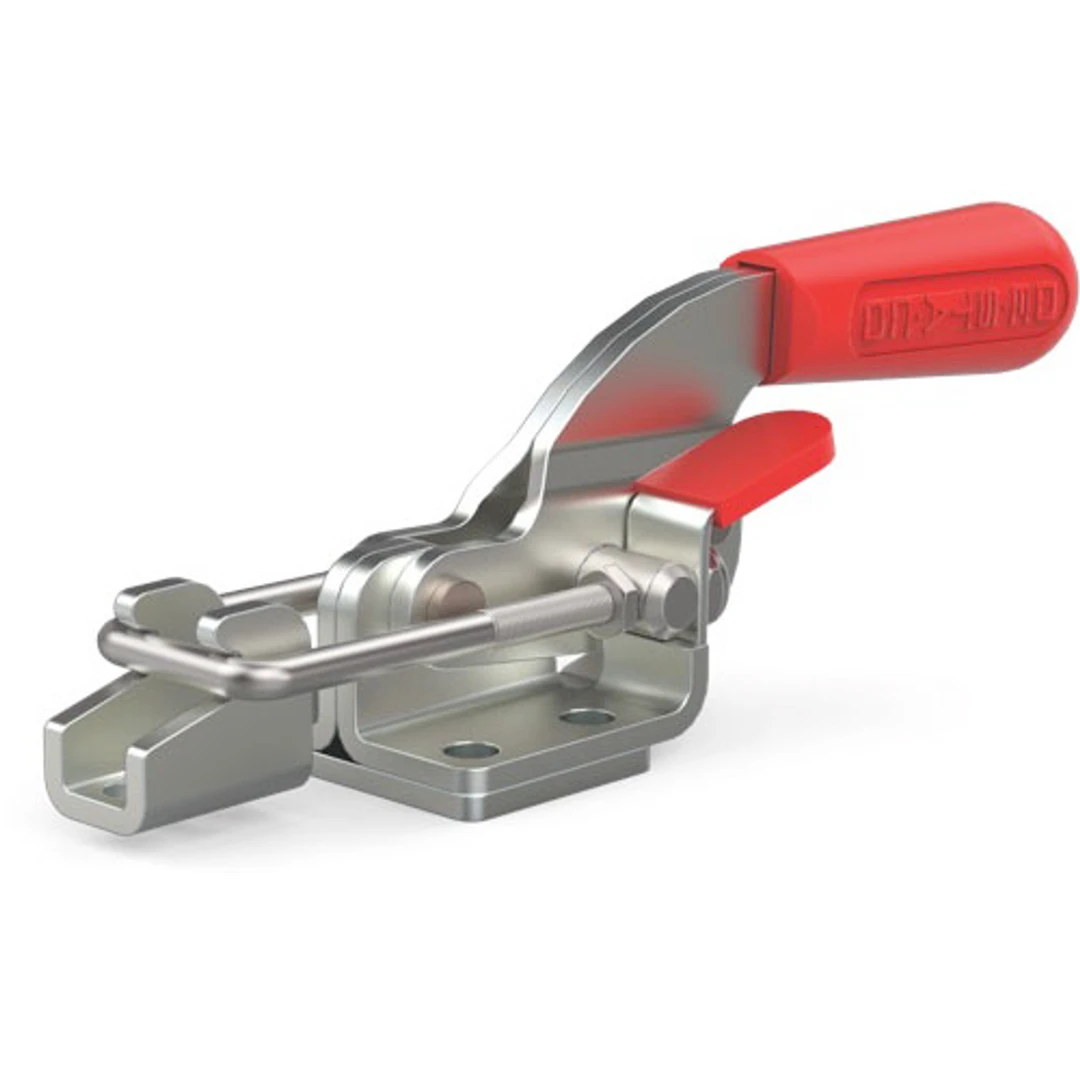

Destaco’s 331 Series pull action latch clamps are equipped with latch plate and patented thumb control lever for one handed operation.

331

Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
  • Patented Thumb Control Lever provides one-handed operation
  • Supplied with threaded U-hooks for easy adjustment
  • Latch plate included
Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 0.55
Drawing Movement without Thumb Control (in) 1.78
Max Hook Adjustment (in) 0.59
Maximum Holding Capacity (lbf) 700
Weight (kg) 0.25
Hook Adjustable Range (mm) 22.1
Maxmum Holding Capacity (N) 3200
Drawing Movement without Thumb Control (mm) 44.5
Drawing Movement without Thumb Control (mm) 44.5
Hook Type U-Hook (Horizontal)
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 32:1
Latch Plate 331005
Product Type Standard
Product Series 323/331/341
Standard Material Steel
Latch Plate Supplied? Yes
Toggle Lock Plus No
Hook Adjustable Range 22.1
Product Function Clamping
Base Mounting Style Flange
Replacement Hook Assembly 331215
