Manual Clamping

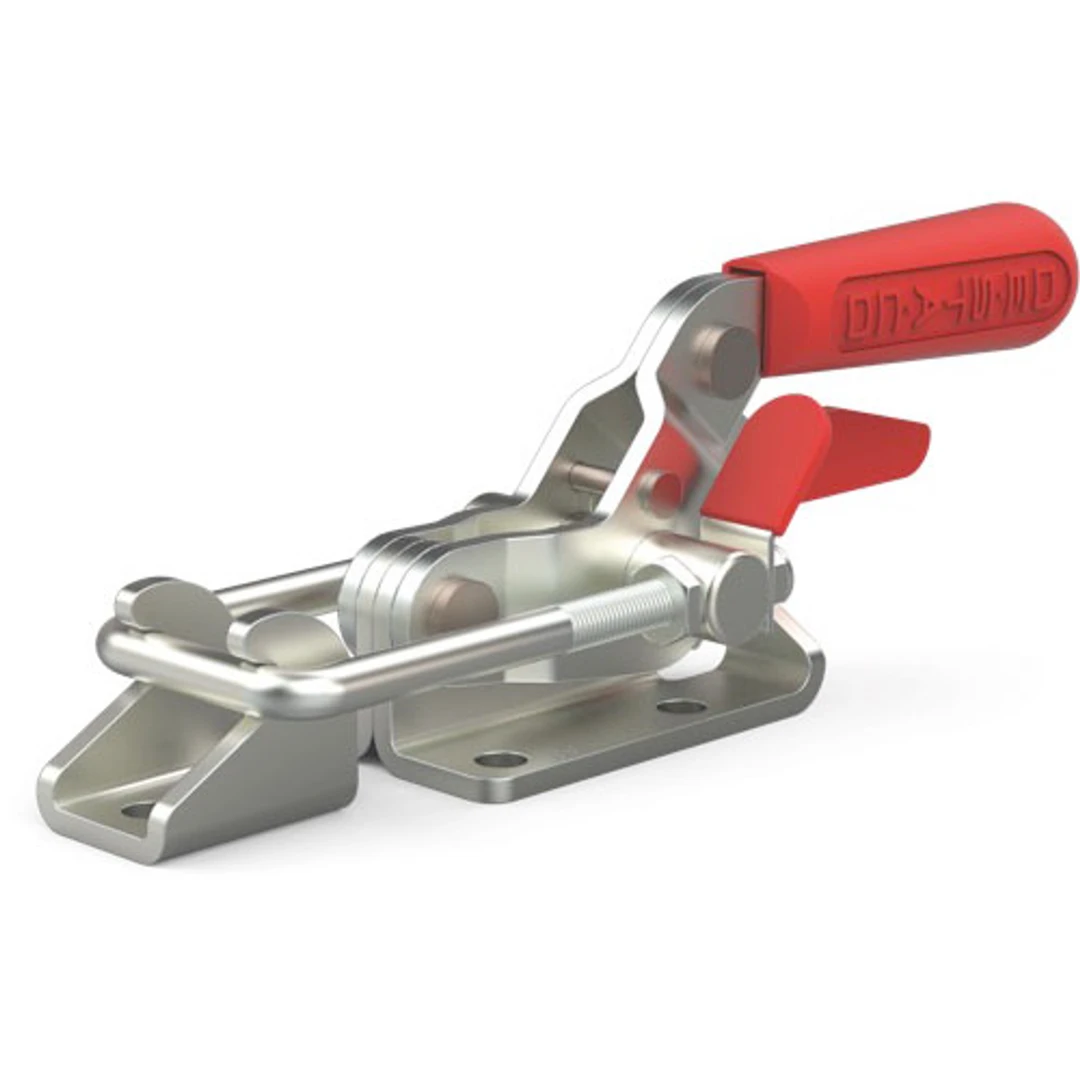

Destaco’s 341-R Series pull action latch clamps are equipped with latch plate and patented thumb control lever for one handed operation.

341-R

Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
  • Patented Thumb Control Lever provides one-handed operation
  • Supplied with threaded U-hooks for easy adjustment
  • Latch plate included
  • With Toggle Lock Plus
Visit Product Series:
CAD

Product Details Unit View:
Max Hook Adjustment (in) 0.76
Drawing Movement without Thumb Control (in) 3.08
Weight (lb) 1.43
Maximum Holding Capacity (lbf) 2000
Drawing Movement without Thumb Control (mm) 63.5
Drawing Movement without Thumb Control (mm) 63.5
Hook Adjustable Range (mm) 24.6
Maxmum Holding Capacity (N) 8900
Weight (kg) 0.65
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 29:1
Replacement Hook Assembly 341215
Product Type Standard
Product Function Clamping
Base Mounting Style Flange
Latch Plate Supplied? Yes
Toggle Lock Plus Yes
Hook Adjustable Range 24.6
Hook Type U-Hook (Horizontal)
Latch Plate 341005
Requires Articulation yes
Standard Material Steel
Product Series 323/331/341
