Manual Clamping

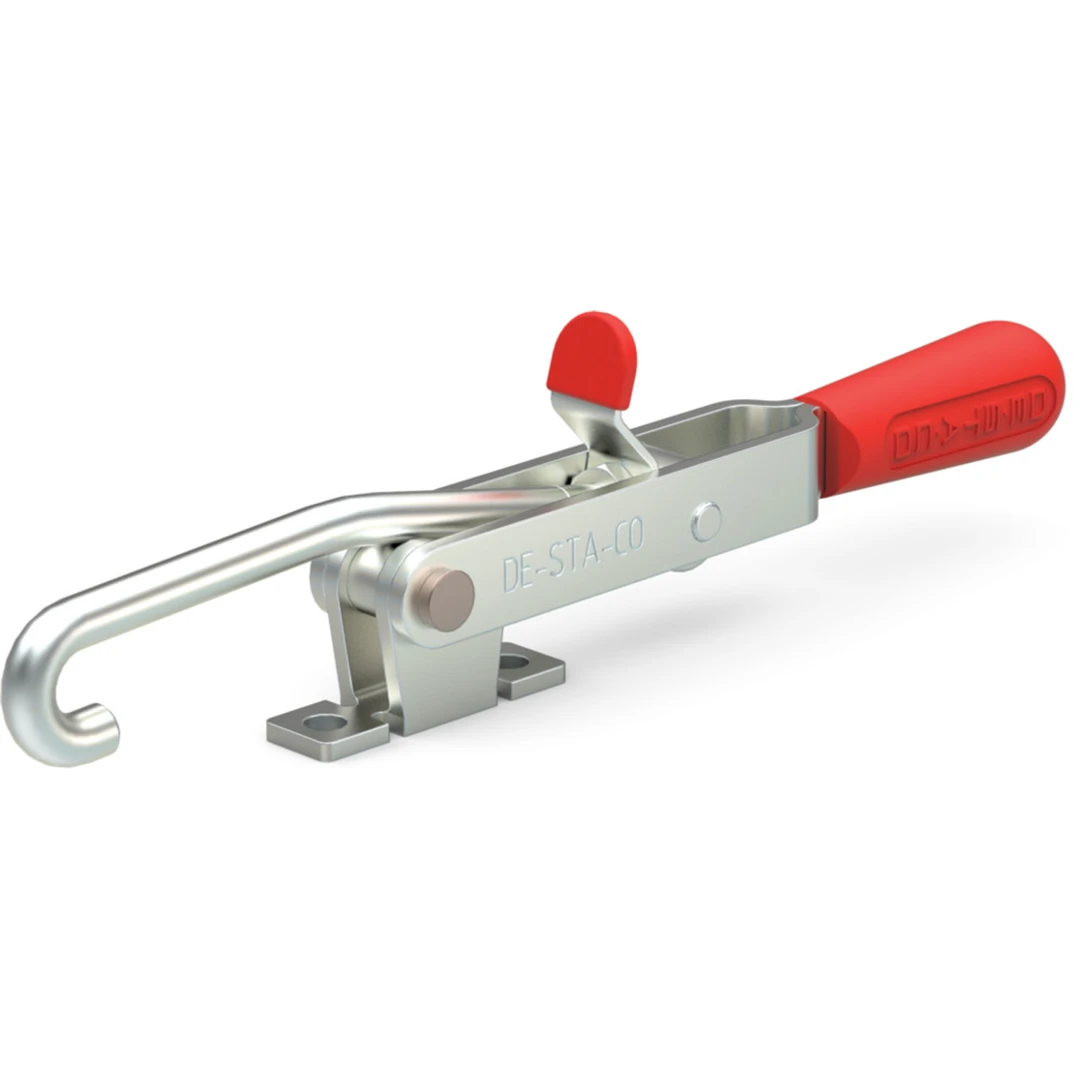

Destaco’s 351-B Series pull action latch clamps are equipped with patented thumb control lever for one handed operation, threaded J-hook, and narrow base.

351-B

Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 0.62
Maximum Holding Capacity (lbf) 375
Drawing Movement without Thumb Control (in) 4.17
Drawing Movement with Thumb Control 2.75
Max Hook Adjustment (in) 0.43
Maxmum Holding Capacity (N) 1670
Hook Adjustable Range (mm) 12.4
Drawing Movement with Thumb Control (in) 69.8
Drawing Movement without Thumb Control (mm) 101.6
Drawing Movement without Thumb Control (mm) 101.6
Weight (kg) 0.28
Product Type Standard
Hook Type J-Hook
Toggle Lock Plus No
Product Function Clamping
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Series 330/351/371/381
Hook Adjustable Range 12.4
Standard Material Steel
Replacement Hook Assembly 351215
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 21:1
Base Mounting Style Narrow Flange
