Manual Clamping

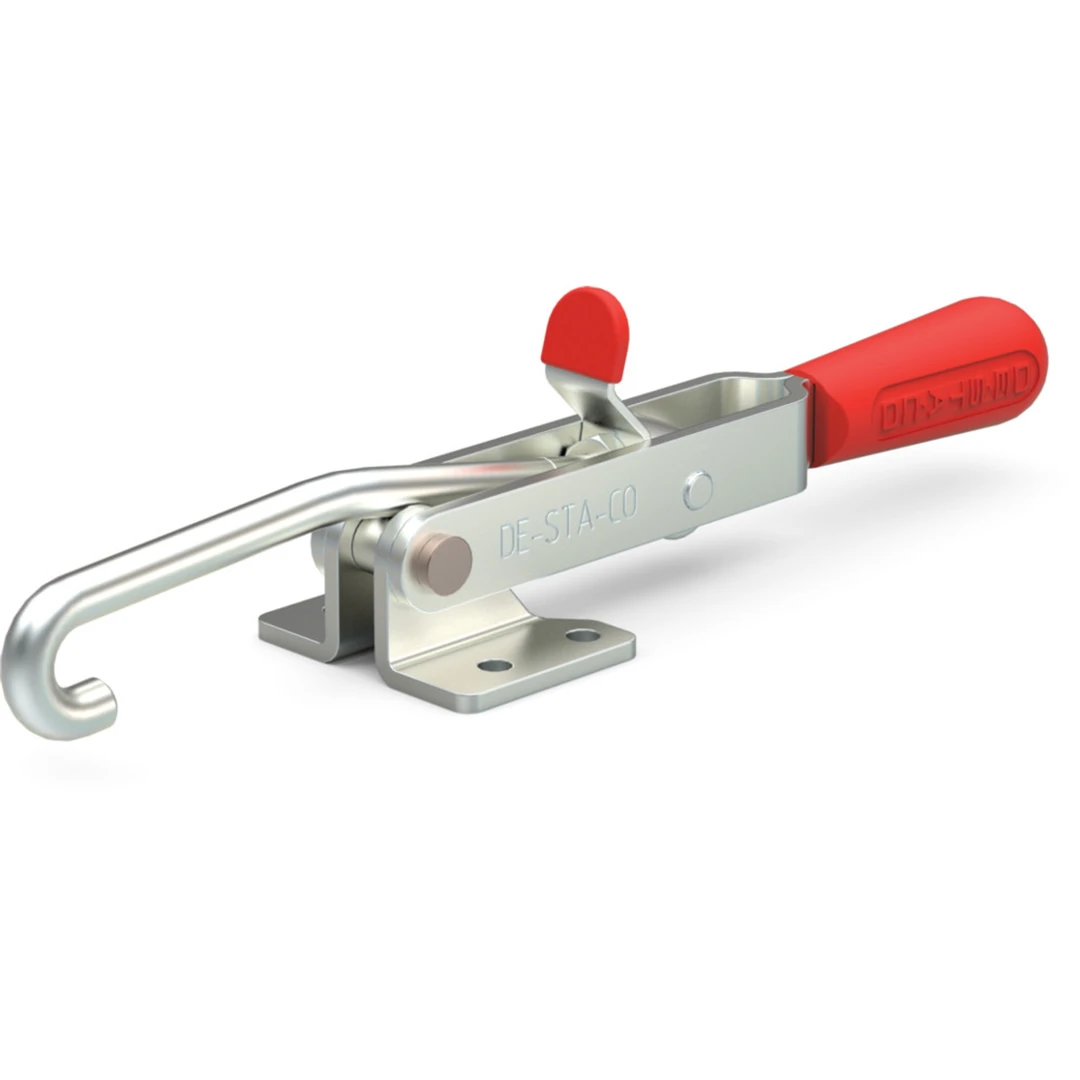

Destaco’s 351 Series pull action latch clamps are equipped with patented thumb control lever for one handed operation, threaded J-hook, and pull bar for easy adjustment.

351-SS

Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 450
Weight (lb) 0.62
Max Hook Adjustment (in) 0.43
Drawing Movement without Thumb Control (in) 4.17
Drawing Movement with Thumb Control 2.75
Drawing Movement without Thumb Control (mm) 101.6
Drawing Movement without Thumb Control (mm) 101.6
Hook Adjustable Range (mm) 12.4
Weight (kg) 0.28
Drawing Movement with Thumb Control (in) 69.8
Maxmum Holding Capacity (N) 2000
Standard Material Stainless Steel
Product Function Clamping
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 21:1
Replacement Hook Assembly 351915
Hook Type J-Hook
Product Type Standard
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Toggle Lock Plus No
Product Type Pull-Action Latch Clamps
Base Mounting Style Flange
Hook Adjustable Range 12.4
Product Series 330/351/371/381
