Manual Clamping
Destaco’s 528 Series heavy-duty, vertical hold down clamps feature hardened steel bushings at pivot points and a modifiable solid bar to suit your application requirements.

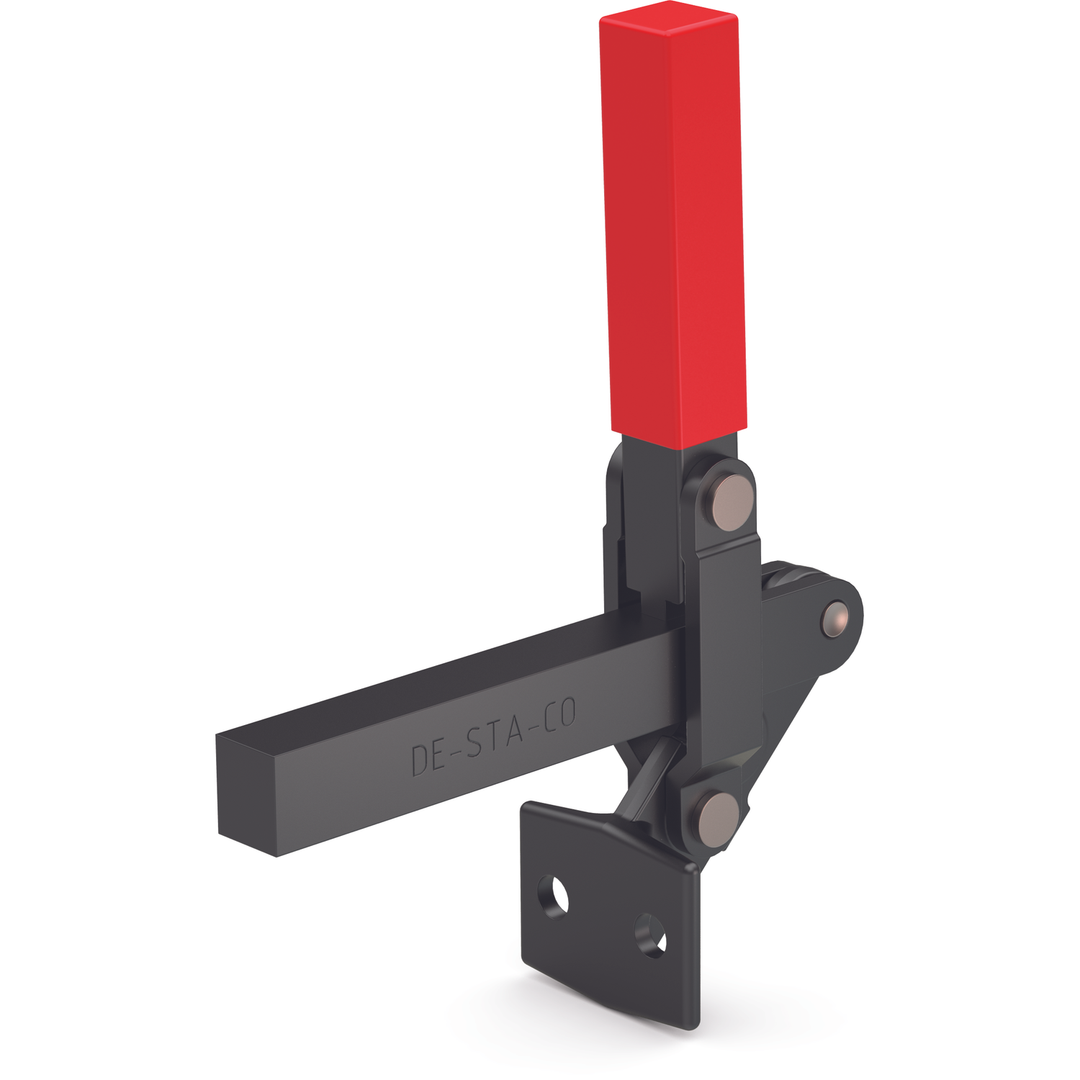

528-F

Vertical hold down clamp
  • 1000 lb. Capacity
  • Solid bar clamp arm may be can be modified to suit application requirements
  • Hardened steel bushings at pivot points for long life
Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 1000.0
Clamp Arm Length (in) 3.4
Height Under Clamp Arm (in) 2.06
Weight (lb) 2.5
Maxmum Holding Capacity (N) 4450.0
Weight (kg) 1.13
Height Under Clamp Arm (mm) 52.3
Clamp Arm Length (mm) 86.4
Application - Wood-Working Poor/Low
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Series 528
Service Environment Normal
Application - Closures Poor/Low
Product Function Clamping
Application - Assembly Excellent/High
Accomodates Workpiece Variation No
Application - Welding Excellent/High
Application - Machining Poor/Low
Base Mounting Style Front Mount Flange
Application - Checking Fixtures Excellent/High
Toggle Lock Plus No
Application - Food Processing Not Recommended
Clamp Arm Style Solid Bar
PublishedDate 1725539250000
Handle Vertical
Product Type Heavy Duty
Standard Material Steel
