Manual Clamping

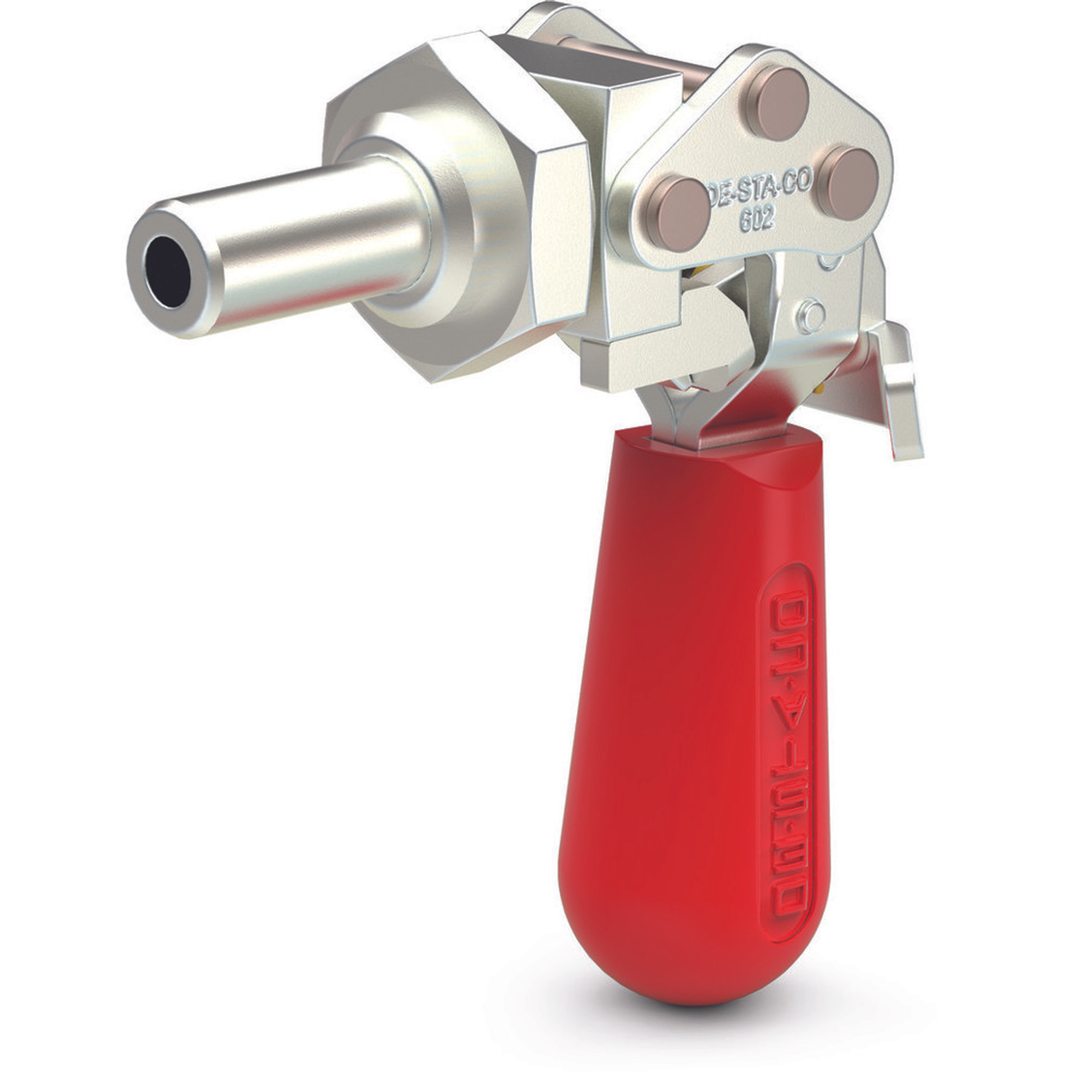

Destaco’s 602 Series straight line action clamps are versatile and compact models that feature a threaded body for through hole mounting.

602-SS

Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 0.11
Maximum Holding Capacity (lbf) 200
Plunger Travel (in) 0.75
Plunger Height (in) 0.75
Maxmum Holding Capacity (N) 900
Weight (kg) 0.05
Plunger Travel (mm) 19.1
Imperial or Metric Product Imperial
Plunger Height (mm) 19.1
Product Type Standard
Toggle Lock Plus No
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Type Straight Line Action Clamps
pdf_1 - DE https://media.destaco.com/assetbank-destaco/assetfile/2803.pdf
Plunger Round
pdf_1 - ZH https://media.destaco.com/assetbank-destaco/assetfile/2803.pdf
Product Series 602/604/624
Spindle Included? No
Mounting Nut (Supplied) 602905
Product Function Clamping
Plunger Thread 1/4-20
Spindle (Recommended) 202943
pdf_1 - FR https://media.destaco.com/assetbank-destaco/assetfile/2803.pdf
Standard Material Stainless Steel
Base Mounting Style Flange
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 31:1/28:1
Product Accessories
202943
Spindle stainless steel
