Manual Clamping
Destaco’s 604-MMR Series straight line action clamps with Toggle Lock Plus are versatile and compact models. They feature a threaded body for through hole mounting.

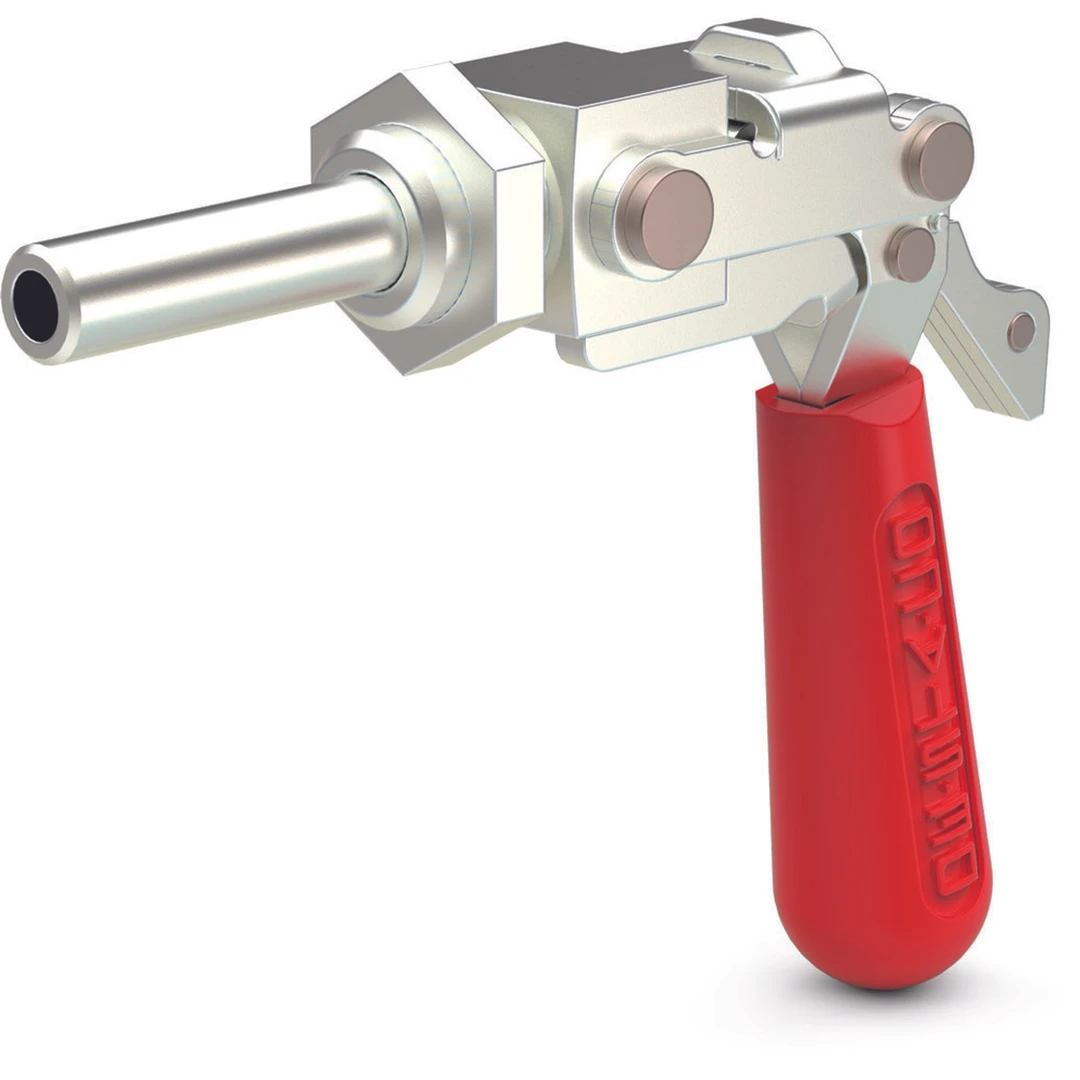

604-MMR

Through-hole mounted straight line action clamp with Toggle Lock Plus.
  • Versatile and compact
  • Locks in both extended and retracted position
  • Toggle Lock Plus
  • Ergonomic handle grip supplied
Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 300
Plunger Travel (in) 1.5
Plunger Height (in) 0.59
Weight (lb) 0.44
Plunger Travel (mm) 38.1
Weight (kg) 0.2
Plunger Height (mm) 15
Imperial or Metric Product Metric
Maxmum Holding Capacity (N) 1330
Spindle Included? No
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Series 602/604/624
Mounting Nut (Supplied) 606104-M
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 45:1/26:1
Plunger Thread M8
Base Mounting Style Flange
Standard Material Steel
Spindle (Recommended) 606104-M
Product Type Threaded Body
Plunger Round
Product Function Clamping
Toggle Lock Plus Yes
