Manual Clamping
Destaco’s 604 Series straight line action clamps are versatile and compact models. They feature a threaded body for through hole mounting.

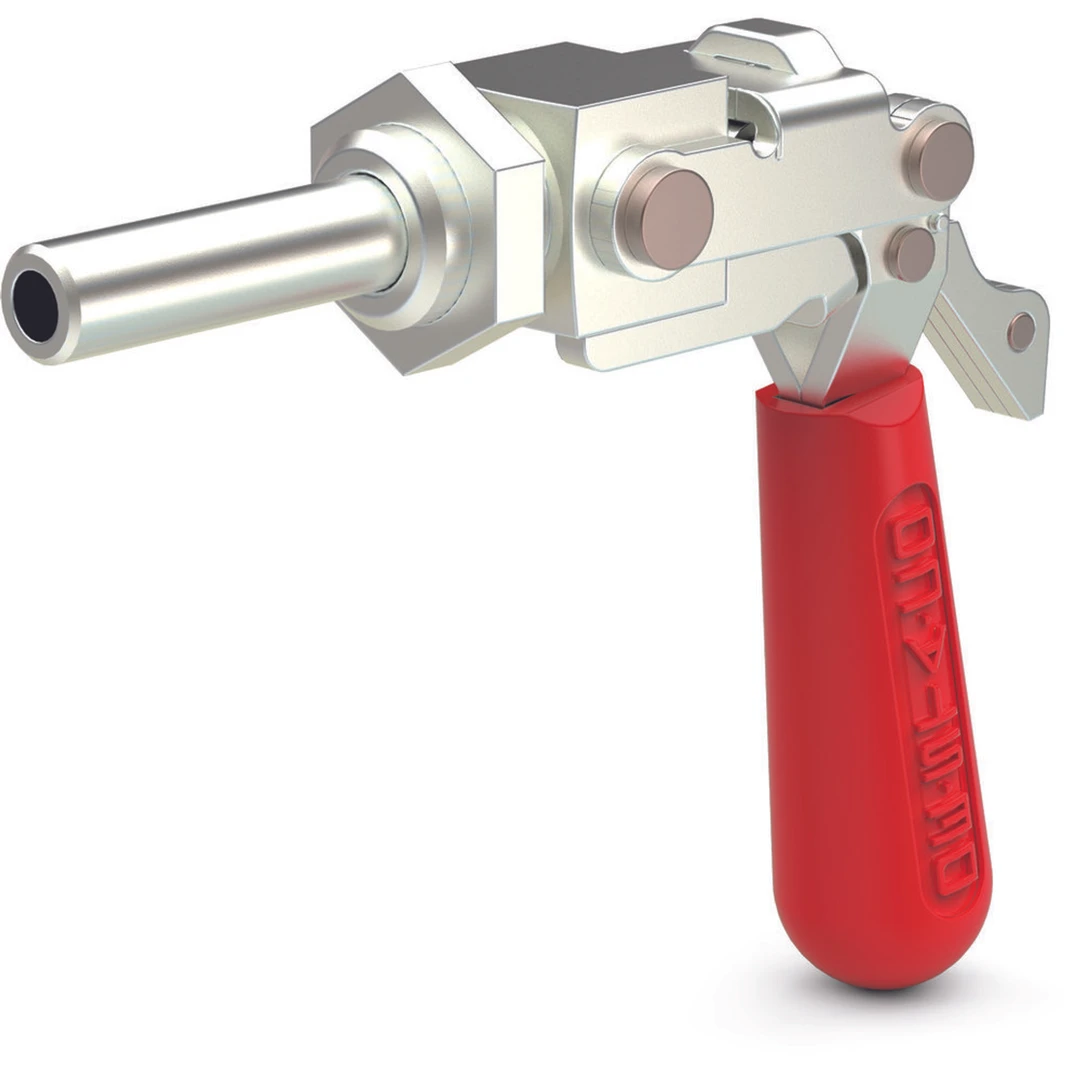

604-MMSS

Through-hole mounted straight line action clamp
  • Versatile and compact
  • Locks in both extended and retracted position
  • Stainless steel
  • Ergonomic handle grip supplied
Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 0.44
Plunger Travel (in) 1.5
Maximum Holding Capacity (lbf) 400
Plunger Height (in) 1.5
Plunger Height (mm) 38.1
Imperial or Metric Product Metric
Plunger Travel (mm) 38.1
Weight (kg) 0.2
Maxmum Holding Capacity (N) 1780
Plunger Thread M8
Standard Material Stainless Steel
Spindle (Recommended) 606904-M
Product Series 602/604/624
Mounting Nut (Supplied) 606904-M
Requires Articulation yes
Toggle Lock Plus No
Product Type Standard
Plunger Round
Product Function Clamping
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 45:1/26:1
Spindle Included? No
Product Type Straight Line Action Clamps
Base Mounting Style Flange
Product Accessories
207943-M
Spindel
