Manual Clamping
DESTACO - Workholding Equipment & Automation Tooling Solutions

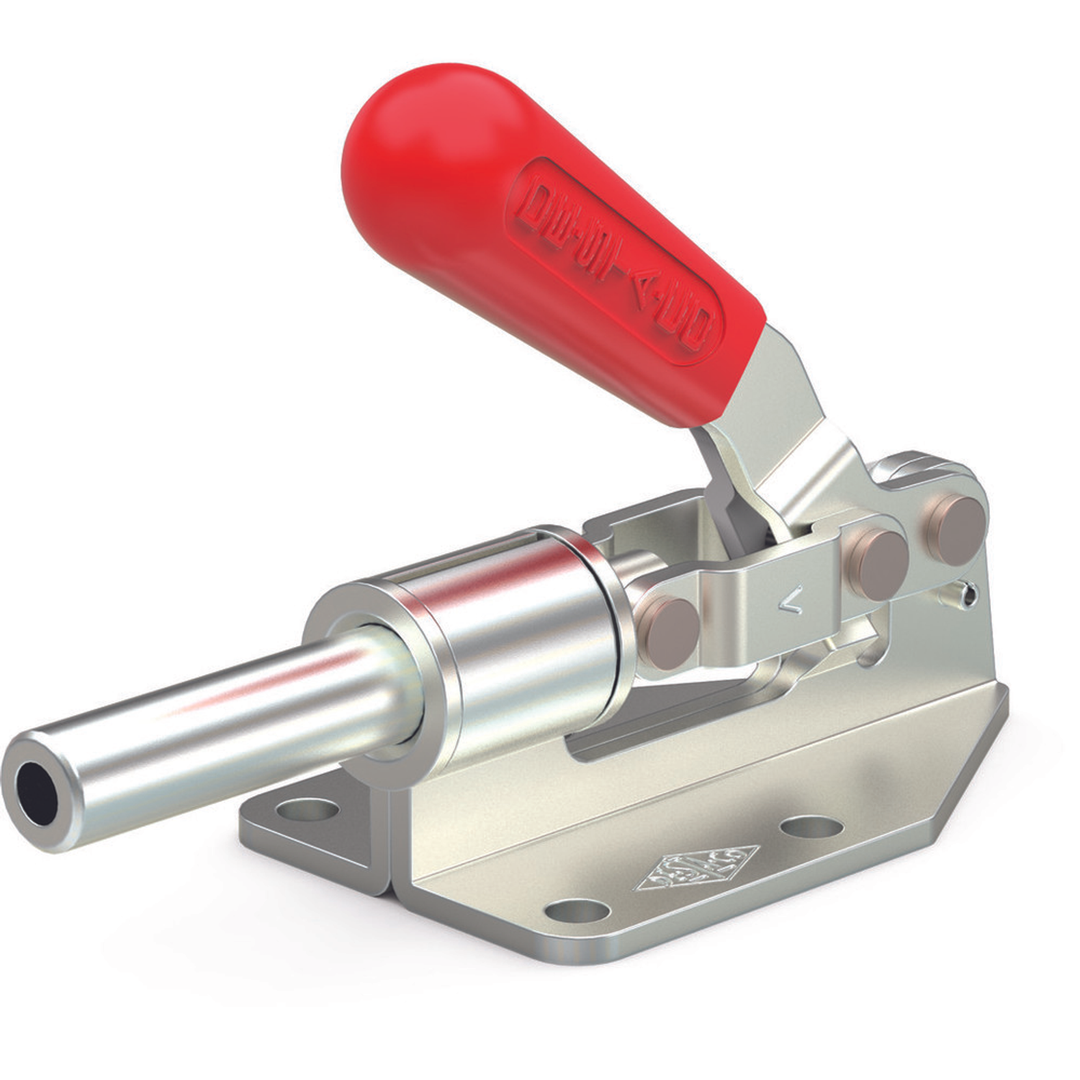

609
609
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Plunger Height (in)
0.97
Maximum Holding Capacity (lbf)
300.0
Weight (lb)
0.88
Plunger Travel (in)
1.25
Plunger Height (mm)
24.6
Maxmum Holding Capacity (N)
1330.0
Imperial or Metric Product
Imperial
Plunger Travel (mm)
31.8
Weight (kg)
0.4
Plunger Thread
5/16-18
Base Mounting Style
Flange
Product Type
Standard
Ef:Af Exerting Force: Applied Force ((pushing/pulling))
36:1/47:1
Product Function
Clamping
Product Series
609
Plunger
Round
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Toggle Lock Plus
No
PublishedDate
1675186274000
Spindle (Recommended)
207203
Standard Material
Steel
Spindle Included?
No
Product Accessories
207203
509207 SPINDLE WITH (2) 207115
