Manual Clamping
Destaco’s 610 Series straight line action clamps are designed for push/pull clamping and allow the handle to rotate then fall below the mounting plane to lock in retracted position.

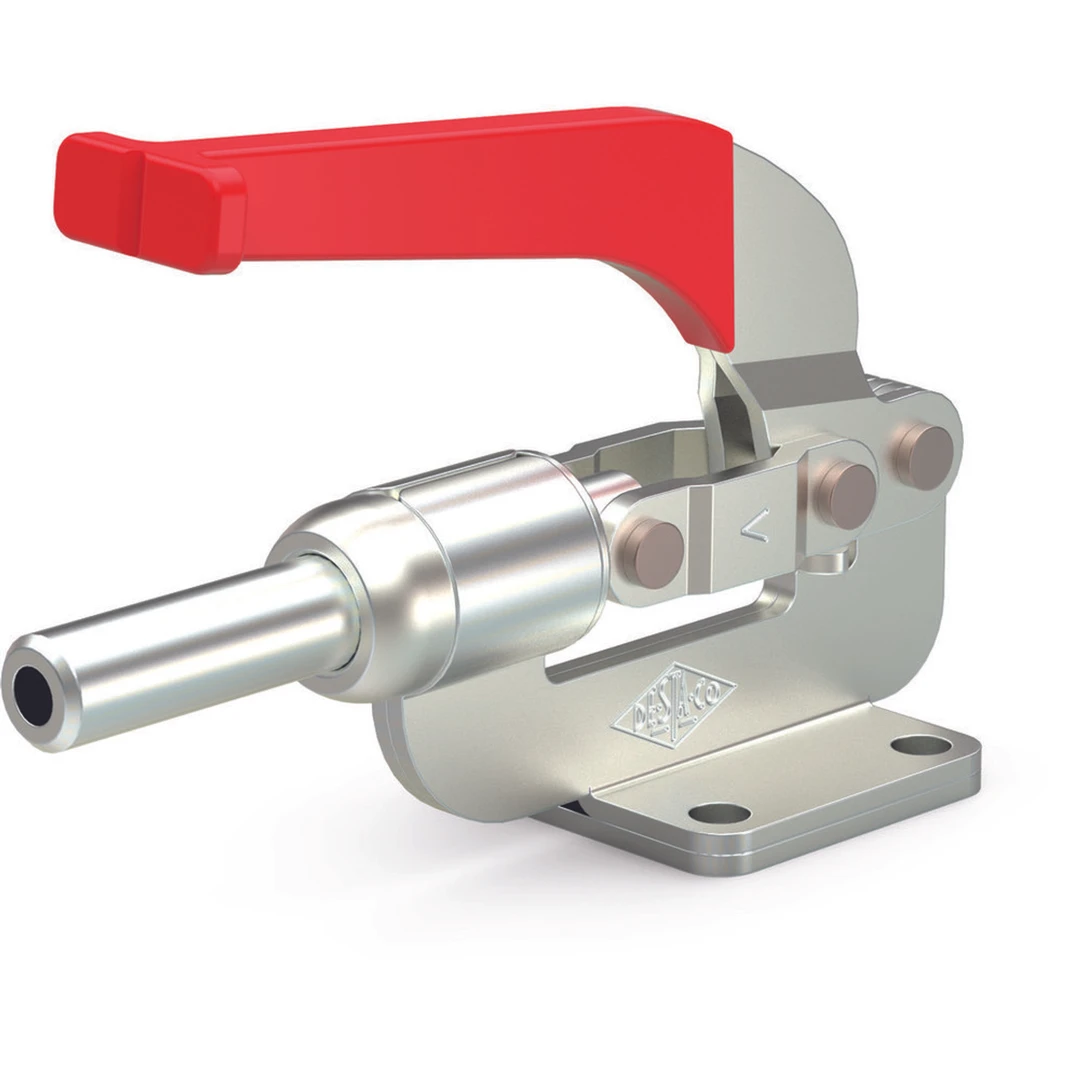

610-M

Lightweight stamped base has a bushing inserted for added stability for the plunger
  • Locks in both extended and retracted position
Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 800.0
Weight (lb) 1.7
Plunger Travel (in) 1.63
Plunger Height (in) 1.7
Maxmum Holding Capacity (N) 3560.0
Imperial or Metric Product Metric
Plunger Height (mm) 43.2
Plunger Travel (mm) 41.4
Weight (kg) 0.77
PublishedDate 1675186839000
Product Type Standard
Product Function Clamping
Standard Material Steel
Plunger Round
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 51:1/70:1
Toggle Lock Plus No
Plunger Thread M10
Base Mounting Style Flange
Spindle Included? No
Spindle (Recommended) 210203-M
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Series 610
Product Accessories
210203-M
Spindel
