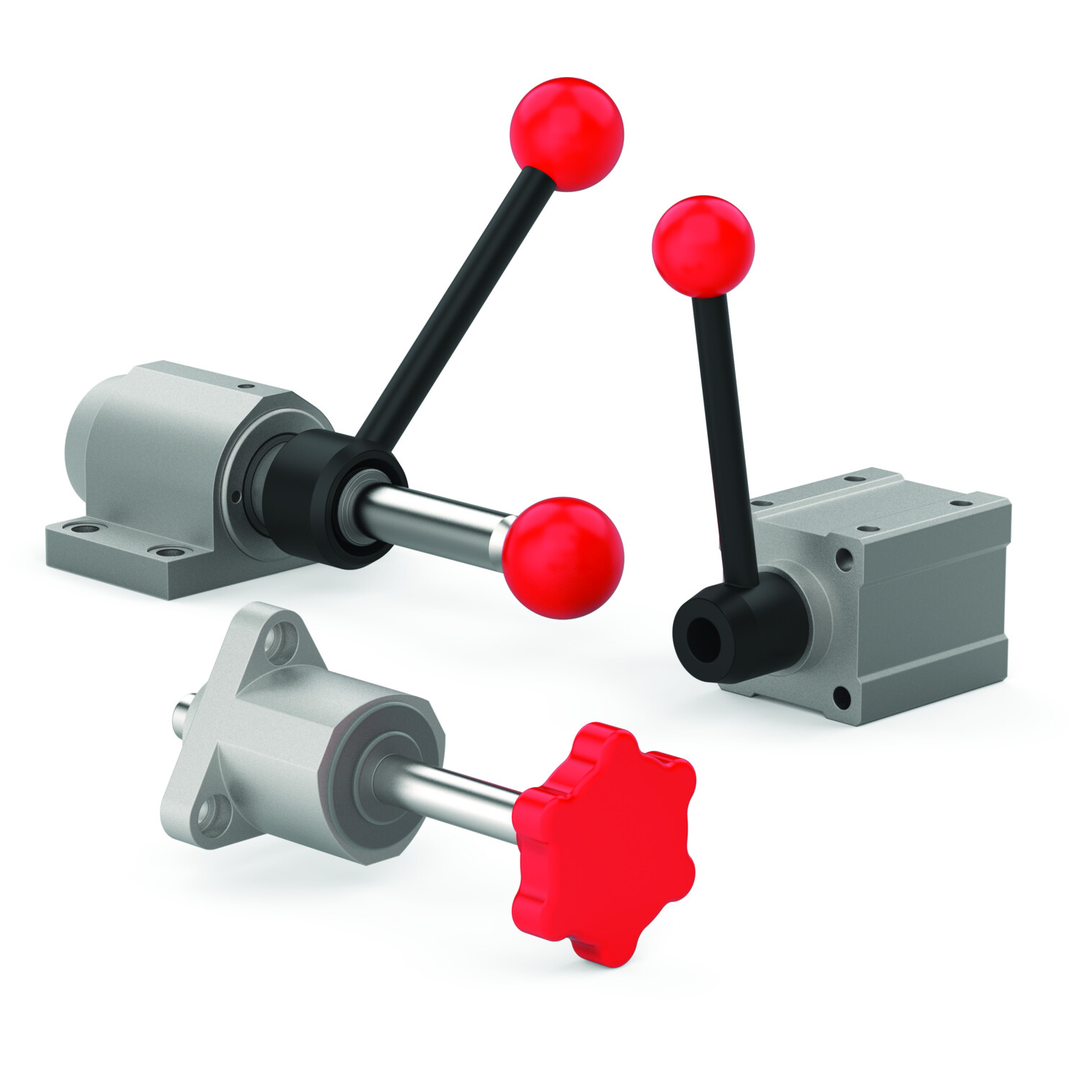

Destaco’s FL-120 Series of variable stroke, straight line action clamps are designed with front flange mount bodies.

FL-120

Variable stroke plunger clamp with front flange mount body
  • 600 lb. Capacity
  • Can accept plunger strokes of 100 mm - 300 mm
  • 3 mm clamping stroke
Visit Product Series:
CAD

Product Details Unit View:
Plunger Travel (in) 3.94|7.87|11.81
Maximum Holding Capacity (lbf) 675
Weight (lb) 1.07
Weight (kg) 0.45
Clamping Force (N) 100
Rapid Stroke (mm) 100|200|300
Maxmum Holding Capacity (N) 3000
Max Clamping Stroke (mm) 3
Plunger Travel (mm) 100|200|300
Operating Force (N) 1900
Base Mounting Style Flange
Operating Method Two-Hand/Plunger-Hand Lever
Requires Articulation yes
Product Series FL Series
Product Function Clamping
