Manual Clamping
Destaco’s FL-122-45 Series of variable stroke, straight line action clamps are designed for one-hand operation.

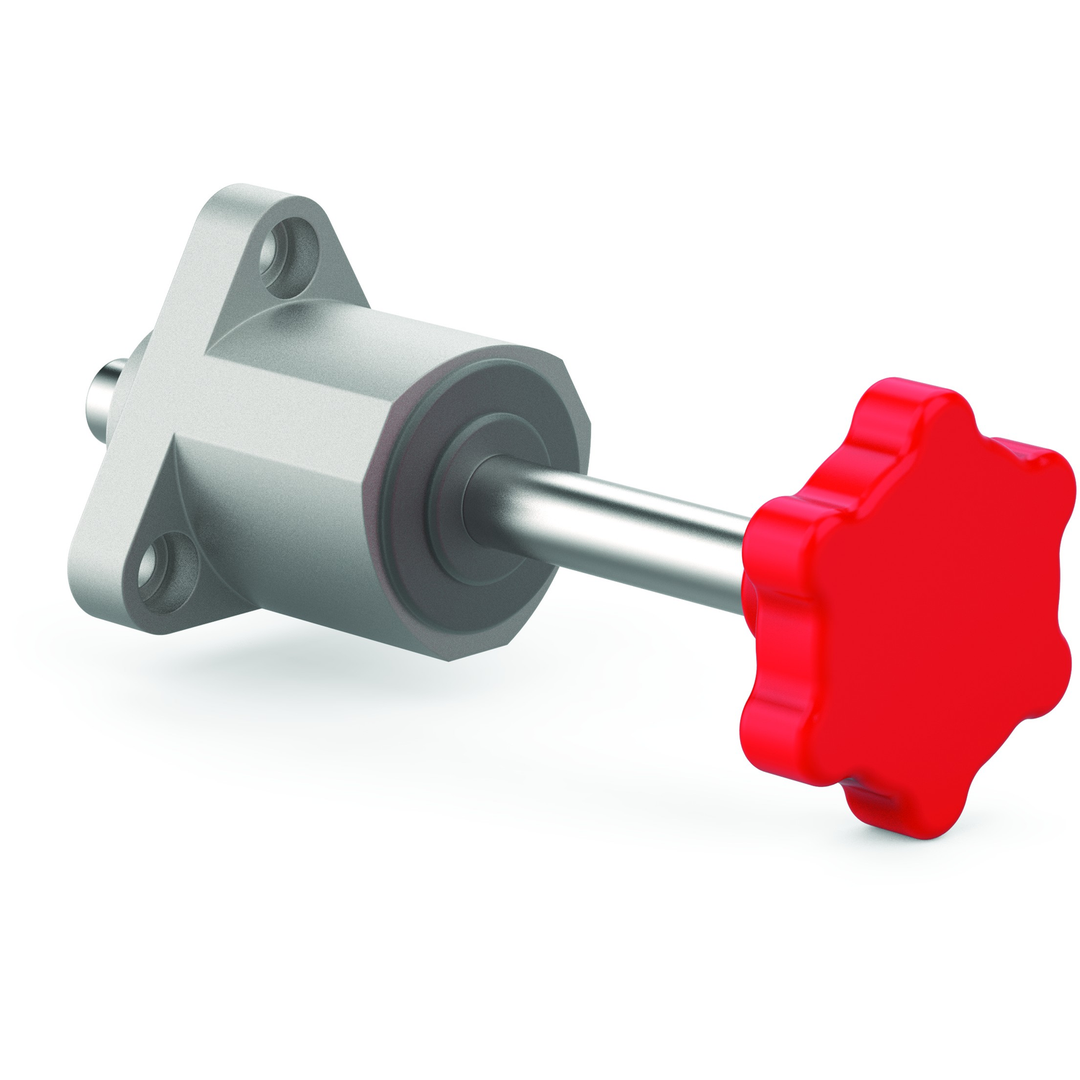

FL-122-45

Variable stroke plunger clamp with front flange mount body
  • 600 lb. Capacity
  • Fixed plunger stroke of 45 mm
  • 3 mm clamping stroke
Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 1.21
Maximum Holding Capacity (lbf) 675
Plunger Travel (in) 1.77
Weight (kg) 0.55
Clamping Force (N) 100
Rapid Stroke (mm) 40
Plunger Travel (mm) 45
Operating Force (N) 450
Maxmum Holding Capacity (N) 3000
Max Clamping Stroke (mm) 3
Product Series FL Series
Product Function Clamping
Operating Method One-Hand/Hand Wheel
Base Mounting Style Flange
