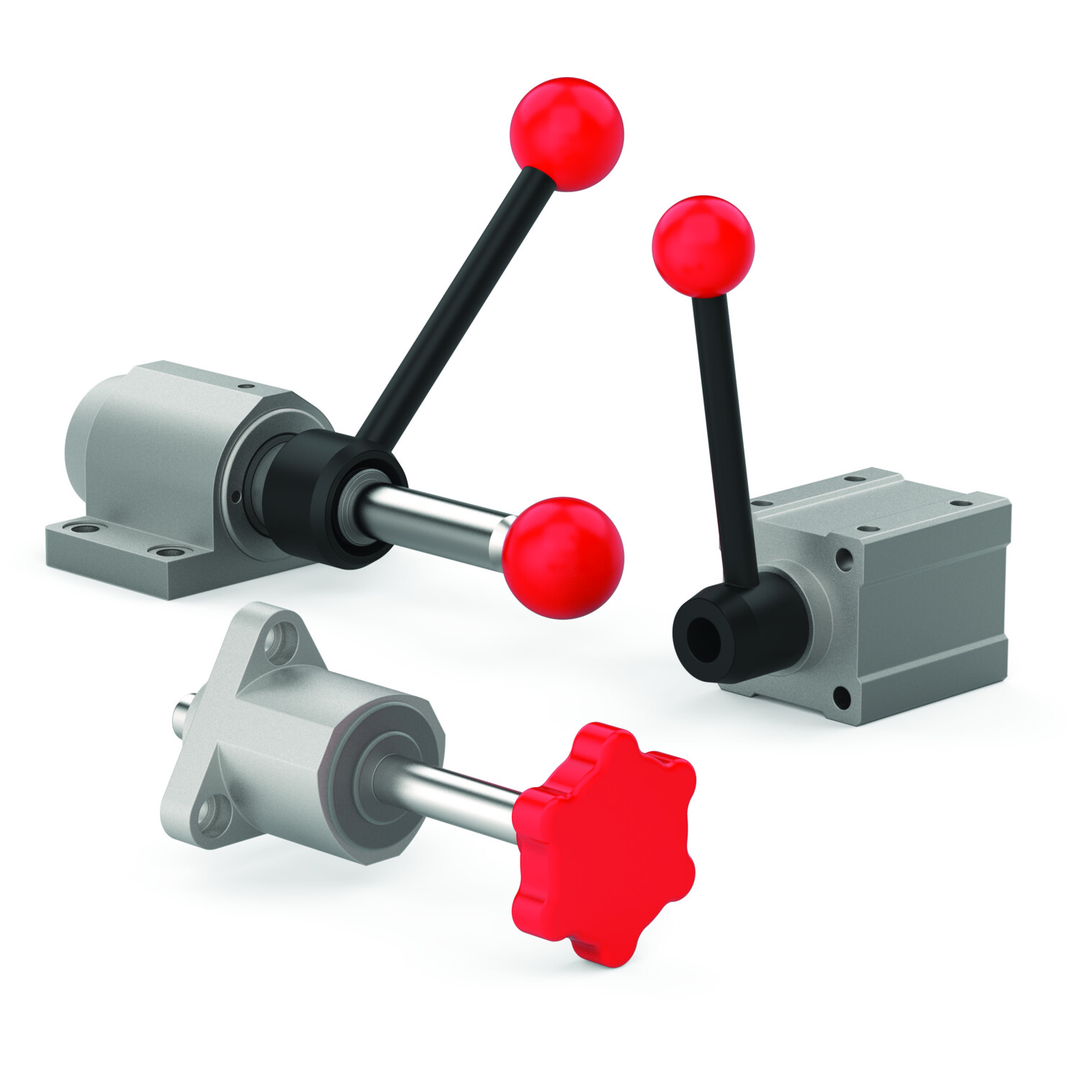

FL-160
FL-160
Variable stroke plunger clamp with front flange mount body
2,000 lb. Capacity
Can accept plunger strokes of 100 mm - 300 mm
4 mm clamping stroke
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Plunger Height (in)
1.1
Plunger Travel (in)
3.94|7.87|11.81
Clamping Range (in)
73.75
Weight (lb)
2.49
Maximum Holding Capacity (lbf)
2020
Maxmum Holding Capacity (N)
9000
Weight (kg)
1.13
Rapid Stroke (mm)
100|200|300
Plunger Travel (mm)
100|200|300
Max Clamping Stroke (mm)
4
Clamping Force (N)
100
Operating Force (N)
2500
Plunger Height (mm)
28
Base Mounting Style
Flange
Requires Articulation
yes
Product Function
Clamping
Product Series
FL Series
Operating Method
Two-Hand/Plunger-Hand Lever
Product Accessories
K508
K508 THRUST PAD: M5 THREAD
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
K816
K816 THRUST PAD: M8 THREAD
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
K1222
Swivel Thrust Pad - Clamp Accessories
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
K612
K612 THRUST PAD: M6 THRUNITD
