Manual Clamping
Destaco’s FL-162-60 Series of variable stroke, straight line action clamps are designed for one-hand operation with a hand wheel.

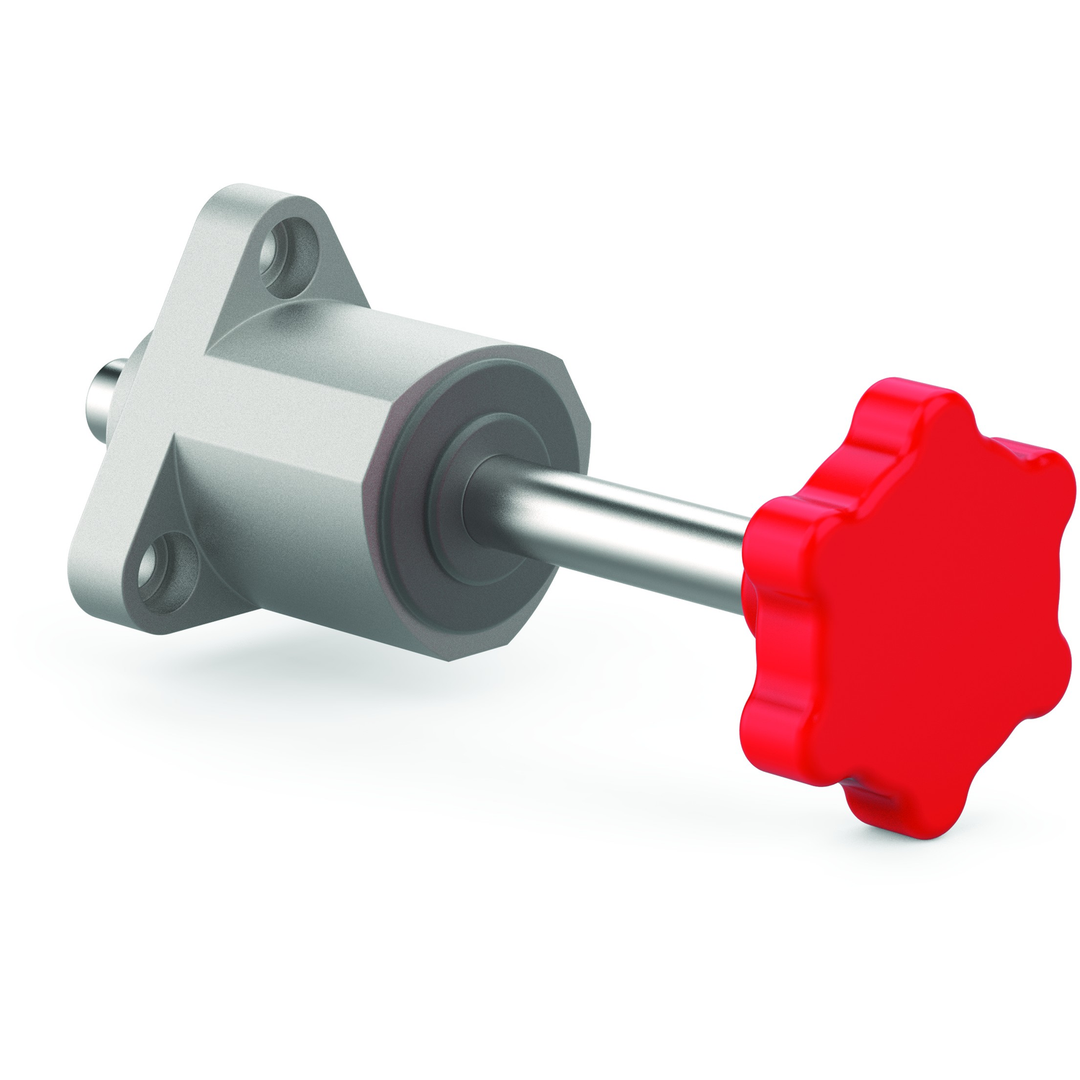

FL-162-60

Variable stroke plunger clamp with front flange mount body
  • 2000 lb. Capacity
  • Fixed plunger stroke of 60 mm
  • 4 mm clamping stroke
Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 2.92
Clamping Range (in) 73.75
Plunger Height (in) 1.1
Maximum Holding Capacity (lbf) 2020
Plunger Travel (in) 2.36
Plunger Height (mm) 28
Clamping Force (N) 100
Plunger Travel (mm) 60
Max Clamping Stroke (mm) 4
Operating Force (N) 850
Rapid Stroke (mm) 60
Maxmum Holding Capacity (N) 9000
Weight (kg) 1.325
Operating Method One-Hand/Hand Wheel
Product Function Clamping
Product Series FL Series
Base Mounting Style Flange
