Manual Clamping

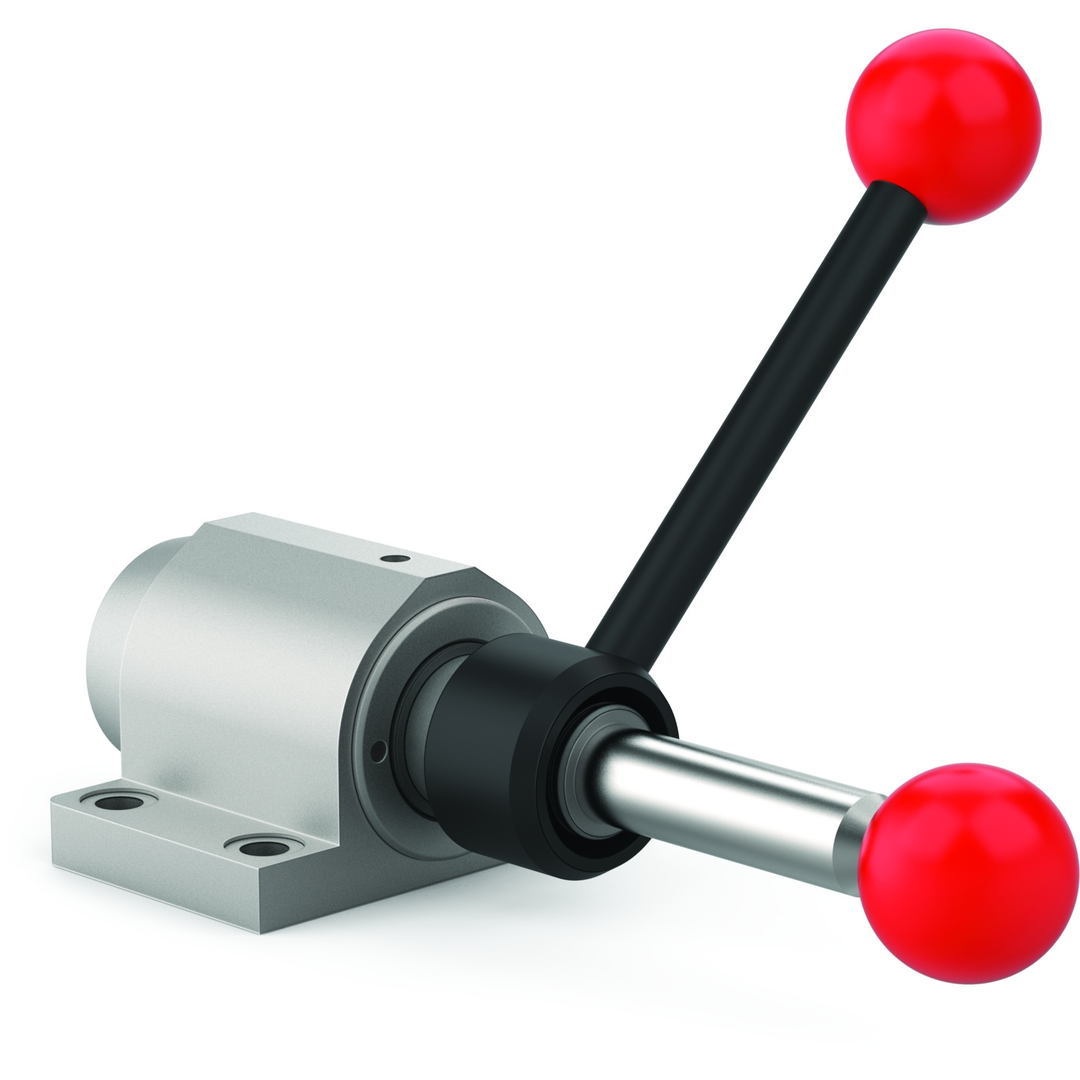

Destaco’s FO-120 Series of variable stroke, straight line action clamps are designed with a red handle and foot mount body.


Variable stroke plunger clamp with foot mount body
  • 600 lb. Capacity
  • Can accept plunger strokes of 100 mm - 300 mm
  • 3 mm clamping stroke
Visit Product Series:

Product Details Unit View:
Plunger Height (in) 0.79
Plunger Travel (in) 3.94|7.87|11.81
Maximum Holding Capacity (lbf) 675
Clamping Range (in) 73.75
Weight (lb) 1.19
Plunger Travel (mm) 100|200|300
Rapid Stroke (mm) 100|200|300
Clamping Force (N) 100
Plunger Height (mm) 20
Max Clamping Stroke (mm) 5
Operating Force (N) 1900
Maxmum Holding Capacity (N) 3000
Weight (kg) 0.54
Base Mounting Style Foot
Product Series FO Series
Operating Method Two-Hand/Plunger-Hand Lever
Requires Articulation yes
Product Function Clamping
