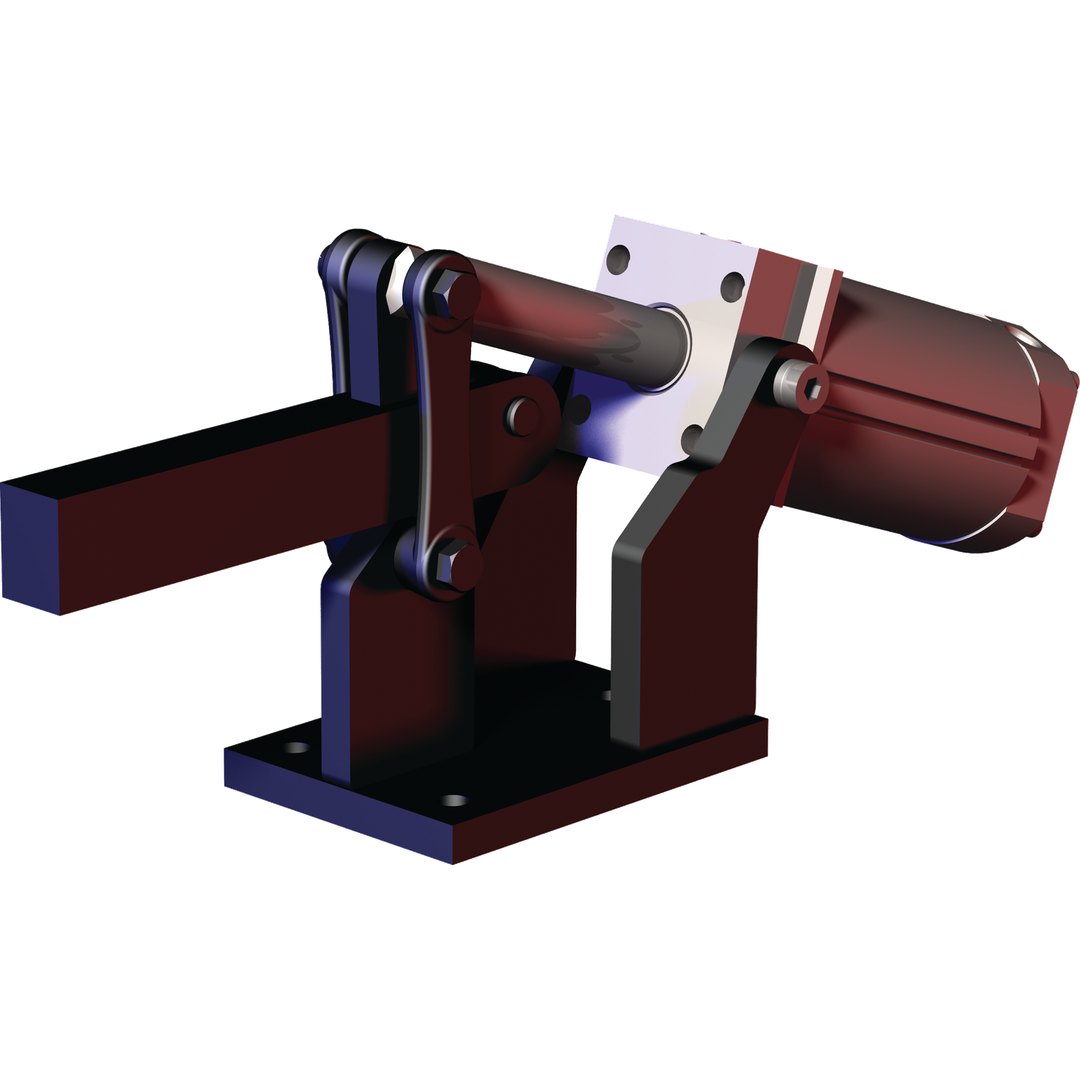

PNEUMATIC TOGGLE CLAMPS WITH LARGE CLAMPING ARM FOR ASSEMBLY & WELDING – 858 SERIES
DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Pneumatic Clamping
Pneumatic Toggle Clamp
Standard Pneumatic Clamps-858
858 - AIR/HYD HOLD DOWN CLAMP
858 - AIR/HYD HOLD DOWN CLAMP
Email product details
Visit Product Series:
Standard Pneumatic Clamps-858
Request Quote
Technical Details
CAD / Download
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
17.52
Weight (lb)
18
Application - Assembly
Excellent/High
Application - Welding
Excellent/High
Applications
Automated Clamping In Heavy Duty Welding and Assembly Fabrication
Product Application
CLAMPING
Technical Details
Air Consumption (ft³)
0.109
Arm Length (in)
4.81
Clamp Arm Height (in)
3.85
Clamp Arm Length (in)
4.81
Cylinder Bore (in)
2.48
Exerting Force (lbf)
1530.0
Height Under Clamp Arm (in)
3.85
Maximum Holding Capacity (lbf)
4000
Air Port size
1/4 NPT
Operating Temperature
-10° to 90°C (-14° to 194° F)
Show More
Product Information
Accessories
810169|8EA-109-1|CABL-010|CABL-013|858-LC|858CYL|850450-63-1-00
Accomodates Workpiece Variation
No
Base Mounting Style
Flange
Brand
DESTACO
Clamp Arm Style
solid
Handle
Horizontal
Product Type
Standard Pneumatic Clamp
Replacement Seal Kit
850450-63-1-00
Spindle Included?
No
Tip Material
NA
