Manual Clamping

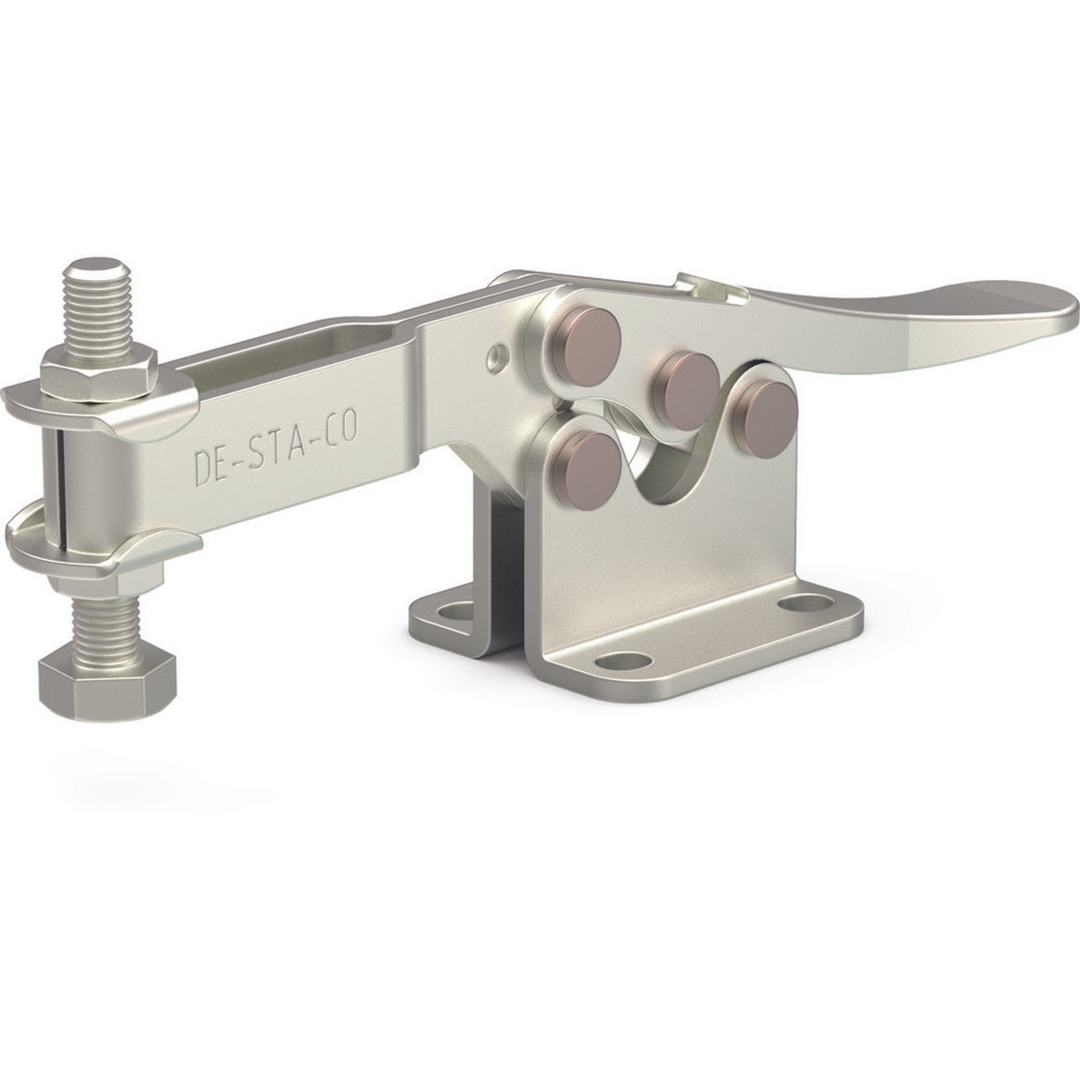

Low profile, stainless steel horizontal hold down clamp with U-bar and flanged base.

215-USS

Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 0.33
Clamp Arm Length (in) 2.25
Height Under Clamp Arm (in) 1
Maximum Holding Capacity (lbf) 250
Height Under Clamp Arm (mm) 25.4
Weight (kg) 0.15
Maxmum Holding Capacity (N) 1110
Clamp Arm Length (mm) 57.2
Product Type Standard
Application - Welding Fair/Medium
Duty Cycle 2
Application - Closures Excellent/High
Application - Machining Poor/Low
Product Series 215
Product Type Horizontal Hold-Down Clamps
Service Environment Normal
Application - Assembly Excellent/High
Application - Food Processing Fair/Medium
Application - Wood-Working Excellent/High
Base Mounting Style Flange
Standard Material Stainless Steel
Application - Checking Fixtures Excellent/High
Clamp Bar Opening (+10°) (degrees) 87
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Spindle Assembly 202943
Clamp Arm Style U-Bar
Accomodates Workpiece Variation No
Flanged Washers 215105
Product Function Clamping
Handle Opening (+10°) 78
Handle Horizonal
Toggle Lock Plus No
Product Accessories
205943-M
Spindle, stainless steel
