Manual Clamping
DESTACO - Workholding Equipment & Automation Tooling Solutions

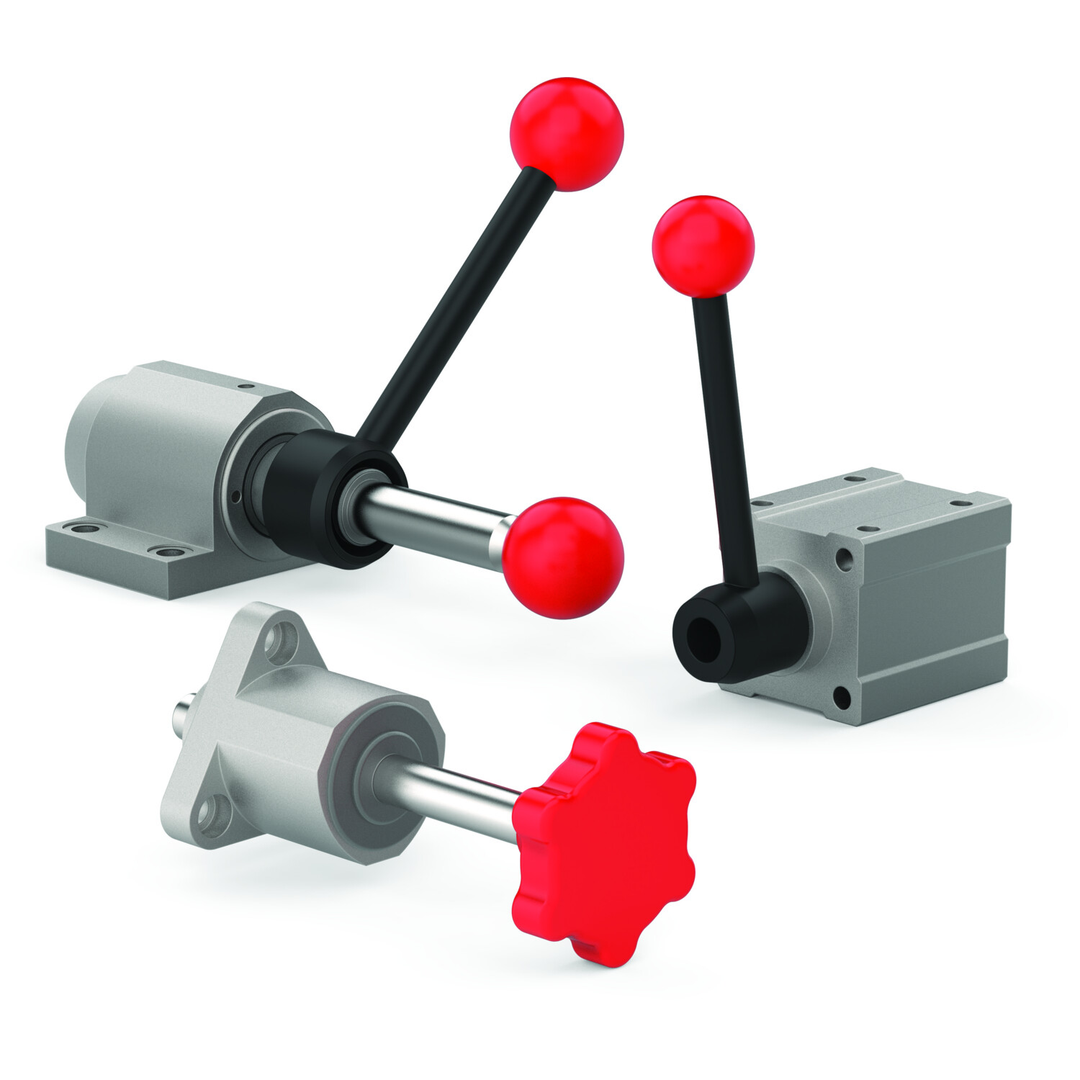

G-121-45
G-121-45
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Maximum Holding Capacity (lbf)
675
Weight (lb)
1.31
Plunger Travel (in)
1.77
Clamping Range (in)
73.75
Plunger Travel (mm)
45
Rapid Stroke (mm)
45
Clamping Force (N)
100
Max Clamping Stroke (mm)
3
Weight (kg)
0.595
Operating Force (N)
1900
Maxmum Holding Capacity (N)
3000
Product Series
G Series
Product Function
Clamping
Operating Method
One Hand/Hand Lever
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Base Mounting Style
Through Hole
Product Accessories
K508
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
K816
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
K1222
Add to Quote
Item added to your cart successfully.
Item failed to add in the cart.
K612
